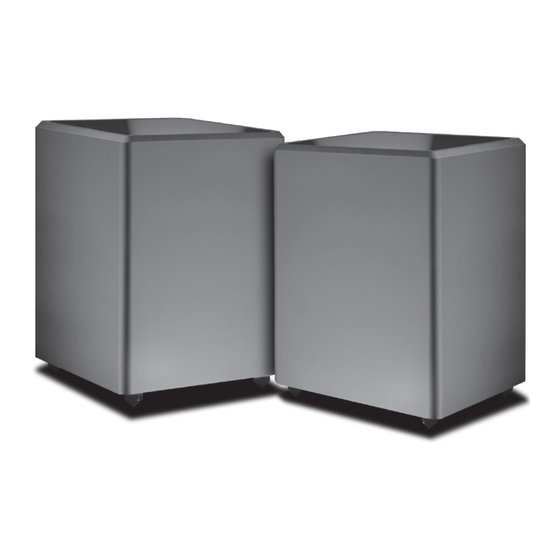

- Page 1 Variable Tuning LFM Series Low Frequency Modules LFM-1 EX and LFM-1 Plus Owner’s Manual Version 1.0...
-
Page 2: Please Read First
If water or any metal object, such as a paper clip, coin or a staple, accidentally falls inside the unit, disconnect it from the AC power source immediately, and contact Outlaw Audio for further instructions. -
Page 3: Table Of Contents
11 The Outlaw Audio 0-Day Satisfaction Guarantee 11 Outlaw Audio Limited Warranty The contents of this manual are Copyright © 2007 by Outlaw Audio, LLC, and may not be duplicated or reproduced by any means, whether physical, electronic or otherwise without prior written consent from Outlaw Audio. -
Page 4: Before You Begin
Enables the LFM’s signal sense mode so that the unit turns on automatically when an audio signal is present. X-OVER Switch When an external crossover such as the Outlaw Audio ICBM is used, use this switch to bypass the LFM’s internal crossover. CROSSOVER FREQUENCY Control Sets the frequency of the built in variable low pass crossover. -
Page 5: Subwoofers, Bass And Overall System Performance
To connect an LFM Series Subwoofer you will need either a single audio interconnect cable (in the case of systems with a subwoofer output) or ad- ditional speaker wire. We recommend the Outlaw Audio PCA SUB cable, but any high quality, shielded audio interconnect will work properly. - Page 6 OUT – TAPE – IN AUX 1 AUX 2 Diagram 2: Connecting to a System with No Preamp Outputs INPUT SURROUND RIGHT OUTPUT Right Sk Outlaw Audio OPT 1 DIGITAL OUTPUT VIDEO 1 MONITOR OUT OPT 2 FRONT SURR ANALOG BASS...
-
Page 7: Connecting To A System With No Preamp Outputs
Connecting to a System with No Preamp Outputs If no low-level subwoofer output is available, you will need to run speaker wires from your main amplifier or receiver to the subwoofer amplifier. See Diagram 2 on page 6. To connect a Variable Tuning LFM Series Subwoofer using high level inputs: 1. Turn off all system components and unplug the receiver and/or amplifier and the LFM from their AC power source. -
Page 8: Phase Switch
Y-adapter that is of equal or better quality than the subwoofer cables you intend to use. (We recommend the Outlaw Audio PCA Y-Adapter.) To use the Y-adapter, insert the single male end of the cable to the subwoofer output of your receiver or processor. -
Page 9: Care And Maintenance
866-688-5292. It is important that only a service agent authorized by Outlaw Audio carry out any repairs. Keep your sales slip or receipt in a safe place with this manual so that it will be available to verify the purchase date, should you experience a problem covered by our warranty. -
Page 10: Model Lfm-1 Ex Specifications
0 to 180 Degrees 118dB (subject to placement and room gain) Dimensions (HxWxD) 21.5” x 17.0” x 24.0” Weight 80 lbs Outlaw Audio Model LFM-1 Plus Specifications Driver Type Down Firing, 12" Long-throw Woofer Ports Dual Amplifier Power Rating 350WRMS; 1300W peak Frequency Response 18Hz -180Hz ±... -
Page 11: The Outlaw Audio 0-Day Satisfaction Guarantee
Outlaw Audio shall not be liable for, in any way responsible for, any inci- dental or consequential damages of any kind. Some states do not allow...
