MAZDA 323/PROTEGE 1990-94
WHEEL Cont'd
ALLOY WHEEL Cont'd
¶Included w/Wheel Assy
6 Cap, Wheel
13" Wheels
DX, SE Model B458-37-170A
LX Model BB7E-37-170
14" Wheels B459-37-170A
7 Cap, Hub B457-37-170A
Stem, Valve 9963-60-4130
Nut, Lug
Standard B002-37-160A
Bright 0603-26-161A

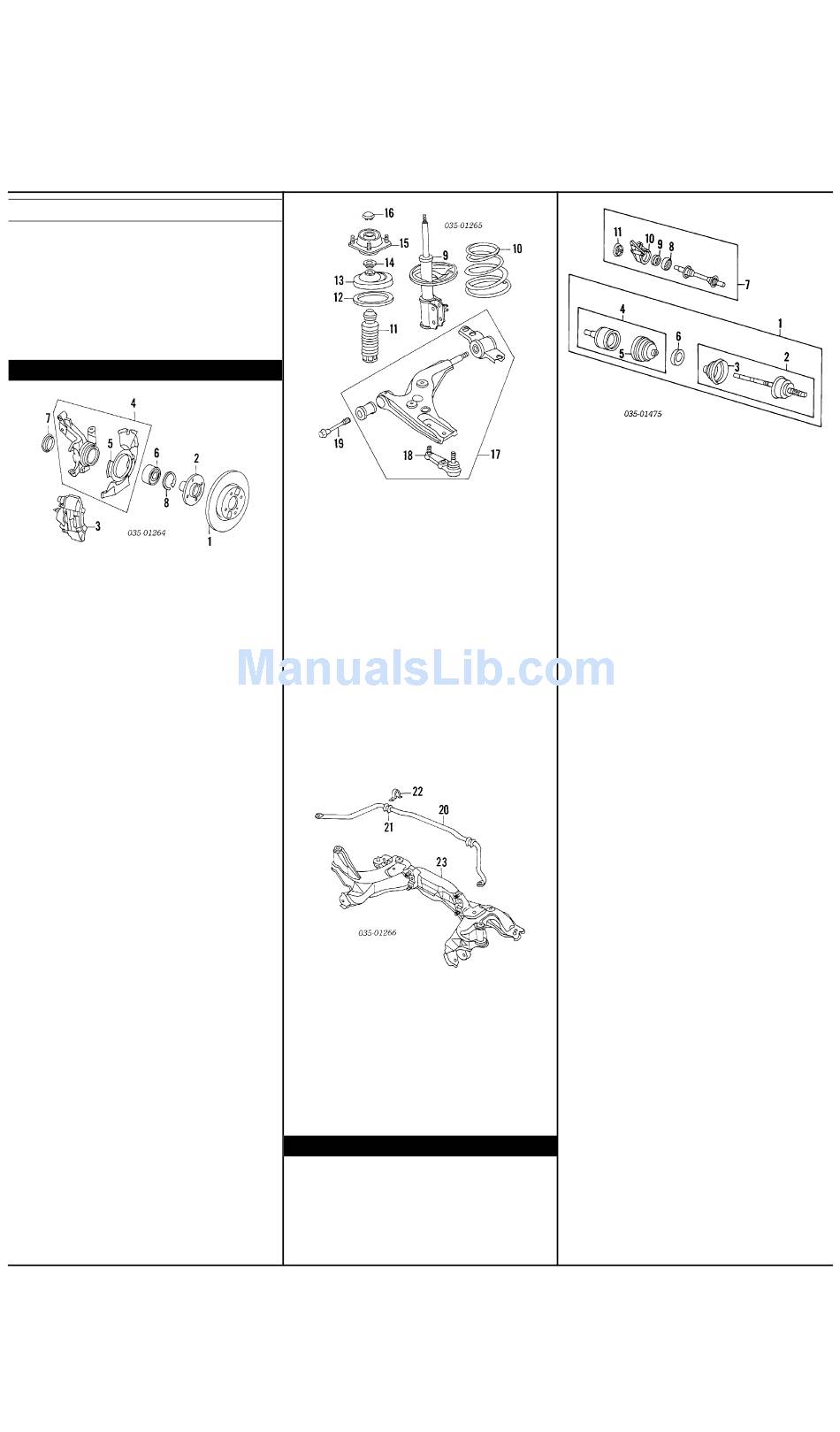

FRONT SUSPENSION

1 Rotor, Brake
FWD
SOHC Eng R/L B26Y-33-25XA
DOHC Eng R/L BB7E-33-25XD
AWD R/L B530-33-25XE
Nut, Lock R/L GJ21-33-042B
2 Hub, Drive R/L B01A-33-060A
3 Caliper, Brake
FWD
SOHC Eng R B4Y2-33-98ZR
L B4Y2-33-99ZR
DOHC Eng R BRY4-33-98ZR
L BRY4-33-99ZR
AWD R BRY4-33-98ZR
L BRY4-33-99ZR
Hose, Brake
FWD R/L B455-43-980B
AWD R/L B461-43-980C
4 Knuckle Assy, Steering
FWD
SOHC Eng
To 1-1-92 R B455-33-020A
L B455-33-030A
From 1-1-92 to 3-9-93
Right B455-33-020A
Left B455-33-030A
From 3-9-93 R B01L-33-020B
L B01L-33-030B
DOHC Eng
To 1-1-92 R BR74-33-020C
L BR74-33-030C
From 1-1-92 to 3-9-92
Right BR74-33-020C
Left BR74-33-030C
From 3-9-92 R B01A-33-020B
L B01A-33-030B
AWD R BR74-33-020C
L BR74-33-030C
5 Shield, Splash¶
To 6-1-93 R B01A-33-261B
L B01A-33-271B
From 6-1-93 R B01A-33-261B
L B01A-33-271B
¶Included w/Steering Knuckle Assy
6 Bearing, Wheel R/L B455-33-047D-MV
7 Seal, Bearing R/L G304-33-065
8 Ring, Retaining R/L B21M-33-048
Illustration Located in Next Column
9 Strut
FWD
1.6L Eng R BR70-34-700F
L BR70-34-900F
1.8L Eng R BR70-34-700F
L BR70-34-900F
AWD R BA1E-34-700A
L BA1E-34-900A
10 Spring, Coil¶
Hatchback
Man Trans R/L B458-34-011A
Auto Trans R/L B463-34-011A
Sedan
FWD
Man Trans R/L B463-34-011A
Auto Trans R/L BR72-34-011A
AWD
Man Trans R/L BR72-34-011A
Auto Trans R/L BR75-34-011A
48
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
Page 48—April 22, 2004—13:29:16—Version
¶Order by Application
11 Bumper, Stop
12 Seat, Rubber
13 Seat, Spring
14 Bushing, Mtg
15 Mount, Strut
16 Cap, Damper
17 Arm Assy, Lower Control
1990-91
FWD
AWD
1992-95
Std Duty
To 3-9-93
From 3-9-93
Hvy Duty
To 3-9-93
From 3-9-93
18 Joint, Ball¶
To 3-9-93
From 3-9-93
Bolt, Ball Joint¶
¶Included w/Lower Control Arm Assy
19 Bolt, Lower Arm
20 Bar, Stabilizer
FWD
Std Duty
Hvy Duty
AWD
21 Bushing, Stabilizer
FWD
Std Duty
Hvy Duty
AWD
22 Bracket, Stabilizer
To 6-1-94
From 6-1-94
23 Crossmember, Susp
FWD
AWD
FRONT DRIVE AXLE
1 Shaft Assy, Axle
FWD
1.6L Eng
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
R/L B455-34-111B
R/L B455-34-012
R/L B455-34-340A
R/L B455-34-38XB
R/L B455-34-380D
R/L 1011-34-019
R B455-34-300E
L B455-34-350E
R B530-34-300A
L B530-34-350A
R BR70-34-300B
L BR70-34-350B
R B455-34-300E
L B455-34-350E
R BS06-34-300
L BS06-34-350
R B620-34-300C
L B620-34-350C
R/L B455-34-550
R/L BTDA-34-550
R/L B455-34-349A
R/L B455-34-113
B459-34-151
B461-34-151B
BA1C-34-151A
R/L B459-34-156A
R/L EA03-34-156
R/L B461-28-156A
R/L B461-34-155A
R/L BC1D-34-155B
EA01-34-800G
B528-34-800G
Illustration Located in Next Column
R FZ24-25-400R-0A
L F024-25-600R-0H
1.8L Eng
SOHC Eng R FS17-25-400R-0F
L FS17-25-600R-0F
DOHC 1990-91
Man Trans R F037-25-500R-0B
L F037-25-600R-0D
Auto Trans R F037-25-500R-0B
L F017-25-600R-0E
DOHC 1992-95
Right
To 3-1-92 F037-25-400R-0A
From 3-1-92 F037-25-500R-0B
Left
To 7-1-92 F037-25-600R-0D
From 7-1-92 F037-25-600R-0D
AWD
Man Trans R F051-25-500
L F051-25-600D
Auto Trans R F059-25-500B
L F052-25-600B
2 Joint Set, Outer¶ (b)
FWD
1.6L Eng R F024-22-510A
L F024-22-610A
1.8L Eng
SOHC Eng
To 7-12-93 R FS17-22-510
L FS17-22-610
From 7-12-93 R FS17-22-510C
L FS17-22-610C
DOHC Eng
Man Trans R F037-22-510B
L F037-22-610A
Auto Trans R F037-22-510B
L F017-22-610A
AWD
Man Trans R F051-22-510A
L F051-22-610A
Auto Trans R F059-22-510B
L F052-22-610A
3 Boot, Outer¶ (a) (b)
FWD
1.6L Eng R/L BS10-V9-050-9U
1.8L Eng
SOHC Eng R/L BS05-V9-050
DOHC Eng R/L BS40-V9-050-9U
AWD R/L BS20-V9-050-9U
(a) Included w/Outer Joint Set
4 Joint Set, Inner¶ (b)
FWD
1.6L Eng 90-92 R/L FZ02-22-520A
93-95 R/L FZ02-22-520A
1.8L Eng
SOHC Eng 90-92 R FS17-22-520C
L FS17-22-620
93-95 R FS17-22-520C
L FS17-22-620B
DOHC Eng
1990-92 R F037-22-520
L F017-22-620C
1993-95
Man Trans R F037-22-520
L F037-22-620C
Auto Trans R F037-22-520
L F017-22-620C
AWD R F051-22-520
L F051-22-620C
5 Boot, Inner¶ (a) (b)
FWD
1.6L Eng R/L F061-22-540-9U
1.8L Eng R/L FS17-22-540
AWD R/L G071-22-540
(a) Included w/Inner Joint Set
6 Damper, Dynamic¶ (b)
1.6L Eng F002-25-411B
1.8L Eng F018-25-411
¶Included w/Axle Shaft Assy
7 Shaft Assy, Joint (b)
Man Trans (DOHC Eng) F037-25-700
Auto Trans (DOHC Eng) F047-25-700
8 Seal, Dust Inner¶ (b) F002-25-744
9 Bearing, Ball¶ (b) 9960-68-2063
10 Brkt, Shaft¶ (b)-Serviced w/Joint Shaft Assy
11 Seal, Dust Outer¶ (b) F002-25-742
¶Included w/Joint Shaft Assy
