5. Connect Audio Cable

Freecom MediaPlayer supports 3 types of audio output; "Stereo, Coaxial, Optical". Use
the audio connection that your TV or Audio set supports. Normally, TV supports stereo
audio connection, and this package includes stereo audio cable.
Don't connect optical and coaxial cable together at the same time!
When you do not hear any sound after connecting Optical or Coaxial Cable,
you have to change audio setup of the Freecom MediaPlayer as Encoded
Digital. See "5.. Audio Setup".

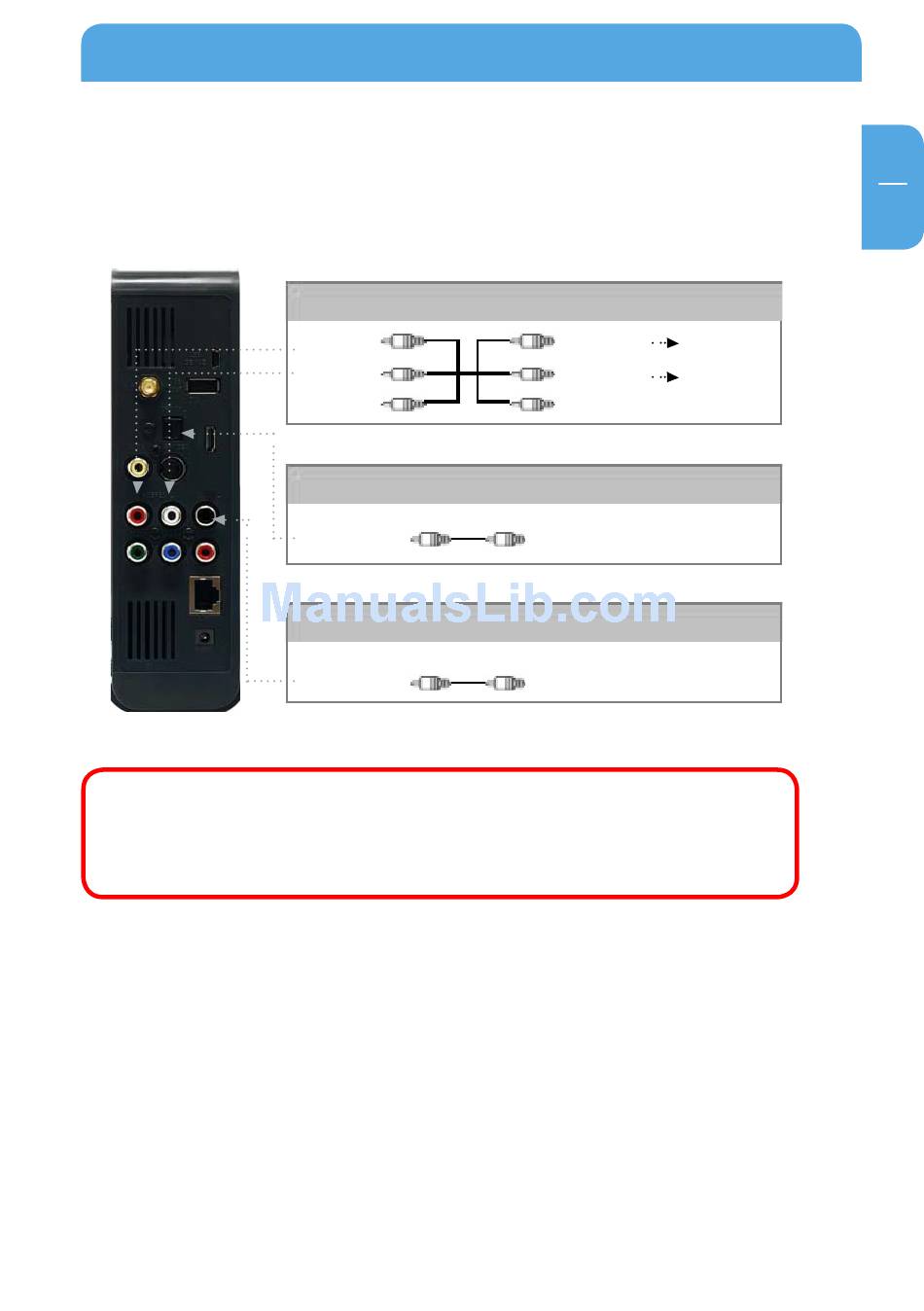

1. Stereo: Red & White RCA Cable (supplied)
Red
•
(STEREO-R)
•
(STEREO-L)
White
2.Optical: Optical Cable for Digital 5.1 ch. (not supplied)
•
OPTICAL
3. Coaxial: Coaxial cable for Digital 5.1 ch. (not supplied)
•
COAXIAL
Connect to External AV Device
Red Connect Stereo-R
•
(STEREO-R) Jack of TV.
(STEREO-L) Connect Stereo-L
•
White Jack of TV.
Connect Optical Jack of
Amplifier or Receiver
Connect Coaxial jack of
Amplifier or Receiver.
