Instructions for installing the ATC-4

Follow the procedure below for installing the optional ATC-4 (AATON in-
terface) to the PD-6.
<Note>
Before installing the ATC-4, make sure to turn off the power of the unit (i.e.
unplug the connector of the AC adaptor, or remove the internal battery.)

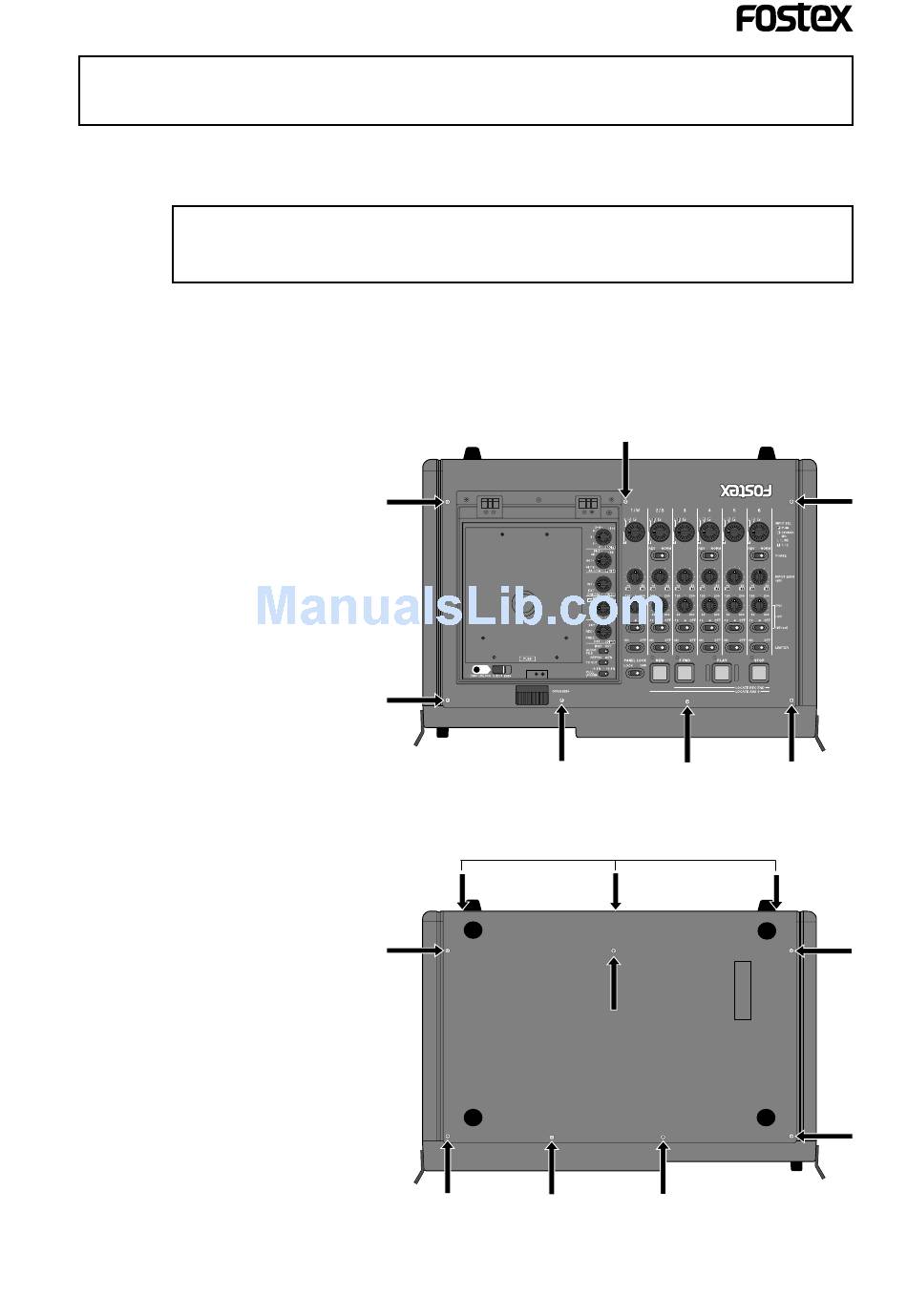

<Step 1>
Unfasten the screws for fixing top panel, front panel, bottom panel and
right side panel in order (see figures 1 through 4 below).
Top panel (7 screws)
Bottom panel
Bottom side (7 screws)
Back side (3 screws)
<Figure 1>
Back side (3 screws)
<Figure 2>
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATC-4 and is the answer not in the manual?

Questions and answers

Related Manuals for Fostex ATC-4

Summary of Contents for Fostex ATC-4

  • Page 1 Instructions for installing the ATC-4 Follow the procedure below for installing the optional ATC-4 (AATON in- terface) to the PD-6. <Note> Before installing the ATC-4, make sure to turn off the power of the unit (i.e. unplug the connector of the AC adaptor, or remove the internal battery.) <Step 1>...
  • Page 2 Hex nut Front panel (2 screws) <Figure 3> Hex nut Right side panel (11 screws) Hex nut <Figure 4> <Step 2> Remove the top and bottom panels. Then disconnect five cables which are connected to the right side panel, and remove the right side panel as shown in figure 5.
  • Page 3 <Step 3> Fit the ATC-4 to the appropriate position on the side panel as shown in figure 6 below. Use the crow washer and hex nut to fix the ATC-4 firmly. hex nut connector cable crow washer Position for fitting the ATC-4 side panel <Figure 6>...
