INSTALLATION

To install the monitor to your host system, please follow the steps as given
below:
Steps

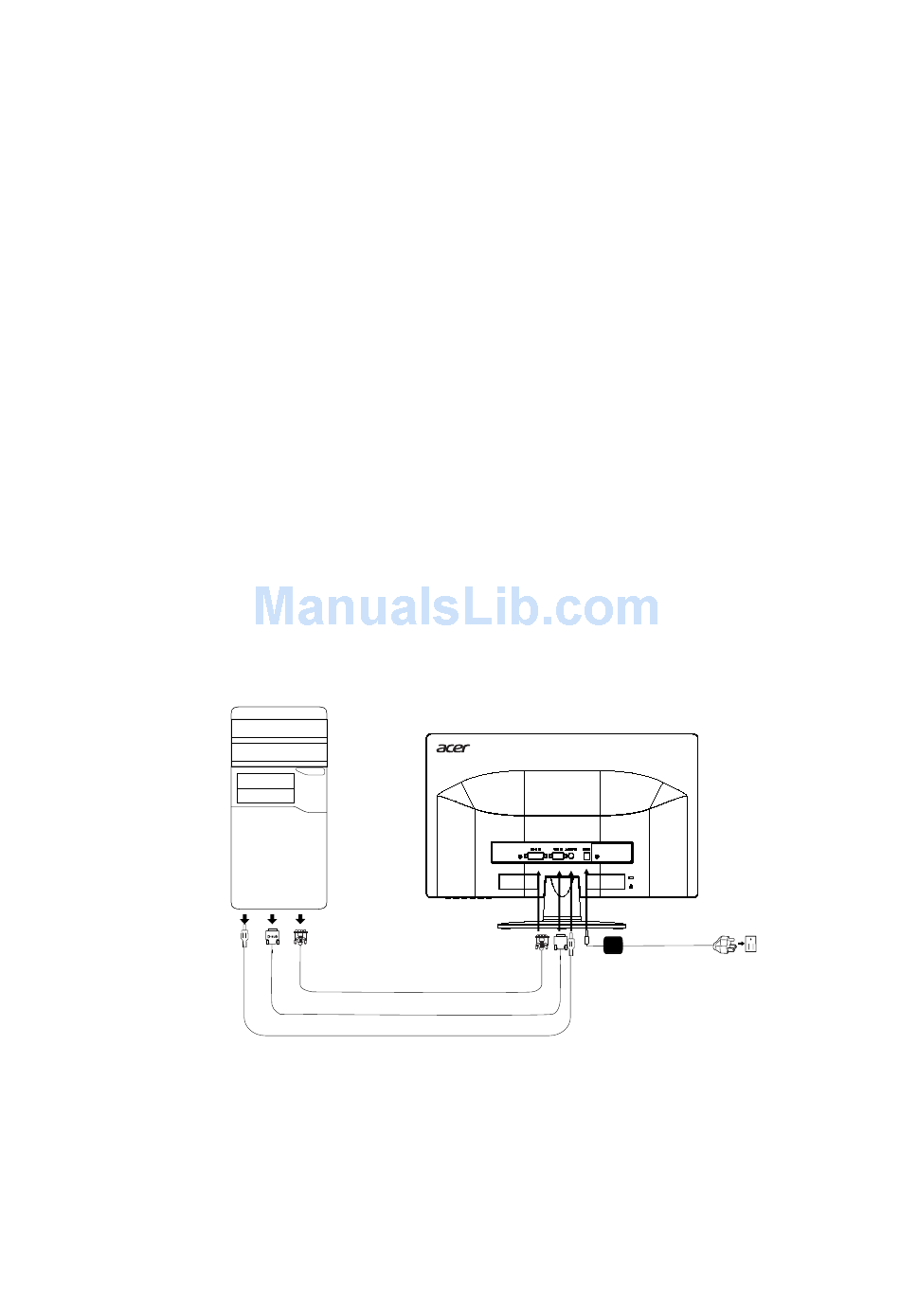

1. 1-1 Connect Video Cable
a. Make sure both the monitor and computer are powered-OFF.
b. Connect the VGA video cable to the computer.
1-2
Connect the digital cable (only for Dual-Input Model).
a. Make sure both the monitor and computer are powered-OFF.
b. Connect one end of the 24-pin DVI cable to the back of the
monitor and connect the other end to the
1-3 Connect the Audio Cable (Only Audio-Input Model)(Optional)
2.
Connect the adapter
a Connect the AC cord to the adapter.
b Connect one end of the adapter to the monitor and the other end to
a p roperly g rounded, A
3.
Power-ON Monitor and Computer
Power-ON the monitor first, then power-ON the computer.
This sequence is very important.
4. If the monitor still does not function properly, please refer to the
troubleshooting section to diagnose the problem.
.
C ou tlet
DVI-D IN
VGA IN
AUDIO IN
EN-7
computer's port.
DC-IN
VGA
