TCP/IP Setup Using
Windows 3.11
Setting Up TCP/IP Using
MS TCP
U TCP/IP W
P FOR INDOWS AND
If you are using Windows 3.11, a TCP/IP stack is not provided as part of the
operating system. If you do not have a TCP/IP stack, you can use MS TCP which is
provided on the 3Com Companion Programs CD-ROM.
To set up MS_TCP, do the following.
1 Install MS_TCP, located on the 3Com Companion Programs CD-ROM, onto your
hard drive.
2 From the Program Manager, click Network.

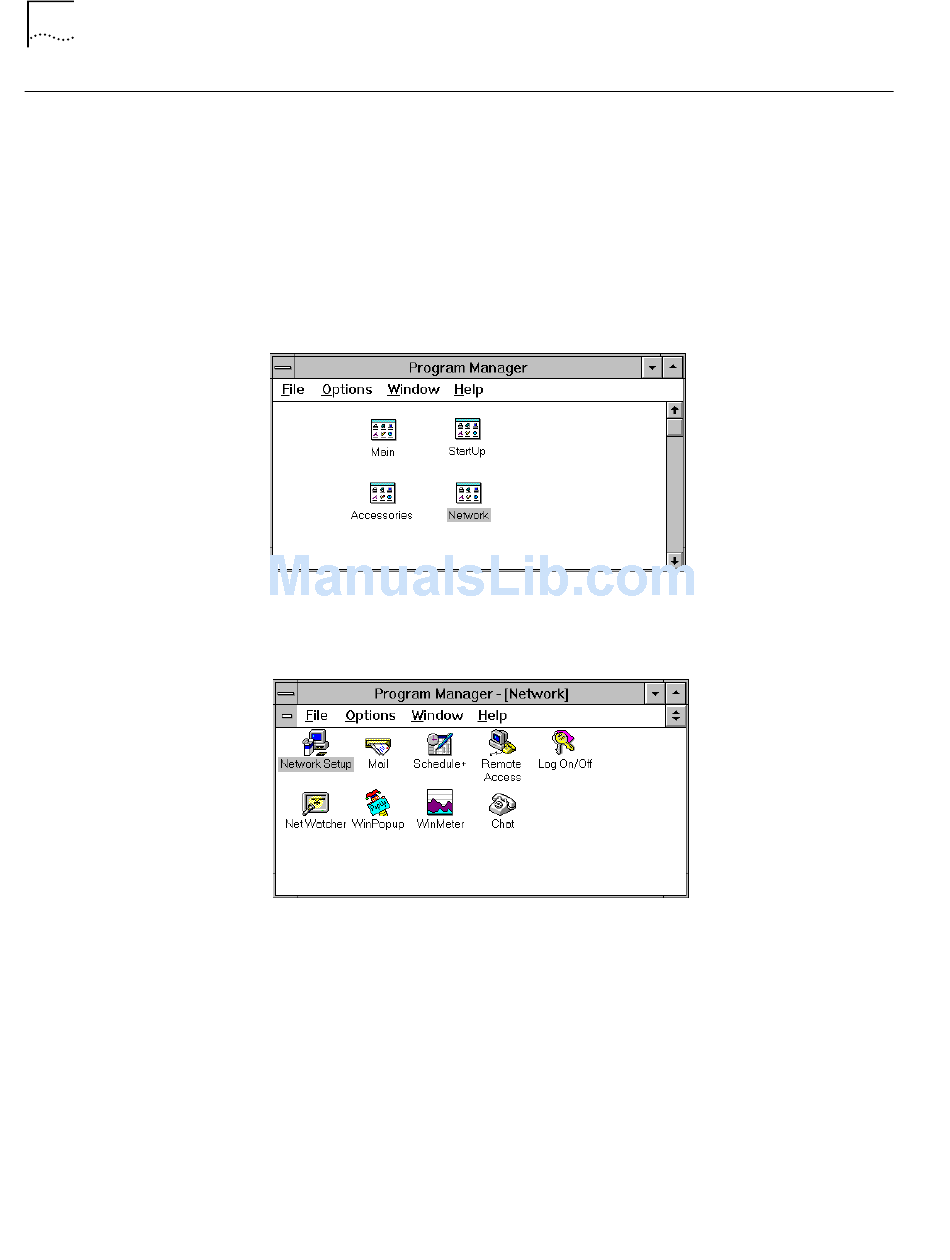

Figure 31 Program Manager Group Box
3 From the Network group box, click Network Setup.
Figure 32 Network Group Box
4 From the Network Setup dialog box, click the Drivers button.
5 From the Network Drivers dialog box, click Add Protocol.
6 Select Unlisted or Update Protocol and then click OK.
7 From the Install Driver dialog box, enter the path to the MS TCP directory.
For example, if you installed MS TCP on your C: drive in a directory called MSTCP,
you would enter C:\MSTCP.
8 Select MS TCP/IP-32.X and then click OK to install.
The protocol is added to the list as shown in Figure 33.
