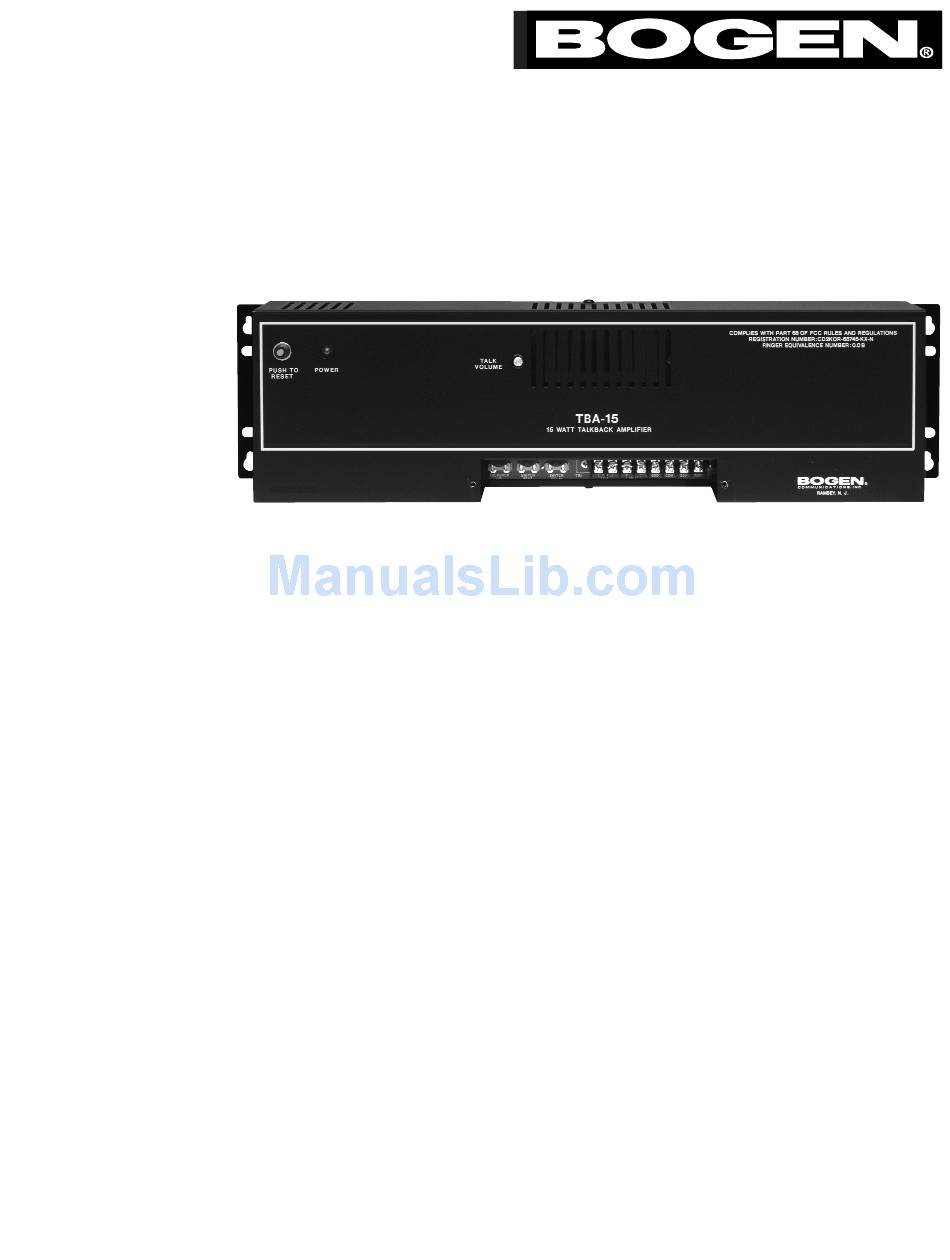

- Page 1 TBA15 Paging/Talk Back Amplifier Installation and Use Manual © 2012 Bogen Communications, Inc. All rights reserved. 54-5870-01B 1207...
- Page 2 Every effort was made to ensure that the information in this manual Always follow these basic safety precautions when installing and was complete and accurate at the time of printing. However, infor- using the system: mation is subject to change. 1.Read and understand all instructions.
- Page 3 (via the Bogen Model TAMB2 Telephone Access Module, or other suitable interface) and is reached by dialing a number reserved for paging.
- Page 4 TAMB2, Telephone Access Module. Note that a power supply is required for both the trunk and station access modes (see Figure 3). The use of a Bogen ZPM3 Zone Paging Module permits up to 3 zones of paging. Both one-way and two-way zones may be incorporated in the configuration. Installation instructions are included with the ZPM3.
- Page 5 Controls are provided to adjust the performance of the TBA15. Since these controls interact with each other, the following procedure should be used to set the unit for optimum performance. Adjusting the performance of the TBA15 requires two people; one in the talk back zone having the highest background noise level, and one at the amplifier location.
- Page 6 TBA15 LINE COM 70V TAMB2 TELEPHONE PAGING ACCESS MODULE STATION/ PAGE CONTACT 24VDC TRUNK CLOSURES 150mA PT PR NO C NC TO STATION POWER SUPPLY * POWER SUPPLY REQUIRED FOR TRUNK LEVEL ACCESS ONLY TAMB2 TELEPHONE PAGING ACCESS MODULE STATION/ PAGE CONTACT 24VDC...
- Page 7 ....CD272Q-17147-KX-N ....0.0B .
- Page 8 The Bogen TBA15 Paging/Talk Back Amplifier is warranted to be free from defects in material and workmanship for two (2) years from the date of sale to the original purchaser. Any part of the product covered by this warranty that, with normal installation and use, becomes defective (as confirmed by Bogen upon inspection) during the applicable warranty period, will be repaired or replaced by Bogen, at Bogen’s option, provided the product is shipped...
