- Page 1 TPU600-G2 Telephone Paging Amplifier Installation and Use Guide Specifications are subject to change. © Copyright 2022, Bogen Communications LLC 740-00127D 220318...
- Page 2 TPU600-G2 WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Avertissement: pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet appareil sous la pluie et l’humidité.
-
Page 3: Package Contents

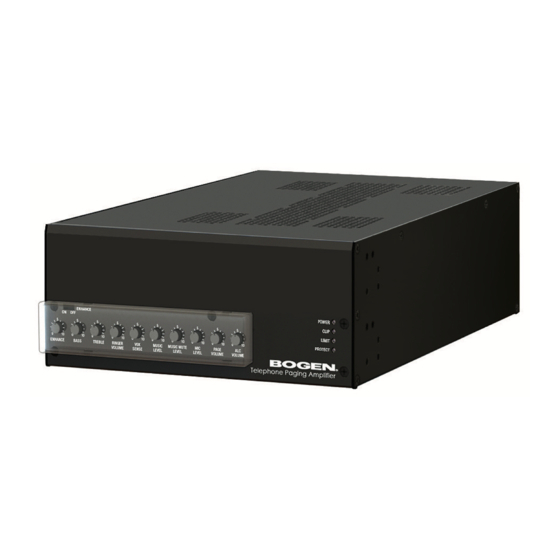

TPU600-G2 Amplifier Rear Panel Introduction This document describes the Bogen TPU600-G2 Telephone Paging Amplifier. It is a full-featured, wall- or rack-mounted amplifier that provides inputs for a dry-loop, 600-ohm telephone page signal, a background music source, and a low-impedance microphone. Automatic background music mute is provided when making a tele- phone page. -
Page 4: Rack Mounting
Rack Mounting The TPU600-G2 can be rack-mounted through the use of a single-unit Rack Mount Kit (P/N: NQ-RMK03), which is included. Use the supplied screws to attach the brackets to each side of the amplifier, as shown in Figure 1. If mounting two amplifiers side-by-side in a 19-inch rack, use the optional NQ-RMK04 joining bracket between the two amplifiers along with the supplied Rotatable Mounting Ears Kit (see Figure 2). -
Page 5: Input Wiring Connections
A low-impedance dynamic microphone input is provided in this amplifier. It is designed to work with a push-to-talk dy- namic microphone, like Bogen’s DDU250 microphone. Connect the balanced dynamic microphone’s signal wires to MIC INPUT +/–. Black wires typically connect to the “–” terminal, while white or red wires connect to “+”. Connect the shield wire from the microphone to the adjacent GND terminal. -
Page 6: Night Ringer Connection
For example, when two 600-watt amplifiers are bridged, the total output capacity of the combined TPU600-G2 system is 1200 watts. However, bridging does not increase the size of the load a TPU600-G2 can individually handle. Once bridged, each amplifier will amplify the inputs present on both amplifiers. -
Page 7: Output Wiring Connections
IMPORTANT: Before making any connections or wiring changes to the amplifier, or any equipment connected to the amplifier, make sure that the amplifier is NOT powered on. The TPU600-G2 amplifiers feature a single output connector for 8-ohm, 25V, and 70V speakers. NOTICE The minimum impedance of this 70V/8Ω... -
Page 8: Operation
TPU600-G2 Operation Indicator LEDs ⃝ POWER The green POWER LED illuminates whenever AC power is applied to the amplifi- er via the power switch on the rear panel. ⃝ PROTECT The red PROTECT LED illuminates when the amplifier encounters a short circuit or an overtemp low-impedance speaker load causing thermal shutdown. -
Page 9: Adjustment Procedure
TPU600-G2 RINGER VOLUME adjusts the level of the night ringer tone output. The MUSIC LEVEL volume control should first be set to the customer’s satisfaction. When adjusting this level, the CLIP LEVEL indicator should be observed to ensure that the amplifier signal is not distorted. -
Page 10: Technical Specifications
TPU600-G2 Specifications Technical Specifications Power Output . . . . . . . . . . . . . . 600W RMS Frequency Response . . . . . . . 20 Hz to 22 kHz ±1dB Distortion . -
Page 11: Limited Warranty; Exclusion Of Certain Damages
IN NO EVENT SHALL BOGEN BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, LOSS OF PROF- ITS, LOSS OF DATA OR LOSS OF USE DAMAGES) ARISING OUT OF THE MANUFACTURE, SALE OR SUPPLYING OF PRODUCTS, EVEN IF BOGEN HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSSES. - Page 12 TPU600-G2 N O T E S...
- Page 13 TPU600-G2 www.bogen.com...
