Engine/Trans Mounts; Air Cleaner - Mazda 323 Protege Owner's Manual

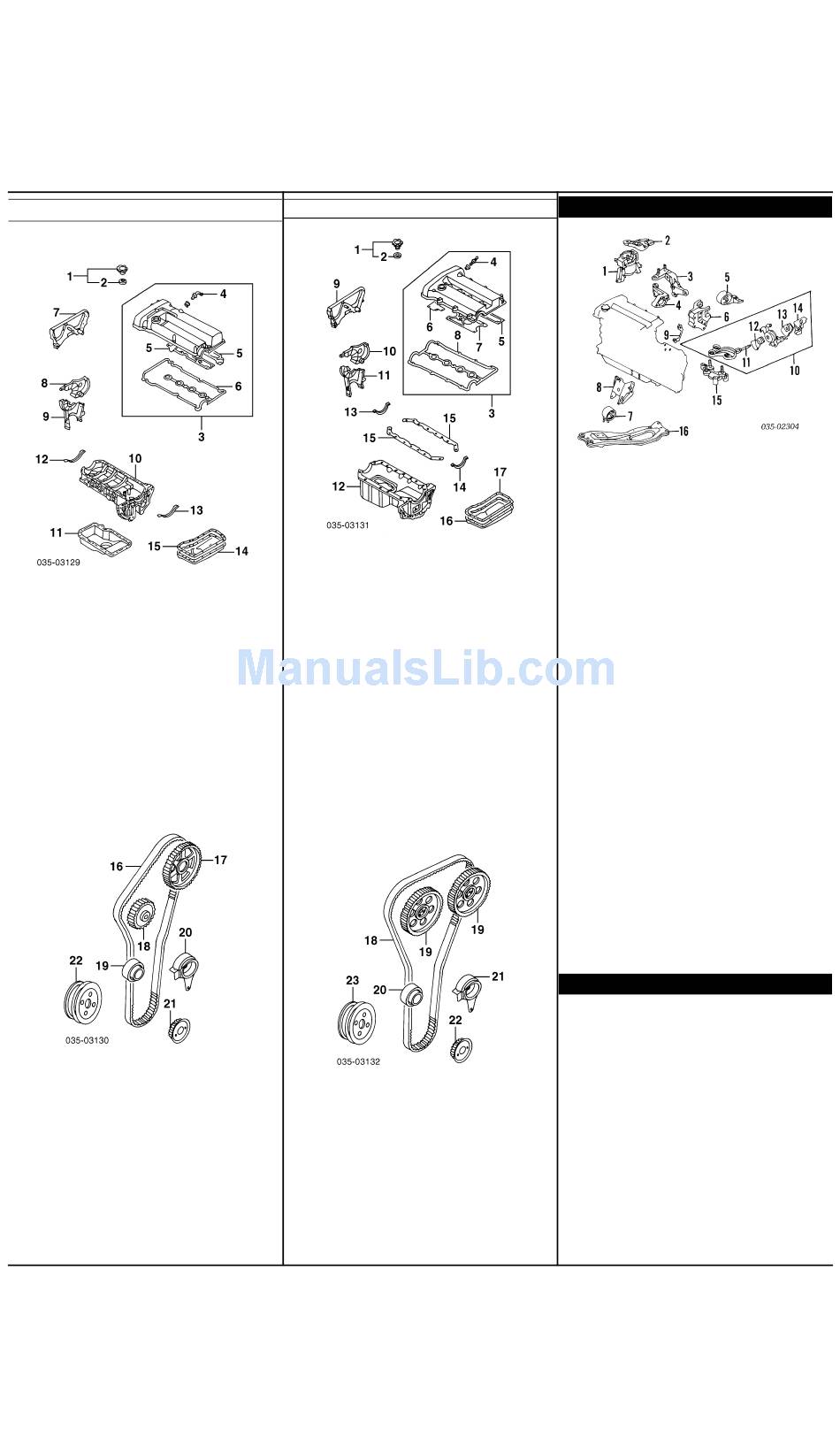

MAZDA 323/PROTEGE 1995-98
ENGINE/TRANS Cont'd
1.5L ENG Cont'd
1 Cap Assy, Oil Filler 0453-10-250A
2 Gasket, Filler Cap¶ 8871-10-252
¶Included w/Oil Filler Cap Assy
3 Cover Assy, Valve 95 Z506-10-210
96-98 Z506-10-210
4 Valve, PCV¶ B541-13-890A
5 Plate, Baffle¶ R Z501-10-227
L Z501-10-22X
6 Gasket, Valve Cover¶ Z505-10-235A
¶Included w/Valve Cover Assy
Cover, Timing
7 Upper Z501-10-511
8 Center B6BF-10-521
9 Lower B660-10-501E
Sealant, Timing Cover 8527-77-739
Pan, Eng Oil
10 Upper B6Z7-10-380B
11 Lower 95 B6BF-10-400A
96-98 Z501-10-400
Gasket, Eng Oil Pan
12 Front B6F4-10-427
13 Rear B6F4-10-428
Sealant, Eng Oil Pan 8527-77-739
14 Pan, Trans Oil FU60-21-511B
15 Gasket, Trans Oil Pan FU60-21-512B
16 Belt, Timing 95-97 Z501-12-205-9U
98 Z502-12-205-9U
Sprocket, Camshaft
17 Right 95-97 B6S7-12-425A
98 Z502-12-425
18 Left 95-97 Z501-12-730
98 Z502-12-425
19 Pulley, Idler B660-12-730C
20 Tension, Belt B660-12-700F
21 Sprocket, Crankshaft 95-97 B3C7-11-321
98 Z502-11-321
22 Pulley, Crankshaft 95-97 B6BF-11-401A
98 B6BG-11-401
Belt, Drive-See Cooling Section
306
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
Page 306—April 22, 2004—15:28:30—Version
1 Cap Assy, Oil Filler¶
2 Gasket, Filler Cap¶
¶Included w/Oil Filler Cap Assy
3 Cover Assy, Valve
4 Valve, PCV¶
Plate, Baffle¶
5 Right
Left
6 Front
7 Rear
8 Gasket, Valve Cover¶
¶Included w/Valve Cover Assy
Cover, Timing
9 Upper
10 Center
11 Lower
Sealant, Timing Cover
12 Pan, Eng Oil
Man Trans
To 1-97
From 1-97
Auto Trans
To 1-97
From 1-97
Gasket, Eng Oil Pan
13 Front
14 Rear
15 Stiffener, Eng Oil Pan
Sealant, Eng Oil Pan
16 Pan, Trans Oil
17 Gasket, Trans Oil Pan
18 Belt, Timing
19 Sprocket, Camshaft
20 Pulley, Idler
21 Tensioner, Belt
22 Sprocket, Crankshaft
23 Pulley, Crankshaft
Man Trans
Auto Trans
Belt, Drive-See Cooling Section
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
1.8L ENG
0453-10-250A
8871-10-252
BPD3-10-210C
BP05-13-890
B6S7-10-225
B6S7-10-22X
B6S7-10-22Y
BP05-10-235C
B6BF-10-511A
B6BF-10-521
B660-10-501E
8527-77-739
BP01-10-400K
BP02-10-400M
BP02-10-400H
BP02-10-400K
B541-10-427
B541-10-428
R/L BP09-10-436
8527-77-739
FU60-21-511B
FU60-21-512B
B6S7-12-205D-9U
R/L B6S7-12-425A
B660-12-730C
B660-12-700F
B3C7-11-321
95-97 BPD3-11-401A
98 BPD4-11-401
95-97 B6BF-11-401A
98 B6BG-11-401

ENGINE/TRANS MOUNTS

1 Mount, Engine Front BC1F-39-060C
Brkt, Front Engine Mount
2 Upper B02B-39-061
Lower
3 Right Side
1.5L Eng BC1D-39-030D
1.8L Eng BC1F-39-030C
4 Left Side
1.5L Eng BC1D-39-035A
1.8L Eng BC1F-39-035A
5 Mount, Eng Right Rear
Man Trans BC1D-39-040B
Auto Trans BC1E-39-040B
6 Bracket, Eng
Right Rear Mount BC1D-39-010
7 Mount, Eng Left Rear
Man Trans BC1D-39-050A
Auto Trans BC1G-39-050B
8 Brkt, Eng Left Rear Mount
1.5L Eng
Man Trans BC1D-39-020
Auto Trans BC1G-39-021
1.8L Eng
Man Trans 95 BC1F-39-020
96-98 BC1D-39-020
Auto Trans BC1G-39-021
9 Brace, Left Rear Mount
1.5L Eng F530-39-010
1.8L Eng GJ21-39-04XC
10 Mount Assy, Trans
Man Trans
1.5L Eng BC1D-39-100E
1.8L Eng 95 BC1E-39-100C
96-98 BC1D-39-100E
Auto Trans BC1E-39-100C
11 Brkt, Trans Mount¶
Man Trans
1.5L Eng BC1D-39-080
1.8L Eng 95 BC1E-39-081
96-98 BC1D-39-080
Auto Trans BC1E-39-081
Washer, Trans Mount¶
12 Front BC1D-39-087B
13 Rear BC1D-39-088
14 Damper, Dynamic¶
Man Trans B02C-39-08XC
¶Included w/Trans Mount Assy
Plate, Trans Mount
Man Trans
1.5L Eng BC1D-39-084
15 Support, Trans Mount
Man Trans
1.8L Eng BC1F-39-090
16 Member, Engine Mount BC1D-39-800B

AIR CLEANER

Illustration Located in Next Column
1 Cleaner Assy, Air
1.5L Eng B595-13-320B
1.8L Eng B6BF-13-320B
2 Element, Cleaner¶ B595-13-Z40-9U
3 Lid, Air Cleaner¶
1.5L Eng B595-13-Z01A
1.8L Eng B6BF-13-Z01A
¶Included w/Air Cleaner Assy
4 Bracket, Air Cleaner Assy B6BF-20-210
5 Tube, Fresh Air B6BF-13-200
6 Hose, Fresh Air B6BF-13-206B
7 Duct, Fresh Air B6BF-13-201C
8 Meter, Air Flow
1.5L Eng B3H7-13-215R-00
1.8L Eng B6BF-13-215
9 Hose Assy, Air
1.5L Eng 95-96 B595-13-220A
97-98 B5C9-13-221
1.8L Eng 95-96 B6BF-13-220C
97-98 B6KP-13-221
madpl1_g02_
Manufacturer
