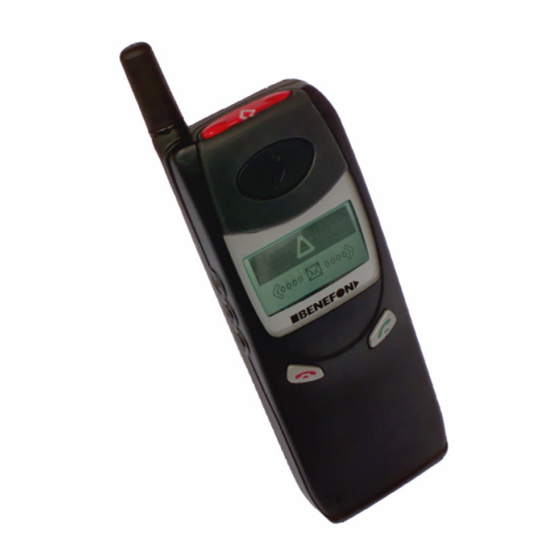

BENEFON SERAPH NT
2.0

Quick Guide

B
enefon Seraph NT pro-
tection device is designed
to be
"guardian angel" - intend-
ed for all areas of personal
and professional safety.
Instructed
icons, the device is espe-
cially suitable for children
and elderly people as well
as for applications or
situations where simplici-
ty and robustness is a
must.
Manufacturer: Publication number: YZ2661-1
Benefon Oyj, P.O. Box 84, All rights reserved.
© Benefon Oyj, 2004.
24101 Salo, Finland
www.benefon.com
Web site:
Benefon Oyj declares that this mobile phone, type TGP79EE, is in
compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Information in this Quick Guide is subject to change without notice.
BENEFON reserves the right to change or improve their products and to
make changes in the content without obligation to notify any person or
organization of such changes or improvements. BENEFON is not
responsible for any loss of data, income or any consequential damage
whatsoever caused.
Some of the features described in this guide are optional and intended to
be purchased separately. For more information, please contact your
dealer.
For more information, details and descriptions,
configuration and assortment of chargers and accessories, see the
Benefon Seraph NT Operating Instructions, or visit the web site:
www.benefon.com.
SERAPH NT 2.0 QUICK GUIDE
WHAT TO DO FIRST
INSERTING RUBBER SEAL AND FITTING AND
REMOVING THE BATTERY
The device is dust and splash proof. The protection category
for the device is IPX4. To meet these requirements, the rubber
seal must be inserted in place correctly.
R
ELEASE
your personal
CATCH
by simple
B
1
S
YSTEM CONNECTOR
including device
1. Slide the battery down-
B
ATTERY wards, towards the lower
corners.
2. Push the battery into the
device until it locks in
place, and make sure the
release catch has clicked
into place (upward posi-
tion).
3. The battery should be se-
curely fastened in the
battery hole.
4. Lift the cap on the top of
OTTOM COVER
the rubber tab (1).
5. When the cable/charger
connection is not need-
ed, stuff the bottom cov-
er into the
connector so that the
cover will be firmly se-
2
cured around the con-
nector (2).
R
EMOVING THE BATTERY
Push the release
downwards and pull the
battery carefully away from
the device.
INSERTING THE SIM CARD
1
1. Slide the SIM card holder to the
2. Insert the card into the holder.
3
3. Close the holder by pushing it to-
INITIALIZING THE DEVICE
When you start using the device for the first time, you should
charge the battery first. Please note that the battery will reach
its full capacity only after two or three charging times.

POWER SUPPLY

•Mains charger CMA-70-230 (with the standard charger cable
FMC70 or robust charger cable FMC79)
system
•Cigarrette lighter charger CCS-71-12
•Standard Li-Ion batteries 650 mAh (BBL77S), 900 mAh
(BBL77N), 1200 mAh (BBL77P), 1700 mAh (BBL77G)
•Special Li-Ion battery 1200 mAh including Vertical sensor com-
ponent (BBL79P). This special battery only works under these
conditions: The NT 2.0 software is installed and the Vertical
sensor feature is purchased and activated in the device.
The battery type may vary depending on the market area and
:
sales package. In unclear cases, check the battery compatibility
catch
with the dealer.
MAINS CHARGER
The mains charger should only be used indoors. Make sure that
the voltage in the country which you are staying corresponds to
the voltage (230 V) of the charger.
When charging, connect the round end of the charger cable into
the charger base and lock it by turning it half a turn clockwise.
2
right. Lift the holder into an up-
right position.
Check that the cut corner is at the
lower left side of the holder.
wards the phone. Slide the hold-
er back to the left until it locks.
