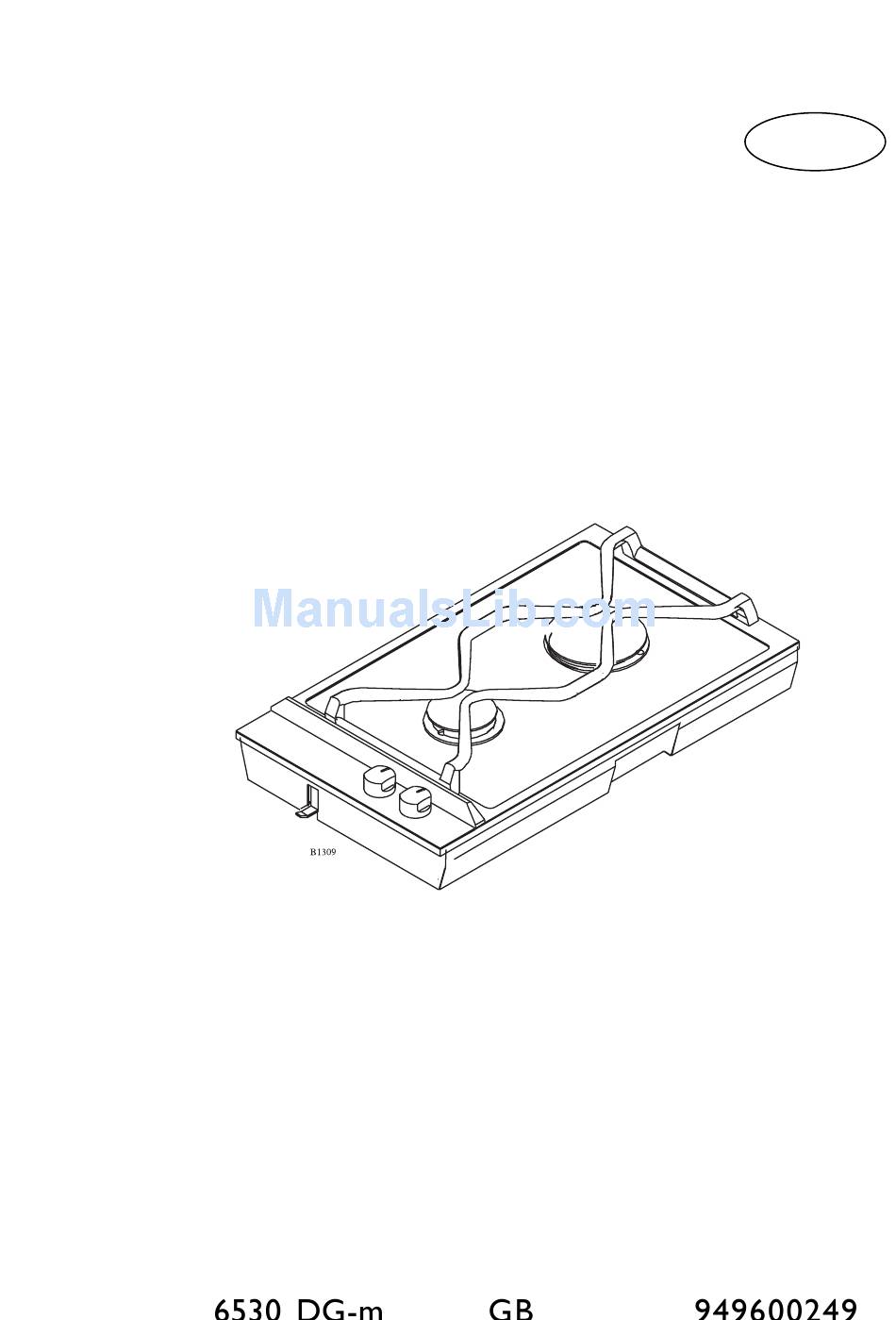

  • Page 1 INSTRUCTION- AND INSTALLATION BOOK Gas hob...
  • Page 2: Your New Appliance

    Your New Appliance Thank you for purchasing an AEG appliance. To enable you to use your new hob efficiently and safely, please read this instruction book carefully before installing or using the appliance, and retain for future reference. Should the hob be transferred to a new owner please ensure this instruction book is left with the appliance in order that the new owner can get to know the functions of the appliance and the relevant warnings.
  • Page 3 How to read the operating instructions: 1... 2...Step by step Safety information Hint and tips Environmental information...
  • Page 4: Child Safety

    These warnings are provided in the interests of your safety. Ensure you fully understand them before installing or using the appliance. Your safety is of paramount importance. If you are unsure about the meaning of these warnings contact the Customer Care Department for assistance.
  • Page 5 Air intake The primary air intake aperture must never be blocked by objests of any kind at any time.
  • Page 6 Burner markings Symbols at each control knob indicates which burner is adjusted with the control knob. Front Burner Back burner Panel markings Each control knob has a ring showing the scale of markings. Off. Maximum flame Minimum flame...
  • Page 7 Burner cover/inner burner ring/outer burner ring Together with the inner burner ring the outer burner ring forms a space where the final mixture of gas and air takes place in order for the gas burn correctly. Please note: It is very important that the inner burner ring/outer burner ring is placed correctly, together with the cover.
  • Page 8 1. Depress and turn the control knob for the burner to the left to max. flame . (Ignition position) 2. The ignition electrode will emit sparks, and when the mixture of gas and air is correct, the burner will be ignited.
  • Page 9 For reasons of hygiene and safety, the cooking zones must be kept clean. Grease stains and spilled food generate smoke when heated, and can even cause fire. The splashguard can be removed to make it easier to clean the surface. What to do: 1.
  • Page 10: Stainless Steel Surfaces

    Stainless steel surfaces Perform daily cleaning with a slightly damp cloth. For more severe soiling, use a liquid cream. Always clean the steel in the direction of the steel finish. To ensure that the steel retains its shine, it is recommended that you use a polishing agent for stainless steel on a regular basis.
  • Page 11 The operating panel with knob, pan support and burner covers/rings are to be cleaned with ordinary cleaning agents. Do not use any kind of scouring powder. Avoid saucepans boiling over. If water gets into the burner, this should be removed before re-igniting the burner, e.g.
  • Page 12 240 V 1N + PE HO5V2V2-F Blue and brown: 51 mm +/- 3 mm Yellow/Green: 61 mm +/- 3 mm...
  • Page 13 This hob must be installed in accordance with the Gas Safety (Installation and Use) Regulations (Current Edition) and the IEE Wiring Regulations (Current Edition). Detailed recommendations are contained in the following British Standards Codes Of Practice: B.S. 6172/ B.S. 5440, Par. 2 and B.S. 6891 Current Editions.
  • Page 14 Connection to the gas supply should be with either rigid or semi- rigid pipe, i.e. steel or copper. The connection should be suitable for connection to RC ½ (½ BSP male conical thread). When the final connection has been made, it is essential that a thorough leak test is carried out on the hob and installaion.
  • Page 15 Caution: In order to avoid a hazard this appliance must be installed according to these instructions for installation The hob unit can be mounted in any type of kitchen with a table surface whose thickness is between 28 mm and 40 mm.
  • Page 16 It is not necessary to attach the reinforcement beam to the table surface, as it is held in place by a specially designed moulding, which is incorporated in the hob units flanges. Installation in work tops with a base unit underneath If the hob is to be installed on top of a base unit, a board must be mounted underneath the hob (e.g.
  • Page 18 The unit´s externally measured length 145 mm: Cooker hood 290 mm: Two-zone ceramic-top electric hob Two-burner gas hob Grill Fryer 580 mm: Four-zone ceramic-top electric hob Four-burner gas hob 725 mm: Four-zone ceramic-top electric hob When mounting a single unit, be it a...
  • Page 19 If the hob is not working correctly, please carry out the following checks before contacting your local AEG Service Force Centre. IMPORTANT: If you call out an engineer to a fault caused by incorrect use or installation, a charge will be made even if the hob is under guarantee. Sympton: There is no spark when lighting the When the operating knob is released...
  • Page 20 In the event of your appliance requiring service, or if you wish to purchase spare parts, contact your local AEG Service Force Centre by telephoning: Your call will automatically be routed to the Service Centre covering your post code area. In-guarantee customers should ensure that the recommended checks under the heading "Something Not Working"...
  • Page 21 The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products. This guarantee relates to you and cannot be transferred to another user.
  • Page 22 Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local service organisation is aware of your move and able to look after you and your appliances.
  • Page 24 325 88-1620 Rev. 4-017...
