Behringer DIGITAL REVERB/DELAY DR400 Quick Manual

DIGITAL REVERB/DELAY DR400
Digital Stereo Reverb/Delay Effects Pedal
Thank you for showing your confidence in us by purchasing the BEHRINGER DIGITAL REVERB/
DELAY DR400. This Reverb/Delay effects pedal delivers 24-bit high-resolution stereo reverb and
delay effects. Experience state-of-the-art sounds comparable to studio processors in one compact pedal.

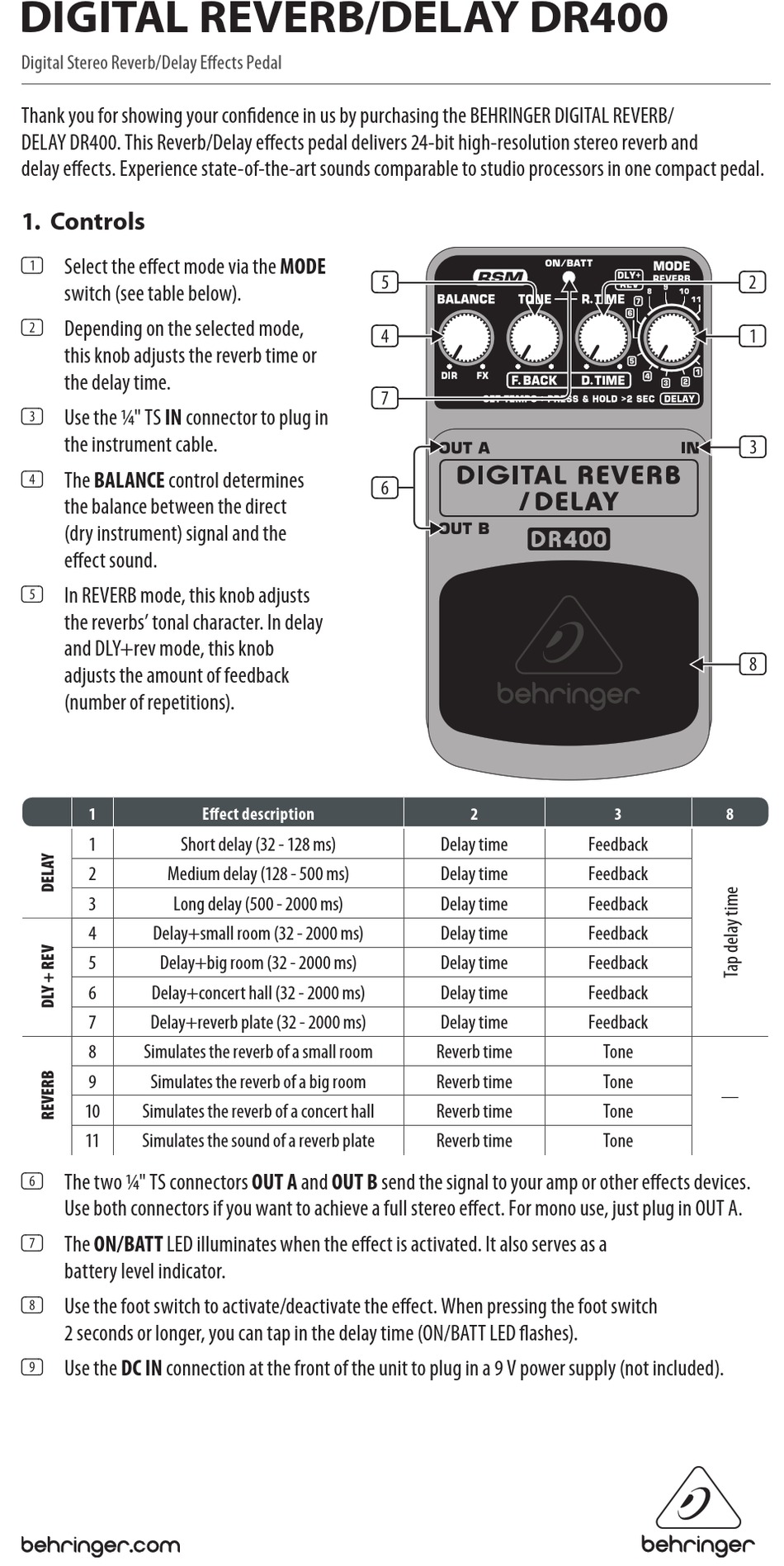

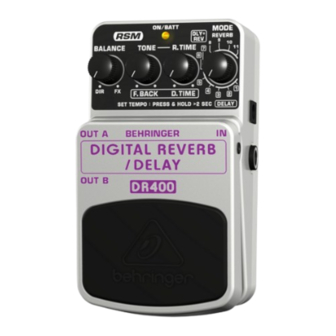

1. Controls
(1) Select the effect mode via the MODE
switch (see table below).
(2) Depending on the selected mode,
this knob adjusts the reverb time or
the delay time.
(3) Use the ¼" TS IN connector to plug in
the instrument cable.
(4) The BALANCE control determines
the balance between the direct
(dry instrument) signal and the
effect sound.
(5) In REVERB mode, this knob adjusts
the reverbs' tonal character. In delay
and DLY+rev mode, this knob
adjusts the amount of feedback
(number of repetitions).
1
1
2 Medium delay (128 - 500 ms)
3
4 Delay+small room (32 - 2000 ms)
5 Delay+big room (32 - 2000 ms)
6 Delay+concert hall (32 - 2000 ms)
7 Delay+reverb plate (32 - 2000 ms)
8 Simulates the reverb of a small room
9 Simulates the reverb of a big room
10 Simulates the reverb of a concert hall
11 Simulates the sound of a reverb plate
(6) The two ¼" TS connectors OUT A and OUT B send the signal to your amp or other effects devices.
Use both connectors if you want to achieve a full stereo effect. For mono use, just plug in OUT A.
(7) The ON/BATT LED illuminates when the effect is activated. It also serves as a
battery level indicator.
(8) Use the foot switch to activate/deactivate the effect. When pressing the foot switch
2 seconds or longer, you can tap in the delay time (ON/BATT LED flashes).
(9) Use the DC IN connection at the front of the unit to plug in a 9 V power supply (not included).
Effect description
Short delay (32 - 128 ms)
Long delay (500 - 2000 ms)
(5)
(4)
(7)
(6)
2
Delay time
Delay time
Delay time
Delay time
Delay time
Delay time
Delay time
Reverb time
Reverb time
Reverb time
Reverb time
3 8
Feedback
Feedback
Feedback
Feedback
Feedback
Feedback
Feedback
Tone
Tone
—
Tone
Tone
(2)
(1)
(3)
(8)
