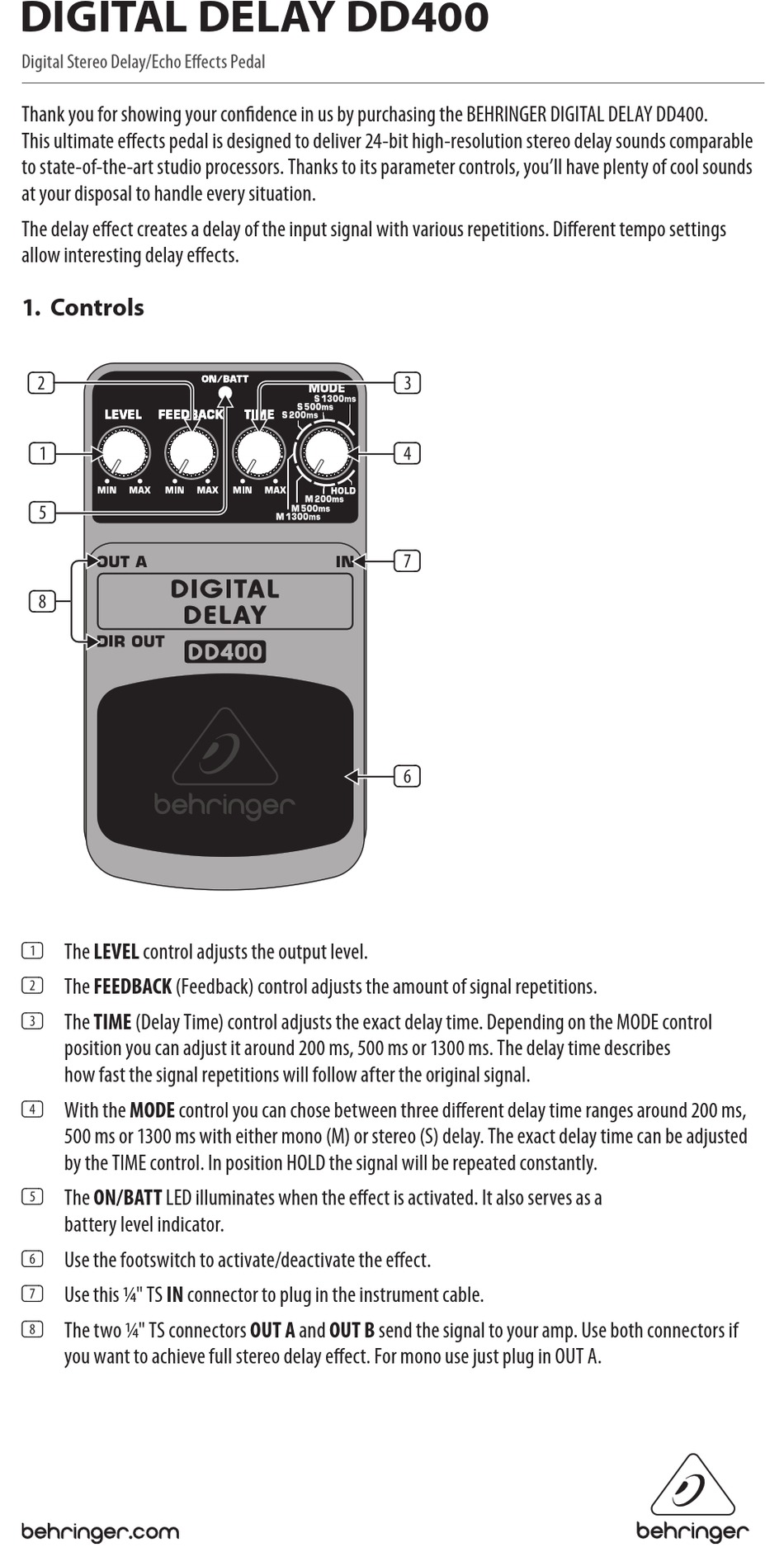

Behringer DIGITAL DELAY DD400 User Manual

DIGITAL DELAY DD400
Digital Stereo Delay/Echo Effects Pedal
Thank you for showing your confidence in us by purchasing the BEHRINGER DIGITAL DELAY DD400.
This ultimate effects pedal is designed to deliver 24-bit high-resolution stereo delay sounds comparable
to state-of-the-art studio processors. Thanks to its parameter controls, you'll have plenty of cool sounds
at your disposal to handle every situation.
The delay effect creates a delay of the input signal with various repetitions. Different tempo settings
allow interesting delay effects.
1. Controls
(2)
(1)
(5)
(8)
(1) The LEVEL control adjusts the output level.
(2) The FEEDBACK (Feedback) control adjusts the amount of signal repetitions.
(3) The TIME (Delay Time) control adjusts the exact delay time. Depending on the MODE control
position you can adjust it around 200 ms, 500 ms or 1300 ms. The delay time describes
how fast the signal repetitions will follow after the original signal.
(4) With the MODE control you can chose between three different delay time ranges around 200 ms,
500 ms or 1300 ms with either mono (M) or stereo (S) delay. The exact delay time can be adjusted
by the TIME control. In position HOLD the signal will be repeated constantly.
(5) The ON/BATT LED illuminates when the effect is activated. It also serves as a
battery level indicator.
(6) Use the footswitch to activate/deactivate the effect.
(7) Use this 1/4" TS IN connector to plug in the instrument cable.
(8) The two 1/4" TS connectors OUT A and OUT B send the signal to your amp. Use both connectors if
you want to achieve full stereo delay effect. For mono use just plug in OUT A.
(3)
(4)
(7)
(6)
