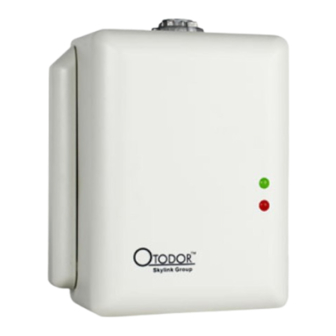

Swing Door Opener
MODEL: DM-50 / DM-100
US Patent 6243000B1
Patent Pending
P/N. 101A393
DEC, 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SkyLink DM-100

  • Page 1 Swing Door Opener MODEL: DM-50 / DM-100 US Patent 6243000B1 Patent Pending P/N. 101A393 DEC, 2005...
  • Page 2 Swing Door Opener USER'S INSTRUCTIONS...
  • Page 3: Table Of Contents

    CONTENT Introduction.......................................4 Overview.....................................4 Installation - In Swing..................................7 Determine the door configuration............................8 Installing the Door Opener..............................9 In-Swing Left and In-Swing Right............................9 Disable the existing door lock............................9 Mounting the Slider Bracket............................9 Installing the operator assembly onto the mounting plate..................10 Selecting the door type..............................11 Mounting the operator assembly with mounting plate onto the door..............11 Attach the door arm assenbly on the operator......................13 Program the OPEN and CLOSE travel limits......................14...
  • Page 4 *********************************************************************************************** IMPORTANT SAFETY INSTRUCTIONS WARNING – To reduce the risk of severe injury or death: 1. READ AND FOLLOW ALL INSTRUCTIONS. 2. Never let children operate or play with door controls. Keep the remote control away from children. 3. Always keep the moving door in sight and away from people and objects until it is com- pletely closed.
  • Page 5: Introduction

    This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause Congratulations on your purchase of a Skylink Swing Door Opener. This swing door opener can automatically undesired operation.
  • Page 6 In the package, you should find the following boxes. Electric Strike Box 1 - Swing Door Opener & Accessories - Designed specifically for Skylink Swing Door Opener DM-001 - Low current consumption, no external power supply is required BAG C...
  • Page 7 DOOR OPENER CONNECTIONS / SETTINGS INTRODUCTION Box 2 - Electromagnetic Lock & Accessories (Only available for Model DM-100) BAG F Connect Electromagnetic Lock -Enable external power supply for electromag- netic lock Connect to Disconnect - Electromagnetic lock -Disable external power - Electric strike supply for electromag- netic lock...
  • Page 8: Installation - In Swing

    INSTALLATION OPERATION Closing force Determine the door configuration As mentioned earlier, when the door reaches near the fully closed position, the closing speed will decrease. If the Different doors require different installation. It is important to determine what type of door you are planning to install factory default closing force is not enough to close the door fully, you may increase the closing force by connecting the door opener to.
  • Page 9: Determine The Door Configuration

    High Holding Force Electromagnetic Lock (Optional - sold separately) WARNING Skylink provides electromagnetic lock with holding force up to 45kg. However, electromagnetic lock with To reduce the risk of severe injury or death: higher holding force can be used (sold separately). To install non-Skylink electromagnetic lock, external 1.
  • Page 10: Installing The Door Opener

    “Timer” mode. how to install it on the door frame.) Plug the adapter back and the red LED will be on (Optional electric strike can be purchased from Skylink) steadily. Open the door by activating the remote. After the door 1.1 In order for the swing door operator to work properly, the function of the existing...
  • Page 11: Installing The Operator Assembly Onto The Mounting Plate

    OPERATION INSTALLATION - IN SWING Toggle Mode 7-1/2" (Approx. 190mm) 7-1/2" (Approx. 190mm) Slider bracket Slider bracket Toggle mode allows one button operation, which means by activating the remote, the door will either open or close, depends on the current door position. If the door is currently opened, activating the remote will close the door.
  • Page 12: Selecting The Door Type

    INSTALLATION - IN SWING OPERATION Selecting the door type Advanced programming / operations You must select whether you have an inswing left or inswing right You have successfully setup the swing door opener and it can perform all the basic operations. There are some door.
  • Page 13 OPERATION INSTALLATION - IN SWING Mute 5.2 Locate the operator assembly 2mm away from the top of the door frame, and 2mm from the side. If you would like to disable the buzzer beeping when the door opener is operating, follow the procedures below. Gap between the door and ·...
  • Page 14: Attach The Door Arm Assenbly On The Operator

    OPERATION INSTALLATION - IN SWING Remote Control Operation Attach the door arm assembly on the operator The remote control can be used to open and close your door. The remote has been programmed at the factory to 6.1 The door should remain at the fully closed Slider the swing door opener so no further programming is necessary.
  • Page 15: Program The Open And Close Travel Limits

    INSTALLATION - OUT SWING INSTALLATION - IN SWING Program the OPEN and CLOSE travel limits The door opener will automatically detect the open and close travel limited. It is capable to detect the fully open and fully closed positions. Follow the procedures below to set the travel limits. NOTE Before proceeding to the following steps, ensure you have cleared the path so the door can be open and closed without hitting any obstacle.
  • Page 16 INSTALLATION - IN SWING INSTALLATION - OUT SWING 8.5 After mounting the lock on the door, you can now mount the armature plate on the door jamb. (Follow Fig. A to Armature plate mount the armature plate. If the door jamb width is less than 3" (75mm), follow Fig.B) Soft Spacer 1) Secure the armature plate to the “L-shape”...
  • Page 17 INSTALLATION - IN SWING INSTALLATION - IN SWING INSTALLATION - OUT SWING 8.2 Secure the lock to the bracket with screw. 8.3 Close the door fully, mount the lock with the bracket to the door. 8.4 When securing the electromagnetic lock, position the wire towards the operator, which will be mounted on the upper left side of the door for out-swing right door, or upper right side of the door for out-swing left door.
  • Page 18: Out-Swing Left And Out-Swing Right

    2 screws how to install it on the door frame.) (Optional electric strike can be purchased from Skylink) Before proceeding to the following steps, ensure you have cleared the path so the door can be opened and closed without hitting any obstacle.
  • Page 19: Installing The Operator Assembly Onto The Mounting Plate

    INSTALLATION - OUT SWING INSTALLATION - OUT SWING Attach the door arm assembly on the operator 7-1/2" (Approx. 190mm) 7-1/2" (Approx. 190mm) Slider bracket Slider bracket 6.1 The door should remain at the fully closed position. Slider 6.2 Slide one end of the arm assembly (the end with the slider) into the slider bracket.
  • Page 20: Selecting The Door Type

    INSTALLATION - OUT SWING INSTALLATION - OUT SWING Selecting the door type 5.2 Locate the operator assembly 2mm away from the top of the door frame, and 2mm from the side. You must select whether you have an outswing left or outswing right Door Setting door.
