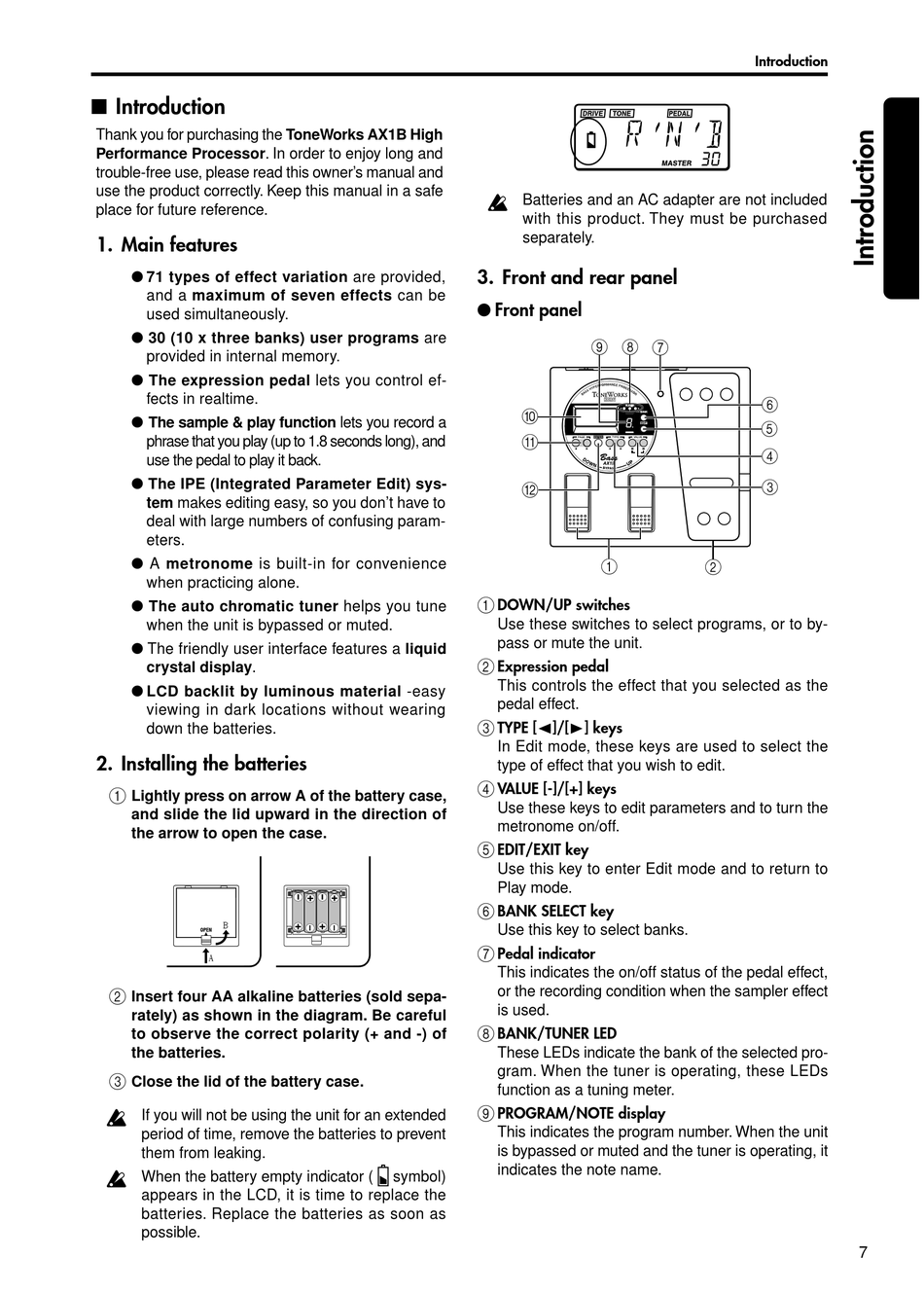

Introduction

Thank you for purchasing the ToneWorks AX1B High
Performance Processor. In order to enjoy long and
trouble-free use, please read this owner's manual and
use the product correctly. Keep this manual in a safe
place for future reference.

1. Main features

71 types of effect variation are provided,
and a maximum of seven effects can be
used simultaneously.
30 (10 x three banks) user programs are
provided in internal memory.
The expression pedal lets you control ef-
fects in realtime.
The sample & play function lets you record a
phrase that you play (up to 1.8 seconds long), and
use the pedal to play it back.
The IPE (Integrated Parameter Edit) sys-
tem makes editing easy, so you don't have to
deal with large numbers of confusing param-
eters.
A metronome is built-in for convenience
when practicing alone.
The auto chromatic tuner helps you tune
when the unit is bypassed or muted.
The friendly user interface features a liquid
crystal display.
LCD backlit by luminous material -easy
viewing in dark locations without wearing
down the batteries.

2. Installing the batteries

1
Lightly press on arrow A of the battery case,
and slide the lid upward in the direction of
the arrow to open the case.
2
Insert four AA alkaline batteries (sold sepa-
rately) as shown in the diagram. Be careful
to observe the correct polarity (+ and -) of
the batteries.
3
Close the lid of the battery case.
If you will not be using the unit for an extended
period of time, remove the batteries to prevent
them from leaking.
When the battery empty indicator (
appears in the LCD, it is time to replace the
batteries. Replace the batteries as soon as
possible.
Batteries and an AC adapter are not included
with this product. They must be purchased
separately.

3. Front and rear panel

Front panel

0
A
B
1
DOWN/UP switches
Use these switches to select programs, or to by-
pass or mute the unit.
2 Expression pedal
This controls the effect that you selected as the
pedal effect.
3
TYPE [√]/[®] keys
In Edit mode, these keys are used to select the
type of effect that you wish to edit.
4
VALUE [-]/[+] keys
Use these keys to edit parameters and to turn the
metronome on/off.
5
EDIT/EXIT key
Use this key to enter Edit mode and to return to
Play mode.
6 BANK SELECT key
Use this key to select banks.
7
Pedal indicator
This indicates the on/off status of the pedal effect,
or the recording condition when the sampler effect
is used.
8
BANK/TUNER LED
These LEDs indicate the bank of the selected pro-
gram. When the tuner is operating, these LEDs
function as a tuning meter.
9 PROGRAM/NOTE display
This indicates the program number. When the unit
is bypassed or muted and the tuner is operating, it
indicates the note name.
symbol)
Introduction
9 8 7
6
5
4
3
1 2
