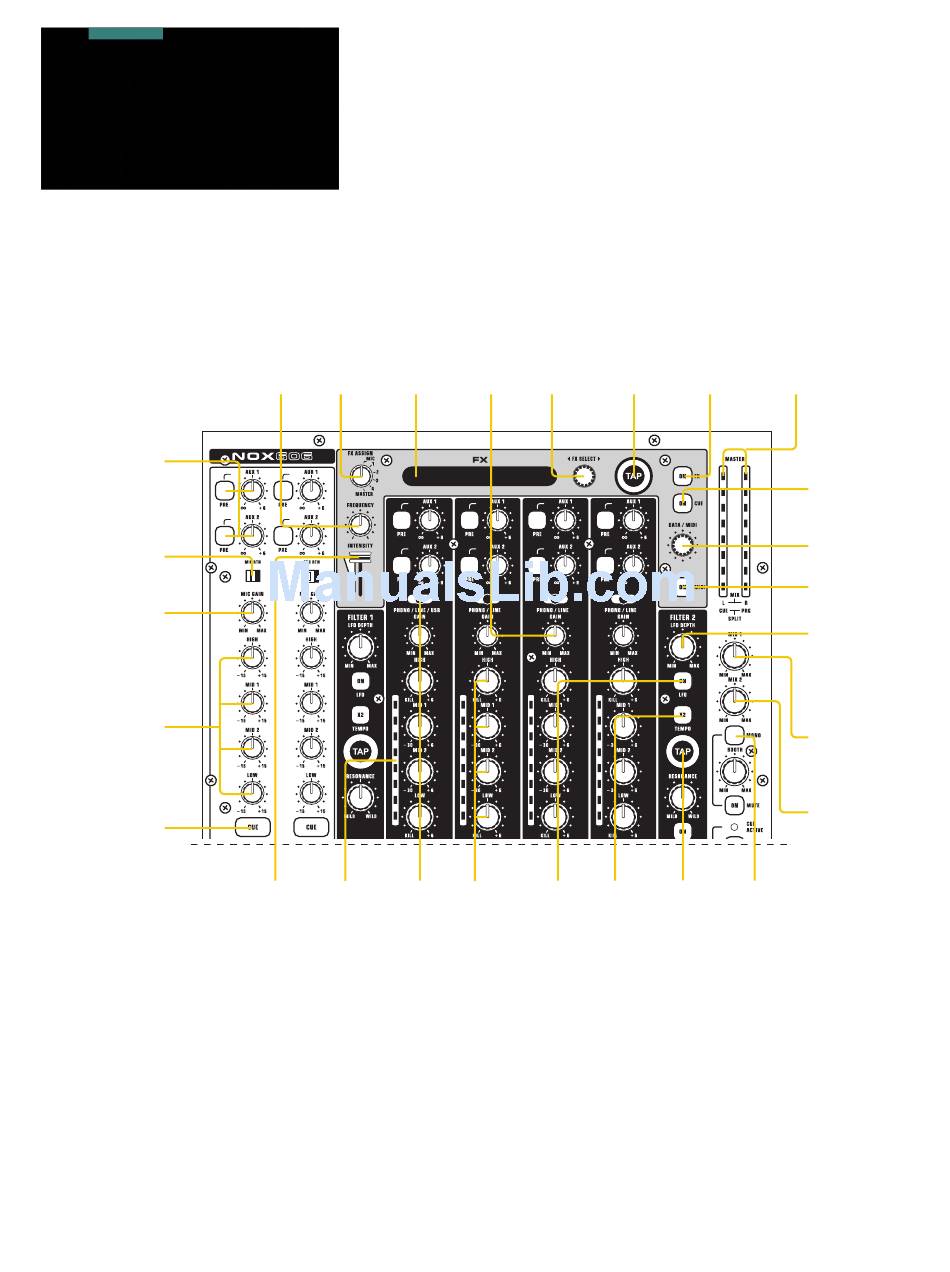

NOX606 Top Panel
AUX 1/2 knobs
adjust channel
signal level at AUX
SEND 1 and 2 jacks,
PRE buttons send
signal to AUX SEND
jack pre-fader
MIC/RTN switch
selects XLR MIC or
stereo 1/4" RETURN
inputs as channel
audio source
MIC GAIN knob
controls sensitivity
of mic input
MIC EQ knobs
adjust channel
equalization
CUE button allows
source monitoring
without inclusion
in master output
FREQUENCY
FX ASSIGN
knob adjusts
knob selects
effect's
FX DISPLAY
which sources
frequency or indicates
are affected
time-based selected
by effect
parameter effect
INTENSITY CHANNEL INPUT SELECT
fader adjusts VU METER switch selects
effect's displays channel audio
mix or input source source
resonance signal level
parameter
FX SELECT
knob scrolls TAP button
GAIN knob through allows effect's
controls available tempo
channel effects, pressing parameter to
input knob confirms be entered
sensitivity selection manually
CHANNEL EQ LFO ON X2 TEMPO
knobs boost/ button button
cut high, doubles
mid and low LFO speed
frequencies
FX ON
MASTER VU
button
METER displays
activates
master output
digital effects
and/or cue
processor
signal level
FX CUE button
sends effect to
cue section for
preview
DATA/MIDI knob
allows adjustment
of data, such as
MIDI clock speed
MIDI ON button
sends MIDI start/
stop data to
external sequencer
LFO DEPTH knob
adjusts amount of
LFO (low-frequency
oscillator)
modulation
applied to filter
MIX 1 knob
adjusts level
of MIX 1 XLR
outputs on
rear panel
MIX 2 knob
adjusts level of
MIX 2 1/4" jacks
on rear panel
TAP button MONO button
allows LFO switches
speed to be BOOTH signal
entered by from stereo to
tapping with mono
music
