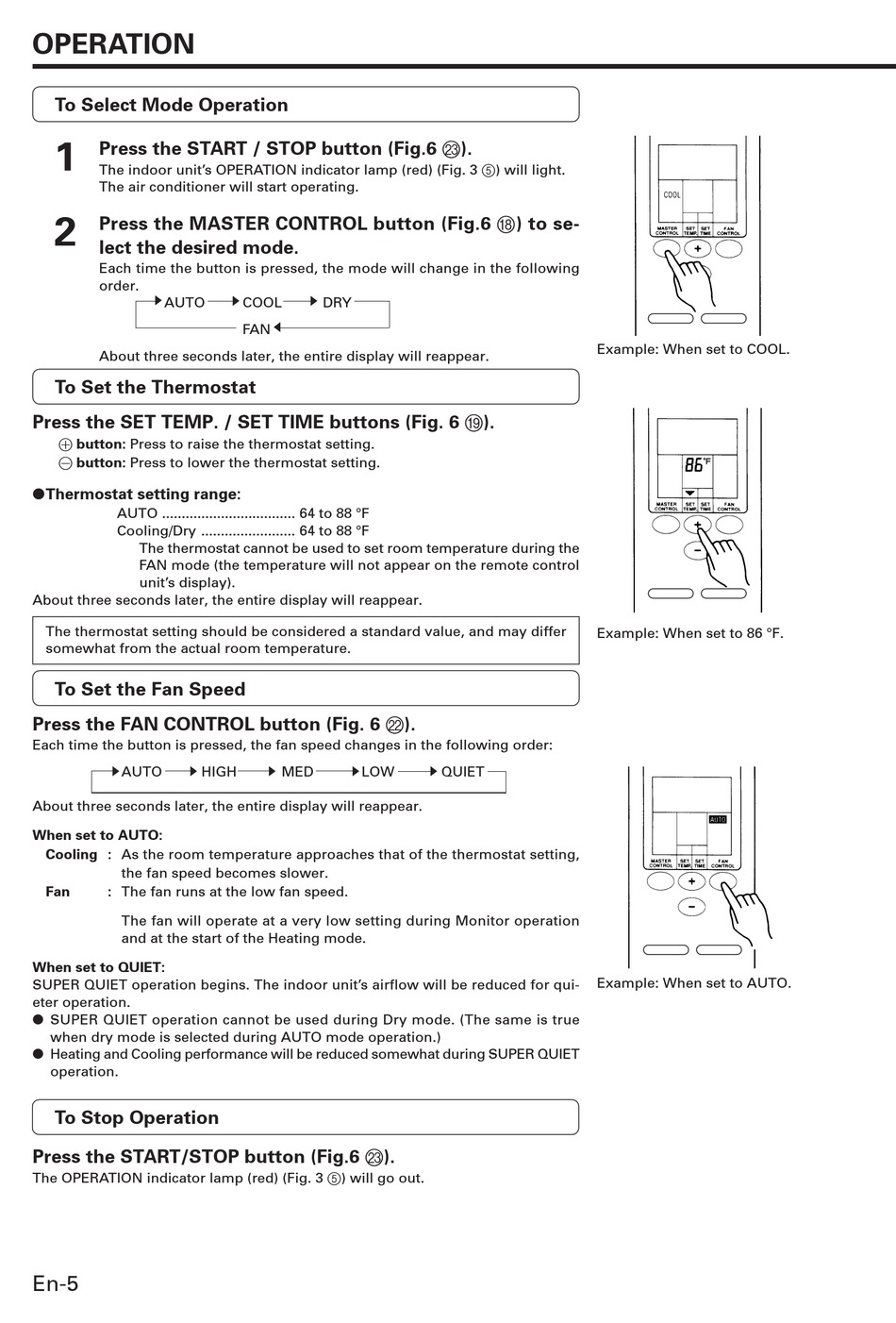

OPERATION

To Select Mode Operation
Press the START / STOP button (Fig.6 M).
1
The indoor unit's OPERATION indicator lamp (red) (Fig. 3 5) will light.
The air conditioner will start operating.
2
Press the MASTER CONTROL button (Fig.6 H) to se-
lect the desired mode.
Each time the button is pressed, the mode will change in the following
order.
s
AUTO
About three seconds later, the entire display will reappear.
To Set the Thermostat
Press the SET TEMP. / SET TIME buttons (Fig. 6 I).
, button: Press to raise the thermostat setting.
- button: Press to lower the thermostat setting.
GThermostat setting range:
AUTO .................................. 64 to 88 °F
Cooling/Dry ........................ 64 to 88 °F
The thermostat cannot be used to set room temperature during the
FAN mode (the temperature will not appear on the remote control
unit's display).
About three seconds later, the entire display will reappear.
The thermostat setting should be considered a standard value, and may differ
somewhat from the actual room temperature.
To Set the Fan Speed
Press the FAN CONTROL button (Fig. 6 L).
Each time the button is pressed, the fan speed changes in the following order:
s
AUTO
s
HIGH
About three seconds later, the entire display will reappear.
When set to AUTO:
Cooling : As the room temperature approaches that of the thermostat setting,
the fan speed becomes slower.
Fan
: The fan runs at the low fan speed.
The fan will operate at a very low setting during Monitor operation
and at the start of the Heating mode.
When set to QUIET:
SUPER QUIET operation begins. The indoor unit's airflow will be reduced for qui-
eter operation.
G SUPER QUIET operation cannot be used during Dry mode. (The same is true
when dry mode is selected during AUTO mode operation.)
G Heating and Cooling performance will be reduced somewhat during SUPER QUIET
operation.
To Stop Operation
Press the START/STOP button (Fig.6 M).
The OPERATION indicator lamp (red) (Fig. 3 5) will go out.
En-5
s
s
COOL
DRY
t
FAN
s
MED
s
LOW
Example: When set to COOL.
Example: When set to 86 °F.
s
QUIET
Example: When set to AUTO.
