ESI Rekord M User Manual

ESI Rekord M User Manual

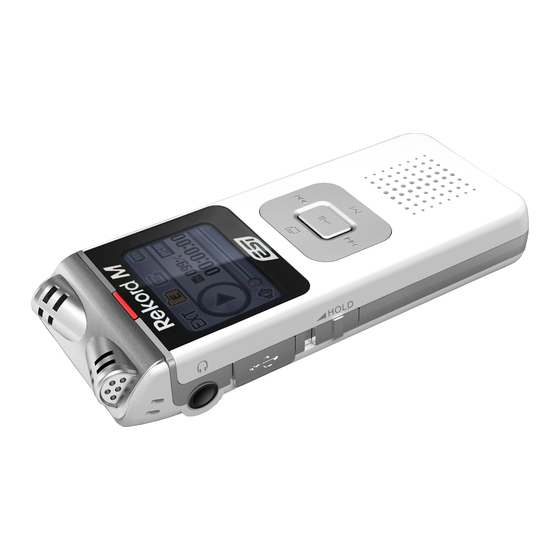

Professional level compact handheld audio recorder

Advertisement

Quick Links

Professional Level Compact
Handheld Audio Recorder
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rekord M and is the answer not in the manual?

Questions and answers

Summary of Contents for ESI Rekord M

  • Page 1 Professional Level Compact Handheld Audio Recorder User’s Guide...
  • Page 2 ESI - Copyright © 2010 Revision 1, May 2010 www.esi-audio.com...
  • Page 3: Table Of Contents

    Rekord M INDEX 1. Introduction..........................4 2. Description of Rekord M......................4 Accessories ................................5 LCD display................................6 3. Recording & Playback......................... 7 Power On/Off................................7 Input Source selection..............................7 Folder selection & Filenames ............................ 8 Recording................................... 8 Playback..................................9 Delete Files ................................
  • Page 4: Introduction

    Rekord M 1. Introduction Congratulations on your purchase of Rekord M, a very affordable and compact handheld audio recorder with professional studio quality. It has an integrated stereo microphone that allows you to record anything directly virtually anywhere. It also has a stereo line input with adjustable input gain, allowing you to record your mix directly from the output of a mixer for example.
  • Page 5: Accessories

    Rekord M 3. red recording LED, shows recording status 4. RECORD button to start recording mode and save recorded data 5. headphone and line output (1/8" stereo connector) 6. VOLUME +/- buttons to increase and decrease playback volume 7. USB connector under plastic cover, used for PC/Mac connection and charging using the supplied USB accessory cable 8.
  • Page 6: Lcd Display

    Rekord M A. USB connection cable, this cable is used to connect Rekord M to your PC or Macintosh and to charge the battery. Simply connect it to the computer and the internal battery of Rekord M gets charged automatically. B.
  • Page 7: Recording & Playback

    Power On/Off To switch on Rekord M, press and hold the P button in the middle. A short ESI logo AUSE animation will show you that the unit is switching itself on. Once ready, you can see the main LCD screen as shown in the diagram in chapter 2.
  • Page 8: Folder Selection & Filenames

    Rekord M enabled (AUTO is displayed in middle of the LCD screen) or disabled (no AUTO will be shown) using the FUNC button to switch between the two options. We recommend to use the supplied microphone input adapter when using this input source. D.
  • Page 9: Playback

    Rekord M Playback To playback a file, you can select it using the R and F buttons. The EWIND ORWARD IGHT bottom status section of the LCD display displays the filename. You can only play files in the currently selected folder. To actually start playback, push the P button.
  • Page 10: Bitrate (Rec. Setting)

    Rekord M To select an entry, you can use the F button or alternatively the P button. ORWARD IGHT AUSE Changing a setting requires you to select it (again using F and M buttons) and OLDER confirm it with the P button in the middle.
  • Page 11: Play Speed (Func. Setting)

    Rekord M Play Speed (Func. Setting) The Play Speed section allows you to change the playback speed of the files you are playing in the range from 70% to 120%. This is interesting for practicing (i.e. percussion, etc.). Obviously the default is 100%.
  • Page 12: Usb Connection To Pc Or Mac

    Rekord M 5. USB Connection to PC or Mac Rekord M is detected as a USB memory device when connected to your PC or Macintosh system with Windows XP, Windows Vista, Windows 7 or Mac OS X – similar like a USB memory stick or an external USB hard disk.
  • Page 13 Rekord M...
  • Page 14: Specifications

    - 34mm x 87mm x 14mm dimensions - ca. 38g weight 7. General Information Trademarks ESI and Rekord M are trademarks of ESI Audiotechnik GmbH. Windows is a trademark of Microsoft Corporation. Other product and brand names are trademarks or registered trademarks of their respective companies.
  • Page 15 If necessary, consult an experienced radio/television technician for additional suggestions. Correspondence For technical support inquiries, contact your nearest dealer, local distributor or ESI support online at www.esi-audio.com. Disclaimer All features and specifications subject to change without notice.
