Summary of Contents for ESI Neva Uno
- Page 1 24-bit / 192 kHz USB-C Audio Interface with Microphone Preamp User’s Guide...
- Page 2 ESI - Copyright © 2023 Revision 2, September 2023 www.esi-audio.com...
-
Page 3: Table Of Contents
Neva Uno INDEX 1. Introduction ..........................4 1.1 Connectors & Functions ............................4 2. Installation ............................ 5 2.1 System Recommendation ............................. 5 2.2 Hardware Installation ............................5 2.3 Driver & Software Installation ..........................5 2.3.1 Installation under Windows ..........................6 2.3.2 Installation under OS X / macOS ........................ -
Page 4: Introduction

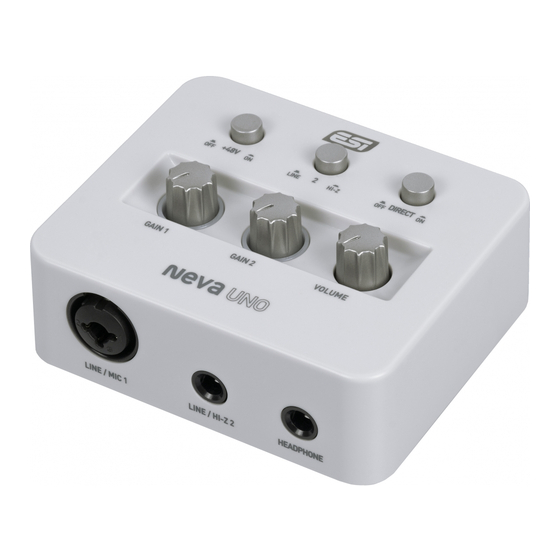

USB 3 Camera Connector). This stylish audio interface is so small, it will instantly become your new companion on the go and in your studio. Neva Uno is USB bus powered and Plug & Play, just plug it in and start working. While Neva Uno is a USB-C device and optimized for USB 3.1 operation, it is also compatible with standard USB 2.0 ports. -
Page 5: Installation
("type A"), a cable is included. For "type C" a different cable or an adapter is needed (not included). Connect one end of the USB cable with Neva Uno and the other one to the USB port of your computer. -
Page 6: Installation Under Windows
The following explains how to install Neva Uno under Windows 10. If you use Windows 11, the steps are basically the same. Do not connect Neva Uno to your computer before you install the driver - if you have connected it already, disconnect the cable for now. -
Page 7: Installation Under Os X / Macos
The control panel gets installed by double clicking on the .dmg file and then you will get the following window in Finder: To install the Neva Uno Panel, click and drag it with your mouse to the left to Applications. This will install it into your Applications folder. -
Page 8: Windows Control Panel
Sample rate there as well (as long as no audio is being played back or recorded). As Neva Uno is a digital audio interface, all applications and audio data will be processed with the same sample rate at a given time. The hardware natively supports rates between 44.1 kHz and 192 kHz. -
Page 9: Latency And Buffer Settings
Via Config > Latency in the Control Panel it is possible to change the latency setting (also called “buffer size”) for the driver of Neva Uno. A smaller latency is the result of a smaller buffer size and value. Depending on the typical application (e.g. for playback of software synthesizers) a smaller buffer with a smaller latency is an advantage. - Page 10 Neva Uno This dialog allows you to virtually connect playback (output) channels and input channels with virtual cables on the screen. The three main columns are labeled INPUT (the physical hardware input channel), WDM/MME (the playback/output and input signals from audio software that use the Microsoft MME and WDM driver standard) and ASIO (the playback/output and input signals from audio software that uses the ASIO driver standard).
-
Page 11: Directwire Loopback
Neva Uno 3.3 DirectWIRE Loopback Neva Uno also provides a feature we call DirectWIRE Loopback, a quick, simple and efficient solution to record or stream playback signals, no matter what audio applications you are using. To open the related dialog, select the DirectWIRE > Loopback entry via the top menu of the control panel software and the following window appears, showing the option to loop back signals from the virtual playback channel 3 and 4 or from the hardware playback channel 1 and 2. - Page 12 In order to hear the system sounds and to hear sounds from standard applications such as your web browser or a media player via Neva Uno, you need to select it as the default device in your operating system by clicking on it and then click Set Default.
-
Page 13: Os X / Macos Control Panel
This chapter describes the Neva Uno Control Panel and its functions on the Mac. Under OS X / macOS, you can find a Neva Uno icon in the Applications folder. Double click on this to launch the control panel software and the following dialog will appear: The File menu provides an option called Always on Top that makes sure the Control Panel stays visible even when working in other software and you can launch the macOS Audio Settings there. -
Page 14: Latency And Buffer Settings
If you are unsure, check the manual of the audio software you are using. 4.2 DirectWIRE Loopback Neva Uno also provides a feature we call DirectWIRE Loopback, a quick, simple and efficient solution to record or stream playback signals, no matter what audio applications you are using. -
Page 15: Specifications
Neva Uno 5. Specifications USB 3.1 audio interface with USB-C connector, USB 2.0 compatible ("type A" to "type C" cable included, "type C" to "type C" cable not included) USB bus powered 2 input / 2 output channels at 24-bit / 192kHz XLR combo microphone preamp with +48V phantom power support Hi-Z instrument input with 1/4"... -
Page 16: General Information
We love to hear from you so we can improve our products! Trademarks ESI, Neva and Neva Uno are trademarks of ESI Audiotechnik GmbH. Windows is a trademark of Microsoft Corporation. Other product and brand names are trademarks or registered trademarks of their respective companies.
