ESI

MAYA44e

5. MIDI & S/PDIF: connects to the breakout cable for MIDI and S/PDIF I/O

6. Optical Out: optical digital S/PDIF output

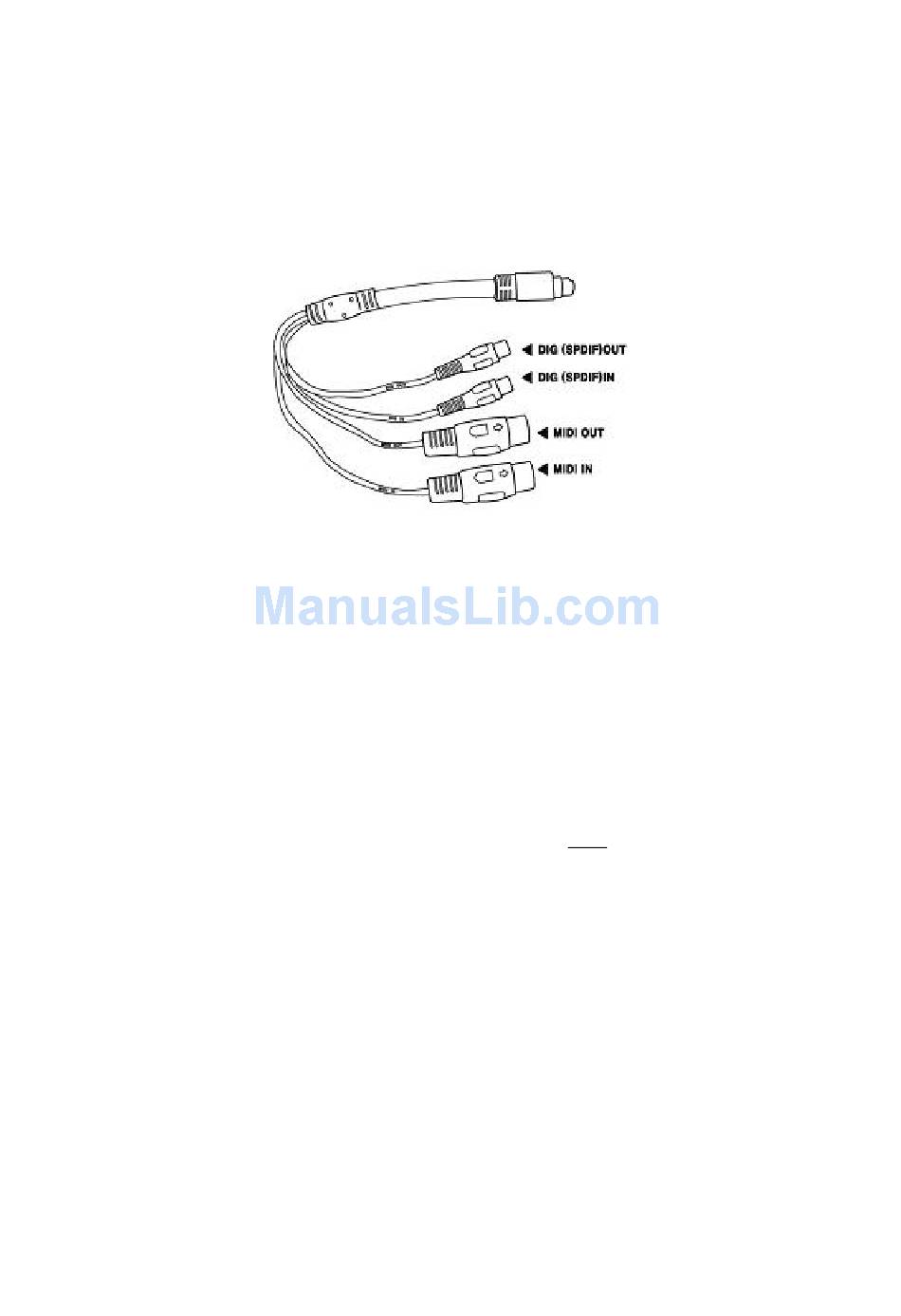

2.2 Breakout Cable

MAYA44e comes with a special breakout cable.

This cable provides coaxial S/PDIF inputs and outputs and 16 MIDI I/O channels via one MIDI

input and one MIDI output.

- Intel Pentium 4 1.0 GHz CPU or equivalent and compatible AMD CPU

- 512 MB RAM

- Direct X 8.1 or higher

- one available PCIe 1x or PCIe 16x slot

- DVD-ROM drive (for Cubase LE 4 installation)

- internet connection (for Cubase LE 4 activation)

- recent version of Microsoft Windows XP (SP2 or higher) or Windows Vista (32-bit & 64-bit)

- the latest chipset and mainboard utility drivers for your system must be installed

The MAYA44e PCIe card and other components in the computer can be damaged easily by

electrical shock. You should use an anti-static device that can discharge the static electricity of your

body to avoid potential static damage to the cards. If you do not feel capable of installing a PCIe

card into your computer please contact a computer specialist.

Turn off the computer power and remove the power cable from your computer power supply.
