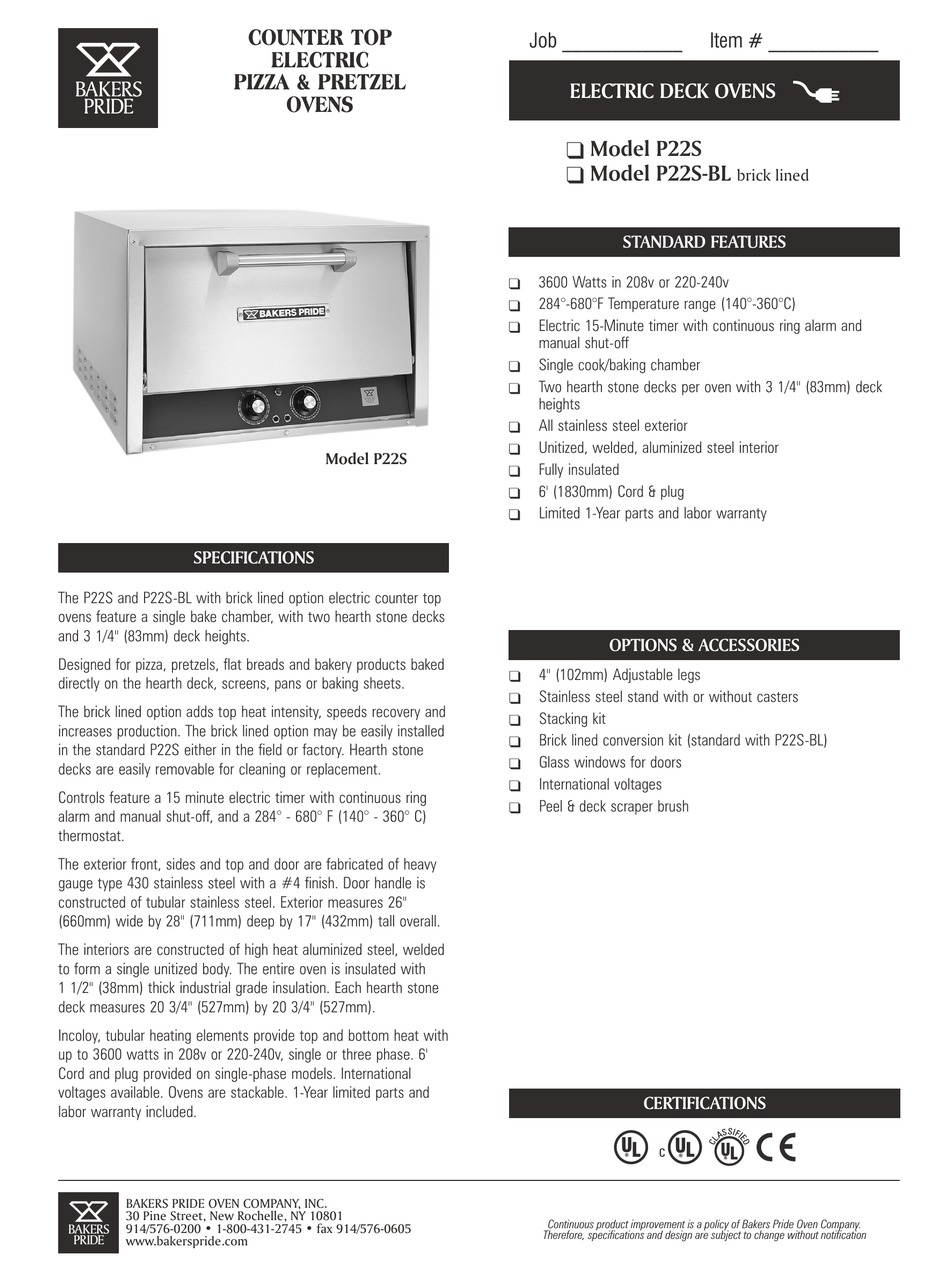

Bakers Pride P22S Specifications

PIZZA & PRETZEL
BAKERS
PRIDE
SPECIFICATIONS
The P22S and P22S-BL with brick lined option electric counter top
ovens feature a single bake chamber, with two hearth stone decks
and 3 1/4" (83mm) deck heights.
Designed for pizza, pretzels, flat breads and bakery products baked
directly on the hearth deck, screens, pans or baking sheets.
The brick lined option adds top heat intensity, speeds recovery and
increases production. The brick lined option may be easily installed
in the standard P22S either in the field or factory. Hearth stone
decks are easily removable for cleaning or replacement.
Controls feature a 15 minute electric timer with continuous ring
alarm and manual shut-off, and a 284° - 680° F (140° - 360° C)
thermostat.
The exterior front, sides and top and door are fabricated of heavy
gauge type 430 stainless steel with a #4 finish. Door handle is
constructed of tubular stainless steel. Exterior measures 26"
(660mm) wide by 28" (711mm) deep by 17" (432mm) tall overall.
The interiors are constructed of high heat aluminized steel, welded
to form a single unitized body. The entire oven is insulated with
1 1/2" (38mm) thick industrial grade insulation. Each hearth stone
deck measures 20 3/4" (527mm) by 20 3/4" (527mm).
Incoloy, tubular heating elements provide top and bottom heat with
up to 3600 watts in 208v or 220-240v, single or three phase. 6'
Cord and plug provided on single-phase models. International
voltages available. Ovens are stackable. 1-Year limited parts and
labor warranty included.
BAKERS PRIDE OVEN COMPANY, INC.
30 Pine Street, New Rochelle, NY 10801
BAKERS 914/576-0200 • 1-800-431-2745 • fax 914/576-0605
PRIDE
www.bakerspride.com
COUNTER TOP
ELECTRIC
OVENS
Model P22S
Job ____________
ELECTRIC DECK OVENS
Model P22S
q
Model P22S-BL
q
STANDARD FEATURES
3600 Watts in 208v or 220-240v
q
284°-680°F Temperature range (140°-360°C)
q
Electric 15-Minute timer with continuous ring alarm and
q
manual shut-off
Single cook/baking chamber
q
Two hearth stone decks per oven with 3 1/4" (83mm) deck
q
heights
All stainless steel exterior
q
Unitized, welded, aluminized steel interior
q
Fully insulated
q
6' (1830mm) Cord & plug
q
Limited 1-Year parts and labor warranty
q
OPTIONS & ACCESSORIES
4" (102mm) Adjustable legs
q
Stainless steel stand with or without casters
q
Stacking kit
q
Brick lined conversion kit (standard with P22S-BL)
q
Glass windows for doors
q
International voltages
q
Peel & deck scraper brush
q
CERTIFICATIONS
U L U L
C
® ®
Continuous product improvement is a policy of Bakers Pride Oven Company.
Therefore, specifications and design are subject to change without notification
Item # ___________
brick lined
U L
®
