Summary of Contents for DFI LanParty DK P35 series

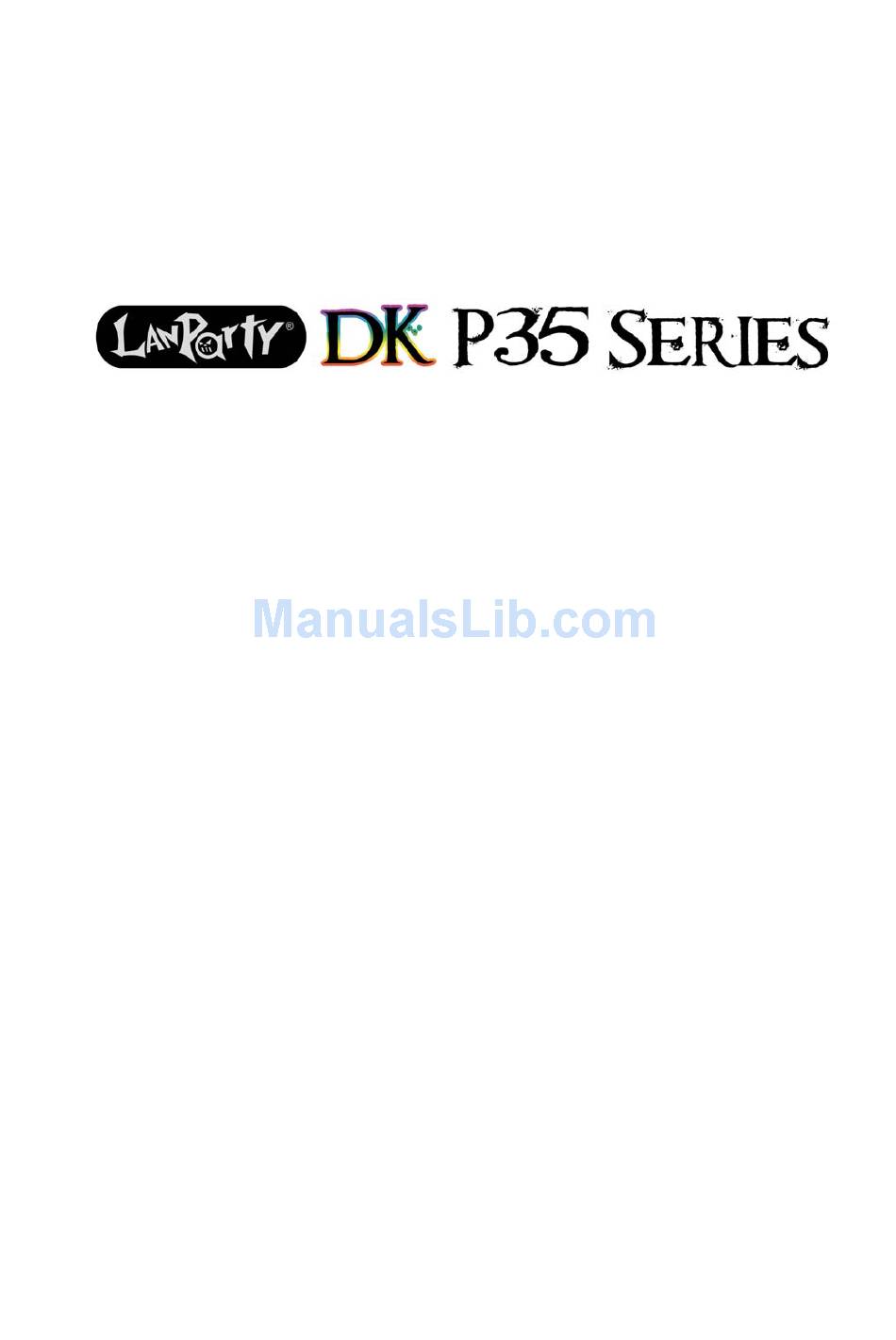

  • Page 1 System Board User’s Manual...
  • Page 2 Copyright This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior writ- ten permission from the copyright holders. This publication is provided for informational purposes only.

  • Page 3: Fcc And Doc Statement On Class B

    FCC and DOC Statement on Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation.

  • Page 4: Table Of Contents

    Table of Contents Warranty....................Static Electricity Precaution..............Safety Measures..................About the Package................Before Using the System Board............Chapter 1 - Introduction..............Specifications........................... Features.............................. Chapter 2 - Hardware Installation............ System Board Layout ......................System Memory.......................... CPU............................... Jumper Settings..........................Rear Panel I/O Ports......................Internal I/O Connectors.....................

  • Page 5: Warranty

    Warranty 1. Warranty does not cover damages or failures that arised from misuse of the product, inability to use the product, unauthorized replacement or alteration of components and product specifica- tions. 2. The warranty is void if the product has been subjected to physi- cal abuse, improper installation, modification, accidents or unau- thorized repair of the product.

  • Page 6: Static Electricity Precaution

    Introduction Static Electricity Precautions It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer components without causing any signs of physical damage. You must take extra care in handling them to ensure against electrostatic build-up.

  • Page 7: About The Package

    Introduction About the Package The system board package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance. The system board A user’s manual One IDE cable One FDD cable Two Serial ATA data cables One Serial ATA power cable One RAID floppy diskette...

  • Page 8: Chapter 1 - Introduction

    Introduction Chapter 1 - Introduction Specifications Processor • LGA 775 socket for: - Intel Core 2 Quad, Intel Core 2 Extreme, Intel Core ® ® ® Duo, Intel Pentium D or Intel Pentium ® ® ® ® • Supports Intel Enhanced Memory 64 Technology (EMT64T) •...
  • Page 9 Introduction Rear Panel I/O • 1 mini-DIN-6 PS/2 mouse port • 1 mini-DIN-6 PS/2 keyboard port • 1 optical S/PDIF-out port • 1 coaxial RCA S/PDIF-out port • 6 USB 2.0/1.1 ports • 1 RJ45 LAN port • Center/subwoofer, rear R/L and side R/L jacks •...

  • Page 10: Features

    Introduction Features DDR2 is a higher performance DDR technology whose data transfer rate delivers bandwidth of 4.3 GB per sec- ond and beyond. That is twice the speed of the conven- tional DDR without increasing its power consumption. DDR2 SDRAM modules work at 1.8V supply compared to 2.6V memory voltage for DDR modules.
  • Page 11 Introduction The Intel ICH9R chip on the LP DK P35-T2R and LP DK P35-T2RS system boards allow configuring RAID on Serial ATA devices. It supports RAID 0, RAID 1, RAID 0+1 and RAID 5. The Marvell 88E8053 PCI Express Gigabit LAN chip supports up to 1Gbps data rate.
  • Page 12 Introduction CPU Overheat Protection has the capability of moni- Overheat toring the CPU’s temperature during system boot up. Protection Once the CPU’s temperature exceeded the tempera- ture limit pre-defined by the CPU, the system will automatically shut- down. This preventive measure has been added to protect the CPU from damage and insure a safe computing environment.
  • Page 13 Introduction This feature allows the network to remotely Wake-On-LAN wake up a Soft Power Down (Soft-Off) PC. It is supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Management Event) signal. However, if your system is in the Suspend mode, you can power-on the system only through an IRQ or DMA interrupt.
  • Page 14 Introduction The system board is designed to meet the ACPI (Ad- vanced Configuration and Power Interface) specification. ACPI has energy saving features that enables PCs to implement Power Management and Plug-and-Play with operating systems that support OS Direct Power Management. ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM function.

  • Page 15: Chapter 2 - Hardware Installation

    Hardware Installation Chapter 2 - Hardware Installation System Board Layout The layout shown above is the LP DK P35-T2R/T2RS system board which supports 6 SATA ports. On the LP DK P35-T2 board, it only supports 4 SATA ports (SATA 0/1/4/5).

  • Page 16: System Memory

    Hardware Installation Warning: Electrostatic discharge (ESD) can damage your system board, proces- sor, disk drives, add-in boards, and other components. Perform the upgrade instruction procedures described at an ESD workstation only. If such a station is not available, you can provide some ESD protec- tion by wearing an antistatic wrist strap and attaching it to a metal part of the system chassis.

  • Page 17: Hardware Installation

    Hardware Installation The system board supports the following memory interface. Single Channel (SC) Data will be accessed in chunks of 64 bits (8B) from the memory channels. Virtual Single Channel (VSC) If both channels are populated with different memory configurations, the MCH defaults to Virtual Single Channel.
  • Page 18 Hardware Installation The table below lists the various optimal operating modes that should be configured for the memory channel operation. Config DIMM 1 DIMM 2 DIMM 3 DIMM 4 No memory Single channel A Single channel A Single channel A Single channel B Single channel B Single channel B...
  • Page 19 Hardware Installation DIMM 1 DIMM 2 DIMM 3 DIMM 4 Config P(*)(2,4) P(*)(2,4) Dynamic Mode Addressing P(*)(1,3) P(*)(1,3) Dynamic Mode Addressing P(*)(1,3) P(*)(2,4) P(*)(1,3) P(*)(2,4) Dynamic Mode Addressing P(*)(2,4) P(*)(2,4) Dynamic Mode Addressing P(*)(1,3) P(*)(1,3) Dynamic Mode Addressing P(*)(1,3) P(*)(2,4) P(*)(1,3) P(*)(2,4) Dynamic Mode Addressing...

  • Page 20: Installing The Memory Module

    Hardware Installation Installing the Memory Module Note: The system board used in the following illustrations may not resemble the actual board. These illustrations are for reference only. 1. Make sure the PC and all other peripheral devices connected to it has been powered down. 2.
  • Page 21 Hardware Installation 6. Grasping the module by its edges, position the module above the socket with the “notch” in the module aligned with the “key” on the socket. The keying mechanism ensures the module can be plugged into the socket in only one way. 7.

  • Page 22: Cpu

    Hardware Installation Overview The system board is equipped with a surface mount LGA 775 socket. This socket is exclusively designed for installing a LGA 775 packaged Intel CPU. Important: 1. Before you proceed, make sure (1) the LGA775 socket 1. Before you proceed, make sure (1) the LGA775 socket 1.
  • Page 23 Hardware Installation Cover 4. The CPU socket comes with a cover that is attached with a remov- able protective cap. The Protective cap cap is used to protect the CPU socket against dust and harmful parti- Lever cles. Remove the protec- tive cap only when you are about to install the CPU.
  • Page 24 Hardware Installation 8. Position the CPU above the socket. The gold mark on the CPU must align with pin 1 of the CPU socket. Important: Handle the CPU by its edges and avoid touch- ing the pins. Pin 1 of the socket Gold mark 9.
  • Page 25 Hardware Installation 10. Once the CPU is in Cover place, move the cover down. 11. Push the lever down to lock the socket. The lever should hook onto the side tab to indicate that the CPU is com- pletely secured in the Lever socket.
  • Page 26 Hardware Installation 2. Place the heat sink on Mounting hole top of the CPU. The 4 studs around the heat sink which are used to Mounting hole secure the heat sink onto the system board must match the 4 mounting holes around the socket.

  • Page 27: Jumper Settings

    Hardware Installation Jumper Settings Clear CMOS Data Clearing CMOS Data using Jumpers 1-2 On: Normal 2-3 On: (default) Clear CMOS Data PCI 1 PCI 2 1-2 On: Normal 2-3 On: (default) Clear CMOS Data PCI 3 If you encounter the following, a) CMOS data becomes corrupted.
  • Page 28 Hardware Installation To load the default values stored in the ROM BIOS, please follow the steps below. 1. Power-off the system then unplug the power cord. 2. Set JP2 or JP3 pins 2 and 3 to On. Wait for a few seconds and set JP2 or JP3 back to its default setting, pins 1 and 2 On.

  • Page 29: Usb Power Select

    Hardware Installation PS/2 Power Select 1-2 On: 5V 2-3 On: (default) 5VSB Important: The 5VSB power source of your power supply must suppor t ≥720mA. PCI 1 PCI 2 PCI 3 Selecting 5VSB will allow you to use the PS/2 keyboard or PS/2 mouse to wake up the system.
  • Page 30 Hardware Installation CPU FSB Select JP14 JP16 JP15 PCI 1 PCI 2 PCI 3 By default, the three jumpers are all set to pins 1 and 2 On. This setting will allow the system to automatically run according to the CPU’s FSB.

  • Page 31: Rear Panel I/O Ports

    Hardware Installation Secondary RTC Reset JP12 PCI 1 1-2 On: Normal 2-3 On: PCI 2 (default) RTC reset PCI 3 When the RTC batter y is removed, this jumper resets the manageability register bits in the RTC. Note: 1. The SRTCRST# input must always be high when all other RTC power planes are on.
  • Page 32 Hardware Installation PS/2 Ports and S/PDIF Ports PS/2 Mouse PS/2 KB Optical S/PDIF Coaxial RCA S/PDIF PCI 1 PCI 2 PCI 3 PS/2 Mouse and PS/2 Keyboard Ports These ports are used to connect a PS/2 mouse and a PS/2 key- board.
  • Page 33 Hardware Installation USB Ports and LAN Port USB 9 USB 8 USB 7 USB 6 USB 11 USB 10 PCI 1 PCI 2 PCI 3 USB 4-5 USB 0-1 USB 2-3 USB Ports The USB ports are used to connect USB 2.0/1.1 devices. The 10-pin connectors allow you to connect 6 additional USB 2.0/1.1 ports.
  • Page 34 Hardware Installation Audio Rear audio Center/ Line-in Subwoofer Front R/L Rear R/L Mic-in Side R/L Front audio PCI 1 PCI 2 PCI 3 Right audio channel Ground CD-in Ground Left audio channel Rear Panel Audio Center/Subwoofer Jack (Orange) This jack is used to connect to the center and subwoofer speak- ers of the audio system.

  • Page 35: Internal I/O Connectors

    Hardware Installation Mic-in Jack (Pink) This jack is used to connect an external microphone. Front Audio The front audio connector is used to connect to the line-out and mic-in jacks that are at the front panel of your system. CD-in The CD-in connector is used to receive audio from a CD-ROM drive, TV tuner or MPEG card.
  • Page 36 Hardware Installation Floppy Disk Drive Connector and IDE Connector PCI 1 PCI 2 PCI 3 Floppy Disk Drive Connector The floppy disk drive connector is used to connect a floppy drive. Insert one end of the floppy cable into this connector and the other end-most connector to the floppy drive.
  • Page 37 Hardware Installation IrDA and Serial (COM) Connectors IRRX N. C. Ground IRTX IrDA PCI 1 PCI 2 COM 1 PCI 3 IrDA Connector This connector is used to connect an IrDA module. Note: The sequence of the pin functions on some IrDA cable may be reversed from the pin function defined on the system board.

  • Page 38: Cooling Fan Connectors

    Hardware Installation Cooling Fan Connectors Sense Power Speed Ground Control CPU fan On/Off Power Sense Fan 2 PCI 1 PCI 2 N. C. Ground PCI 3 Power Fan 3 These fan connectors are used to connect cooling fans. Cooling fans will provide adequate airflow throughout the chassis to prevent over- heating the CPU and system board components.

  • Page 39: Power Connectors

    Hardware Installation Power Connectors Use a power supply that complies with the ATX12V Power Supply Design Guide Version 1.1. An ATX12V power supply unit has a standard 24-pin ATX main power connector that must be inserted into this connector. 1 2 2 4 +3.3VDC +12VDC +5VDC...
  • Page 40 Hardware Installation The power connectors from the power supply unit are designed to fit the 24-pin and 8-pin connectors in only one orientation. Make sure to find the proper orientation before plugging the connectors. The FDD-type power connector is an additional power connector. If you are using more than one graphics cards, we recommend that you plug a power cable from your power supply unit to the 5V/12V power connector.
  • Page 41 Hardware Installation Restarting the PC Normally, you can power-off the PC by: 1. Pressing the power button at the front panel of the chassis. 2. Pressing the power switch that is on the system board (note: not all system boards come with this switch). If for some reasons you need to totally cut off the power supplied to the PC, switch off the power supply or unplug the power cord.
  • Page 42 Hardware Installation Front Panel Connectors and LEDs DRAM Power LED RESET PCI 1 SPEAKER HD-LED PCI 2 PCI 3 Standby PWR-LED Power LED ATX-SW HD-LED: Primary/Secondary IDE LED This LED will light when the hard drive is being accessed. RESET: Reset Switch This switch allows you to reboot without having to power off the system thus prolonging the life of the power supply or system.
  • Page 43 Hardware Installation PWR-LED: Power/Standby LED When the system’s power is on, this LED will light. When the system is in the S1 (POS - Power On Suspend) or S3 (STR - Suspend To RAM) state, it will blink every second. Note: If a system did not boot-up and the Power/Standby LED did not light after it was powered-on, it may indicate that the CPU...
  • Page 44 Hardware Installation PCI Express Slots PCI Express x16 PCI Express x1 PCI Express x1 PCI 1 PCI 2 PCI 3 PCI Express x16 Install PCI Express x16 graphics card, that comply to the PCI Ex- press specifications, into the PCI Express x16 slot. To install a graph- ics card into the x16 slot, align the graphics card above the slot then press it down firmly until it is completely seated in the slot.

  • Page 45: Chapter 3 - Bios Setup

    BIOS Setup Chapter 3 - BIOS Setup Award BIOS Setup Utility The Basic Input/Output System (BIOS) is a program that takes care of the basic level of communication between the processor and pe- ripherals. In addition, the BIOS also contains codes for various ad- vanced features found in this system board.

  • Page 46: Standard Cmos Features

    BIOS Setup Standard CMOS Features Use the arrow keys to highlight “Standard CMOS Features” then press <Enter>. A screen similar to the one below will appear. Phoenix - AwardBIOS CMOS Setup Utility Standard CMOS Features Date <mm:dd:yy> Tue, Oct 30 2007 Item Help Time <hh:mm:ss>...

  • Page 47: Bios Setup

    BIOS Setup IDE Channel 0 Master to IDE Channel 4 Slave To configure the IDE drives, move the cursor to a field then press <Enter>. The following screen will appear. Phoenix - AwardBIOS CMOS Setup Utility IDE Channel 0 Master Press Enter IDE HDD Auto-Detection Item Help...
  • Page 48 BIOS Setup Capacity Displays the approximate capacity of the disk drive. Usually the size is slightly greater than the size of a formatted disk given by a disk checking program. Cylinder This field displays the number of cylinders. Head This field displays the number of read/write heads. Precomp This field displays the number of cylinders at which to change the write timing.
  • Page 49 BIOS Setup Video This field selects the type of video adapter used for the primary system monitor. Although secondary monitors are supported, you do not have to select the type. The default setting is EGA/VGA. EGA/VGA Enhanced Graphics Adapter/Video Graphics Array. For EGA, VGA, SVGA and PGA monitor adapters.
  • Page 50 BIOS Setup Extended Memory Displays the amount of extended memory detected during boot-up. Total Memory Displays the total memory available in the system.

  • Page 51: Advanced Bios Features

    BIOS Setup Advanced BIOS Features The Advanced BIOS Features allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference. Phoenix - AwardBIOS CMOS Setup Utility Advanced BIOS Features Press Enter...
  • Page 52 BIOS Setup Hard Disk Boot Priority This field is used to select the boot sequence of the hard drives. Move the cursor to this field then press <Enter>. Use the Up or Down arrow keys to select a device then press <+> to move it up or <->...
  • Page 53 BIOS Setup Quick Power On Self Test This field speeds up Power On Self Test (POST) whenever the sys- tem is powered on. The BIOS will shorten or skip some check items during POST. To attain the shortest POST time, select “Fast”. First Boot Device, Second Boot Device, Third Boot Device and Boot Other Device Select the drive to boot first, second and third in the “First Boot...
  • Page 54 BIOS Setup MPS Version Control for OS This field is used to select the MPS version that the system board is using. HDD S.M.A.R.T. Capability The system board supports SMART (Self-Monitoring, Analysis and Reporting Technology) hard drives. SMART is a reliability prediction technology for ATA/IDE and SCSI drives.

  • Page 55: Advanced Chipset Features

    BIOS Setup Advanced Chipset Features Phoenix - AwardBIOS CMOS Setup Utility Advanced Chipset Features Memory Hole at 15M-16M Disabled Item Help PCI-E Compliancy Mode v1.0a Menu Level ↑↓→← : Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults...

  • Page 56: Integrated Peripherals

    BIOS Setup Integrated Peripherals Phoenix - AwardBIOS CMOS Setup Utility Integrated Peripherals Item Help OnChip IDE Device Press Enter Onboard Device Press Enter Menu Level Super IO Device Press Enter USB Device Setting Press Enter ↑↓→← : Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit...
  • Page 57 BIOS Setup SATA Mode This field is used to configure the SATA devices supported by the Intel ICH9R. This option configures the Serial ATA drives as Parallel ATA storage devices. RAID This option allows you to create RAID or Intel Matrix Storage configuration on Serial ATA devices.

  • Page 58: Onboard Device

    BIOS Setup Onboard Device Phoenix - AwardBIOS CMOS Setup Utility Onboard Device Item Help Onboard LAN Enabled Onboard HD Audio Enabled Menu Level ↑↓→← : Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults The settings on the screen are for reference only.
  • Page 59 BIOS Setup Super IO Device Phoenix - AwardBIOS CMOS Setup Utility Super IO Device Disabled Power On By Mouse Item Help Power On By Keyboard Button Only Menu Level x Power On By Button Enabled Enter x KB Power On Password x Hot Key Power On Ctrl-F1 Onboard FDC Controller...
  • Page 60 BIOS Setup Power On By Button To use the power button to power on the system, set this field to Enabled. KB Power On Password Move the cursor to this field and press <Enter>. Enter your pass- word. You can enter up to 5 characters. Type in exactly the same password to confirm, then press <Enter>.
  • Page 61 BIOS Setup IR Mode Select This field is used to select the type of IrDA standard supported by your IrDA device. For better transmission of data, your IrDA periph- eral device must be within a 30 angle and within a distance of 1 meter.

  • Page 62: Usb Device Setting

    BIOS Setup USB Device Setting Phoenix - AwardBIOS CMOS Setup Utility USB Device Setting USB 1.0 Controller Enabled Item Help USB 2.0 Controller Enabled Menu Level USB Operation Mode Full/Low Speed USB Keyboard Function Enabled [Enable] or [Disable] USB Mouse Function Enabled Universal Host USB Storage Function...
  • Page 63 BIOS Setup USB Keyboard Function Due to the limited space of the BIOS ROM, the support for legacy USB keyboard (in DOS mode) is by default set to Disabled. With more BIOS ROM space available, it will be able to support more advanced features as well as provide compatibility to a wide variety of peripheral devices.

  • Page 64: Power Management Setup

    BIOS Setup Power Management Setup The Power Management Setup allows you to configure your system to most effectively save energy. Phoenix - AwardBIOS CMOS Setup Utility Power Management Setup ACPI Suspend Type S1(POS) Item Help x Run VGABIOS if S3 Resume Auto Menu Level User Define...
  • Page 65 BIOS Setup Power Management This field allows you to select the type (or degree) of power saving by changing the length of idle time that elapses before the “HDD Power Down” field is activated. Min Saving Minimum power saving time for the “HDD Power Down”...
  • Page 66 BIOS Setup Wake-Up by PCI Card Enabled This field should be set to Enabled only if your PCI card such as LAN card or modem card uses the PCI PME (Power Management Event) signal to re- motely wake up the system. Access to the LAN card or PCI card will cause the system to wake up.
  • Page 67 BIOS Setup Time (hh:mm:ss) of Alarm This is used to set the time you would like the system to power-on. Reload Global Timer Events When enabled, access to the specified field (FDD/COM/LPT Port, PCI PIRQ[A-D]#, HPET Support, HPET Mode, WDRT Support, WDRT Run/Stop, WDRT Count) will cause the system to wake up completely from the power management mode.

  • Page 68: Init Display First

    BIOS Setup PnP/PCI Configurations This section describes configuring the PCI bus system. It covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings. Phoenix - AwardBIOS CMOS Setup Utility PnP/PCI Configurations Init Display First PCI Slot...

  • Page 69: Irq Resources

    BIOS Setup IRQ Resources Move the cursor to this field and press <Enter>. This field is used to set each system interrupt to either Reserved or PCI Device. Phoenix - AwardBIOS CMOS Setup Utility IRQ Resources IRQ-3 assigned to PCI Device Item Help IRQ-4 assigned to PCI Device...

  • Page 70: Pc Health Status

    BIOS Setup PC Health Status Phoenix - AwardBIOS CMOS Setup Utility PC Health Status Shutdown Temperature C/185 Item Help >50 CPUFan Fully On If CPUTemp Menu Level <25 CPUFan Turn OFF if CPUTemp CPU Core Voltage 1.32V 1.95V DRAM Voltage NB Core Voltage 1.32V CPU VTT Voltage...
  • Page 71 BIOS Setup 2. If you want to reduce the CPU fan’s noise or prevent CPU overheat, select a lower temperature in the “CPUFan Fully On If CPUTemp” field to allow the CPU fan to rotate full speed at the selected lower temperature. CPU Core Voltage to Battery Voltage These fields will show the monitored output voltages.

  • Page 72: Genie Bios Setting

    BIOS Setup Genie BIOS Setting Phoenix - AwardBIOS CMOS Setup Utility Genie BIOS Setting Item Help CPU Feature Press Enter DRAM Timing Press Enter Menu Level Voltage Setting Press Enter Exit Setup Shutdown Mode 2 Clock VCO Divider Auto x CPU Clock Ratio Target CPU Clock 2128 MHz CPU Clock...
  • Page 73 BIOS Setup CPU Clock This field provides several options for selecting the external system bus clock of the processor. The available options allow you to adjust the processor’s bus clock by 1MHz increment. Important: Selecting an external bus clock other than the default setting may result to the processor’s or system’s instability and are not guaranteed to provide better system performance.
  • Page 74 BIOS Setup CPU Feature Move the cursor to this field and press <Enter>, the following screen will appear: Phoenix - AwardBIOS CMOS Setup Utility CPU Feature Thermal Management Control Enabled Item Help Enabled PPM(EIST) Mode Menu Level Disabled Limit CPUID MaxVal C1E Function Auto Execute Disable Bit...
  • Page 75 BIOS Setup Execute Disable Bit When this field is set to Disabled, it will force the XD feature flag to always return to 0. Virtualization Technology When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. Core Multi-processing The options are Enabled and Disabled.

  • Page 76: Dram Timing

    BIOS Setup DRAM Timing Move the cursor to this field and press <Enter>. The following screen will appear. Phoenix - AwardBIOS CMOS Setup Utility DRAM Timing Item Help Auto Enhance Data Transmitting Auto Enhance Addressing Menu Level Auto T2 Dispatch Clock Setting Fine Delay Press Enter Auto...
  • Page 77 BIOS Setup CAS Latency Time (tCL) This field is used to select the clock cycle of the CAS latency time. The option selected specifies the timing delay before SDRAM starts a read command after receiving it. RAS# to CAS# Delay (tRCD) This field is used to select the RAS# to CAS# delay time when reading and writing to the same bank.
  • Page 78 BIOS Setup Rank Write to Read (tWTR) The options are Auto, and 6 to 18. ACT to ACT Delay (tRRD) The options are Auto, and 1 to 15. Read to Write Delay (tRDWR) This field is used to select the read to write delay time. Although this is not a DRAM specified timing parameter, it is related to the routing latencies on the clock forwarded bus.
  • Page 79 BIOS Setup Clock Setting Fine Delay Move the cursor to this field and press <Enter>. The following screen will appear. Phoenix - AwardBIOS CMOS Setup Utility Clock Setting Fine Delay Item Help Ch1 Clock Crossing Setting Auto DIMM 1 Clock Fine Delay Current [2] Menu Level Current [7]...
  • Page 80 BIOS Setup Ch1Ch2 CommonClock Setting The options are Auto, More Aggressive, Aggressive, Nominal, Relaxed and More Relaxed. Ch1 RDCAS GNT-Chip Delay The options are Auto, 1CLK to 7CLK. Ch1 WRCAS GNT-Chip Delay The options are Auto, 1CLK to 7CLK. Ch1 Command to CS Delay The options are Auto, 1CLK to 7CLK.
  • Page 81 BIOS Setup Read Delay Phase Adjust Move the cursor to this field and press <Enter>. The following screen will appear. Phoenix - AwardBIOS CMOS Setup Utility Read Delay Phase Adjust Item Help Channel 1 Phase 0 Pull-In Auto Channel 1 Phase 1 Pull-In Auto Menu Level Auto...
  • Page 82 BIOS Setup Voltage Setting Move the cursor to this field and press <Enter>. The following screen will appear. Phoenix - AwardBIOS CMOS Setup Utility Voltage Setting Item Help Auto CPU VID Special Add 1.925V DRAM Voltage Control Menu Level 1.070V SB 1.05V Voltage 1.55V SB Core/CPU PLL Voltage...
  • Page 83 BIOS Setup CPU VTT Voltage This field is used to select the CPU’s voltage. Clockgen Voltage Control This field is used to select the clock generator’s voltage. CPU GTL 0/2 REF Volt and CPU GTL 1/3 REF Volt These fields are used to configure the CPU GTL REF voltage. Northbridge GTL REF Volt This field is used to configure the Northbridge GTL REF voltage.

  • Page 84: Cmos Reloaded

    BIOS Setup CMOS Reloaded The CMOS Reloaded submenu allows you to save different configu- rations and when needed, allows you to conveniently restore one of these previously saved configurations. Highlight CMOS Reloaded in the main menu then press <Enter>. Phoenix - AwardBIOS CMOS Setup Utility CMOS Reloaded Item Help Auto Save Bootable Setting...
  • Page 85 BIOS Setup Auto Save Bootable Setting This field is used to automatically save the last bootable setting from CMOS to an area in the SEEPROM referred to as the backup bank. To use this function: 1. Set this field to Enabled. 2.
  • Page 86 BIOS Setup Saving, Loading and Naming BIOS Settings For overclockers who require different sets of settings for various system environments or operating systems, CMOS Reloaded allows you to save, load and name up to four sets of BIOS settings - in the “User Defined Setting Bank #1”...
  • Page 87 BIOS Setup Load from this Bank To load the setting saved in the bank, move the cursor to “Load from this Bank” then press <Enter>. The setting in this bank will replace the current setting. Make sure to save before you exit the BIOS setup utility by selecting “Y”...

  • Page 88: Load Optimized Defaults

    BIOS Setup Load Optimized Defaults The “Load Optimized Defaults” option loads optimized settings from the BIOS ROM. Use the default values as standard values for your system. Highlight this option in the main menu and press <Enter>. Phoenix - AwardBIOS CMOS Setup Utility Standard CMOS Features Genie BIOS Setting Advanced BIOS Features...

  • Page 89: Set Supervisor Password

    BIOS Setup Set Supervisor Password If you want to protect your system and setup from unauthorized entry, set a supervisor’s password with the “System” option selected in the Advanced BIOS Features. If you want to protect access to setup only, but not your system, set a supervisor’s password with the “Setup”...

  • Page 90: Set User Password

    BIOS Setup Set User Password If you want another user to have access only to your system but not to setup, set a user’s password with the “System” option se- lected in the Advanced BIOS Features. If you want a user to enter a password when trying to access setup, set a user’s password with the “Setup”...

  • Page 91: Save & Exit Setup

    BIOS Setup Save & Exit Setup When all the changes have been made, highlight “Save & Exit Setup” and press <Enter>. Phoenix - AwardBIOS CMOS Setup Utility Standard CMOS Features Genie BIOS Setting Advanced BIOS Features CMOS Reloaded Advanced Chipset Features Load Optimized Defaults Integrated Peripherals Set Supervisor Password...

  • Page 92: Exit Without Saving

    BIOS Setup Exit Without Saving When you do not want to save the changes you have made, high- light “Exit Without Saving” and press <Enter>. Phoenix - AwardBIOS CMOS Setup Utility Standard CMOS Features Genie BIOS Setting Advanced BIOS Features CMOS Reloaded Advanced Chipset Features Load Optimized Defaults...

  • Page 93: Raid Bios

    BIOS Setup RAID BIOS The Intel RAID BIOS utility is used to configure and manage RAID on Serial ATA drives. When the system powers-up and all drives have been detected, the Intel RAID BIOS status message screen will appear. Press the <Ctrl>...

  • Page 94: Updating The Bios

    Updating the BIOS To update the BIOS, you will need the new BIOS file and a flash utility, AWDFLASH.EXE. You can download them from DFI’s web site or contact technical support or your sales representative. 1. Save the new BIOS file along with the flash utility AWDFLASH.EXE to a floppy disk.
  • Page 95 BIOS Setup 6. The following will appear. Do You Want to Save BIOS (Y/N) This question refers to the current existing BIOS in your system. We recommend that you save the current BIOS and its flash utility; just in case you need to reinstall the BIOS. To save the current BIOS, press <Y>...

  • Page 96: Chapter 4 - Supported Software

    Supported Software Chapter 4 - Supported Software Drivers, Utilities and Software Applications The CD that came with the system board contains drivers, utilities and software applications required to enhance the performance of the system board. Insert the CD into a CD-ROM drive. The autorun screen will appear. If after inserting the CD, "Autorun"...

  • Page 97: Supported Software

    Supported Software Intel Chipset Device Software On the left side of the autorun screen, click the “CHIPSET” icon. 1. Click “Intel(R) Chipset Device Software” on the main menu. 2. Setup is now ready to install the utility. Click Next.
  • Page 98 Supported Software 3. Read the license agree- ment then click Yes. 4. Go through the readme document for system requirements and instal- lation tips then click Next. 5. Setup is now installing the driver. Click Next to continue.
  • Page 99 Supported Software 6. Click “Yes, I want to restar t this computer now” then click Finish. Restar ting the system will allow the new software installation to take effect.
  • Page 100 Supported Software Microsoft .NET Framework On the left side of the autorun screen, click the “GRAPHICS” icon. 1. Click “Microsoft .NET Framework” on the main menu. 2. Setup is now ready to install the utility. Click Next.
  • Page 101 Supported Software 3. Read license agreement then click “I accept the terms of the License Agreement. ” . Click Install. 4. Setup is now installing the driver.
  • Page 102 Supported Software 5. Click Finish. Reboot the system for the new software installation to take effect. Graphics Drivers The CD provides both ATI Radeon driver and nVidia GForce driver. Install the driver according to the graphics card that you are using. For ATI Radeon graphics card, select ATI Radeon Driver.

  • Page 103: Realtek Audio Drivers

    Supported Software Realtek Audio Drivers On the left side of the autorun screen, click the “AUDIO” icon. 1. Click “Realtek Audio Drivers” on the main menu. 2. Setup is now ready to install the audio driver. Click Next. 3. Setup currently configuring the new driver’s installation.
  • Page 104 Supported Software 4. Setup is now processing the settings. 5. Select the desired option then click Next. 6. Click “Yes, I want to restar t my computer now” then click Finish. Restar ting the system will allow the new software installation to take effect.
  • Page 105 Supported Software RAID Drivers On the left side of the autorun screen, click the “RAID” icon. The RAID Drivers menu includes drivers and utility that must be installed when using RAID configured Serial ATA devices.
  • Page 106 Supported Software Marvell LAN Drivers - 32bits On the left side of the autorun screen, click the “NETWORK” icon. 1. Click “Mar vell LAN Drivers - 32bits” on the main menu. 2. Setup is now ready to install the driver. Click Next.
  • Page 107 Supported Software 4. Click Install to begin the installation. 5. After completing installa- tion, click Finish to exit setup. Reboot your system for software installation to take effect.
  • Page 108 Supported Software Marvell Teaming Utility On the left side of the autorun screen, click the “NETWORK” icon. 1. Click “Marvell Teaming Utility” on the main menu. 2. Setup is now preparing the wizard. 3. Setup is now ready to install the utility. Click Next.
  • Page 109 Supported Software 4. Read license agreement, click “I accept the terms in the license agreement.” then click Next. 5. Go through the readme document for system requirements and installa- tion tips then click Next. 6. Click Install to begin the installation.
  • Page 110 Supported Software 7. Click Finish.
  • Page 111 Supported Software ITE Smart Guardian The ITE Smart Guardian utility is capable of monitoring the system’s tem- perature, fan speed, voltage, etc. and allows you to manually set a range (Highest and Lowest Limit) to the items being monitored. If the settings/ values are over or under the set range, a warning message will pop-up.
  • Page 112 Supported Software 3. Fill in the necessar y information then click Next.. 4. Click Next to install or click Browse to select another folder. 5. Select an option in accordance to the system that you are using then click Next.
  • Page 113 Supported Software 6. After completing installa- tion, click Finish to exit setup. Restarting the system will allow the utility to take effect.

  • Page 114: Installation Notes

    3. All steps or procedures to install software drivers are subject to change without notice as the softwares are occassionally updated. Please go to DFI's web site at "http://www.dfi.com/support1/ download2.asp" for the latest version of the drivers or software applications.

  • Page 115: Chapter 5 - Raid

    RAID Chapter 5 - RAID The LP DK P35-T2R / LP DK P35-T2RS system board allows configuring RAID on Serial ATA drives. It supports RAID 0, RAID 1, RAID 0+1 and RAID 5. RAID Levels RAID 0 (Striped Disk Array without Fault Tolerance) RAID 0 uses two new identical hard disk drives to read and write data in parallel, interleaved stacks.
  • Page 116 RAID Settings To enable the RAID function, the following settings are required. 1. Connect the Serial ATA drives. 2. Configure Serial ATA in the Award BIOS. 3. Configure RAID in the RAID BIOS. 4. Install the RAID driver during OS installation. 5.
  • Page 117 RAID Step 2: Configure Serial ATA in the Award BIOS 1. Power-on the system then press <Del> to enter the main menu of the Award BIOS. 2. Select the Integrated Peripherals submenu - OnChip IDE Device section of the BIOS. 3.
  • Page 118 RAID Step 4: Install the RAID Driver During OS Installation ® The RAID driver must be installed during the Windows XP or ® Windows 2000 installation using the F6 installation method. This is required in order to install the operating system onto a hard drive or RAID volume when in RAID mode or onto a hard drive when in AHCI mode.
  • Page 119 RAID Step 5: Install the Intel Matrix Storage Manager The Intel Matrix Storage Manager can be installed from within Windows. It allows RAID volume management (create, delete, migrate) from within the operating system. It will also display useful SATA device and RAID volume information.
  • Page 120 RAID 5. Read warning carefully then click Next. 6. Read license agreement then click Yes. 7. Go through the readme document view system requirements and installation information then click Next. 8. Follow the remainder of the steps shown on the screen; clicking “Next” each time you finish a step.

  • Page 121: Appendix A - System Error Message

    System Error Message Appendix A - System Error Message When the BIOS encounters an error that requires the user to correct something, either a beep code will sound or a message will be displayed in a box in the middle of the screen and the message, PRESS F1 TO CONTINUE, CTRL-ALT-ESC or DEL TO ENTER SETUP, will be shown in the information box at the bottom.
  • Page 122 System Error Message setting than indicated in Setup. Determine which setting is correct, either turn off the system and change the jumper or enter Setup and change the VIDEO selection. FLOPPY DISK(S) fail (80) Unable to reset floppy subsystem. FLOPPY DISK(S) fail (40) Floppy type mismatch.

  • Page 123: Appendix B - Troubleshooting

    Troubleshooting Appendix B - Troubleshooting Troubleshooting Checklist This chapter of the manual is designed to help you with problems that you may encounter with your personal computer. To efficiently troubleshoot your system, treat each problem individually. This is to ensure an accurate diagnosis of the problem in case a problem has multiple causes.

  • Page 124: Troubleshooting

    Troubleshooting The picture seems to be constantly moving. 1. The monitor has lost its vertical sync. Adjust the monitor’s vertical sync. 2. Move away any objects, such as another monitor or fan, that may be creating a magnetic field around the display. 3.

  • Page 125: Hard Drive

    Troubleshooting Hard Drive Hard disk failure. 1. Make sure the correct drive type for the hard disk drive has been entered in the BIOS. 2. If the system is configured with two hard drives, make sure the bootable (first) hard drive is configured as Master and the sec- ond hard drive is configured as Slave.

  • Page 126: System Board

    Troubleshooting 3. Verify that the attached serial device works by attaching it to a serial port that is working and configured correctly. If the serial device does not work, either the cable or the serial device has a problem. If the serial device works, the problem may be due to the onboard I/O or the address setting.
