Electrolux 584089 Specification Sheet

Modular cooking range line s90 heavy duty half module gas char-broiler, open base, c-board.
Hide thumbs


Advertisement

Modular Cooking Range Line
S90 Heavy Duty Half Module Gas
Char-Broiler, Open Base, C-Board
Modular Cooking Range Line
S90 Heavy Duty Half Module Gas
Char-Broiler, Open Base, C-Board
584089 (WDGRAFOOOO) S90 Half Module Gas
Short Form Specification
Item No. ___________________________________
Unit to be Electrolux S90 Heavy Duty Half Module Gas Char-Broiler
with open base. Unit to have high efficiency 41,000 BTU (20kW) stain-
less steel burners with self stabilizing flame. Cooking surface grids to
be of cast iron, easily removable for cleaning. Cast iron grids can be
rotated for the grilling of fish or meats. Unit to have raised rear c-
board for against the wall or back to back unit installation. Unit to
include drip tray for the collection of grease and fat. Body and open
base of unit entirely in 304 type stainless steel and basin made of
high grade 316 type stainless steel. Unit shall have heavy duty 304
type stainless steel internal frame with reinforcement on the top of
0.118" (3 mm). Extra strength work top in heavy duty 0.118" (3 mm)
stainless steel. "Lastertec" connection system permits units to be
connected to each other creating a seamless work top.
Covered by Electrolux Platinum Star® Service Program two-year
parts and one-year labor warranty, installation start-up and
performance check-up after one year from installation.
Approval: ___________________________________________
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789

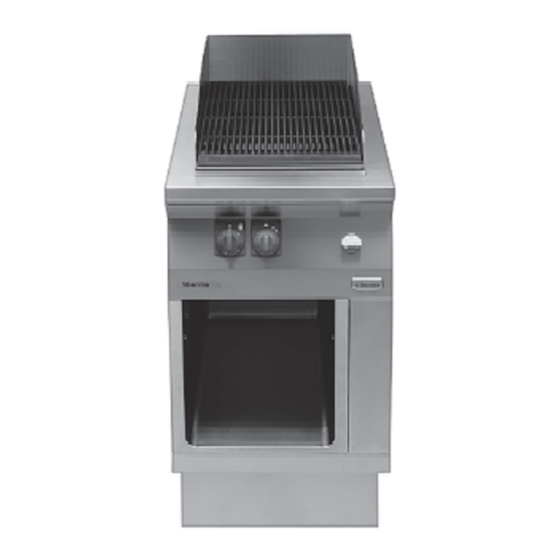

Char-Broiler, open base,
c-board, 1 side operation
Electrolux Professional, Inc.
www.electroluxusa.com/professional
ITEM # _______________________________________________
MODEL # _____________________________________________
PROJECT NAME # ______________________________________
SIS # _________________________________________________
AIA # _________________________________________________
Main features
• 304 type stainless steel burners with self stabilizing flame.
• Each burner has 3 branches and the gas holes are protected by the radiant
elements to prevent fat dripping on them.
• Regulators with fixed high and low positions for precise control.
• Cast iron cooking grid lifts off for ease of cleaning.
• Cast iron grids can be rotated for grilling of fish or meats.
• Drip tray to collect residual cooking grease and fat.
• Stainless steel high splash guards on the rear and sides. Splash guards
can be easily removed for cleaning.
• Open base compartment for storage of pots, pans sheet pans etc.
• Piezo spark ignition with thermocouple for added safety.
• Heavy duty internal frame 304 type stainless steel with reinforcement on
top of 0.118" (3 mm).
• Basin made of high grade 316 type stainless steel.
• 0.118" (3 mm) top in 305 type stainless steel.
• "Lasertec connection system" creates seamless work top when units are
connected to each other.
• Raised rear c-board permits unit to be connected up against the wall for
better hygiene.
• Unit delivered with four 7-7/8" (200 mm) legs as standard (all round
stainless steel plinth as option).
• Scraper for cleaning of grilling grids included.
Optional Accessories
• Set 4 castors (2 with brake).
• Left side stainless steel 0.118" (3 mm) panel.
• Right side stainless steel 0.118" (3 mm) panel.
• 5" (130 mm) portioning shelf.
• 7.8" (200 mm) portioning shelf.
• All round stainless steel plinth.
• Shelf for open base.
• Shelf fixation kit for open base.
