DESCRIPTION
1
Literature
W10181328 Use & Care Guide
W10175654 Insallation
Instructions
W10181003 Tech Sheet
98007130 Safer Cooking Tips
98015589 Template, Anti−Tip
2 W10183393 Knob, Control (5)
3 W10168363 Support, Burner
4 W10187996 Panel, Manifold
2−09 Litho in U.S.A. (JMJ) (psw)

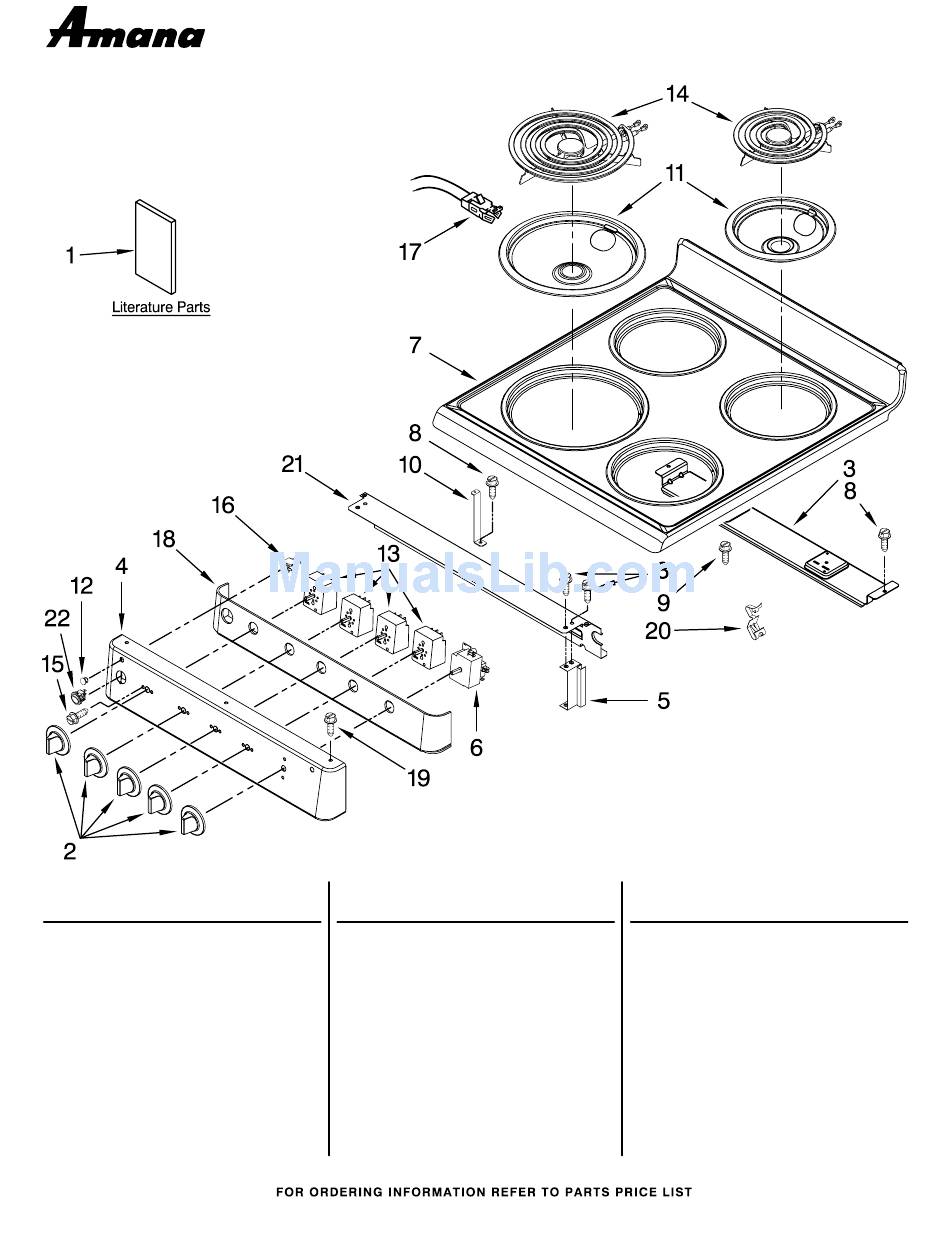

COOKTOP PARTS
For Model: AEP222VAW0
(White)
Illus.
Part
No.
No.
DESCRIPTION
5 W10206396 Bracket, Support
6 W10179656 Thermostat
7 W10175582 Cooktop
8
98006633 Screw (2)
9
98005578 Screw (5)
10 W10161199 Bracket, Cooktop
11
Bowl, Chrome
W10179653 8" (1)
W10179650 6" (3)
12 W10179657 Indicator, Lens
13
Switch, Infinite
W10179654 Left Front
W10179655 LR, RF & RR
1
20" ELECTRIC
FREESTANDING RANGE
STANDARD CLEAN OVEN
Illus.
Part
No.
No.
DESCRIPTION
14
Element, Surface
W10179646 8" (1)
W10179644 6" (3)
15
98005663 Screw (10)
16 W10185551 Indicator, Light
17
814399 Receptacle, Elmnt
18 W10190578 Foil, Panel
19
98005000 Screw (4)
20
98005642 Clip, Therm Bulb
21 W10159818 Shield, Control
22
98011571 Switch, Light
Part No. W10245886 Rev. A
