Amana AER5830VAW0 Parts List
30" electric ceran freestanding range and self clean convection oven
Hide thumbs
Also See for AER5830VAW0:
- User instructions (12 pages) ,
- Installation instructions manual (12 pages)
Advertisement
Table of Contents
For Models: AER5830VAW0, AER5830VAB0, AER5830VAD0, AER5830VAS0
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10196163 Owner's Manual
W10246520 Tech Sheet
W10196158 Installation
Instructions
Template, Anti−Tip
9757143 English/French
9757142 English/Spanish
9762761 Brochure, Tips
Safe Cooking
12−10 Litho in U.S.A. (JMJ) (eeb)

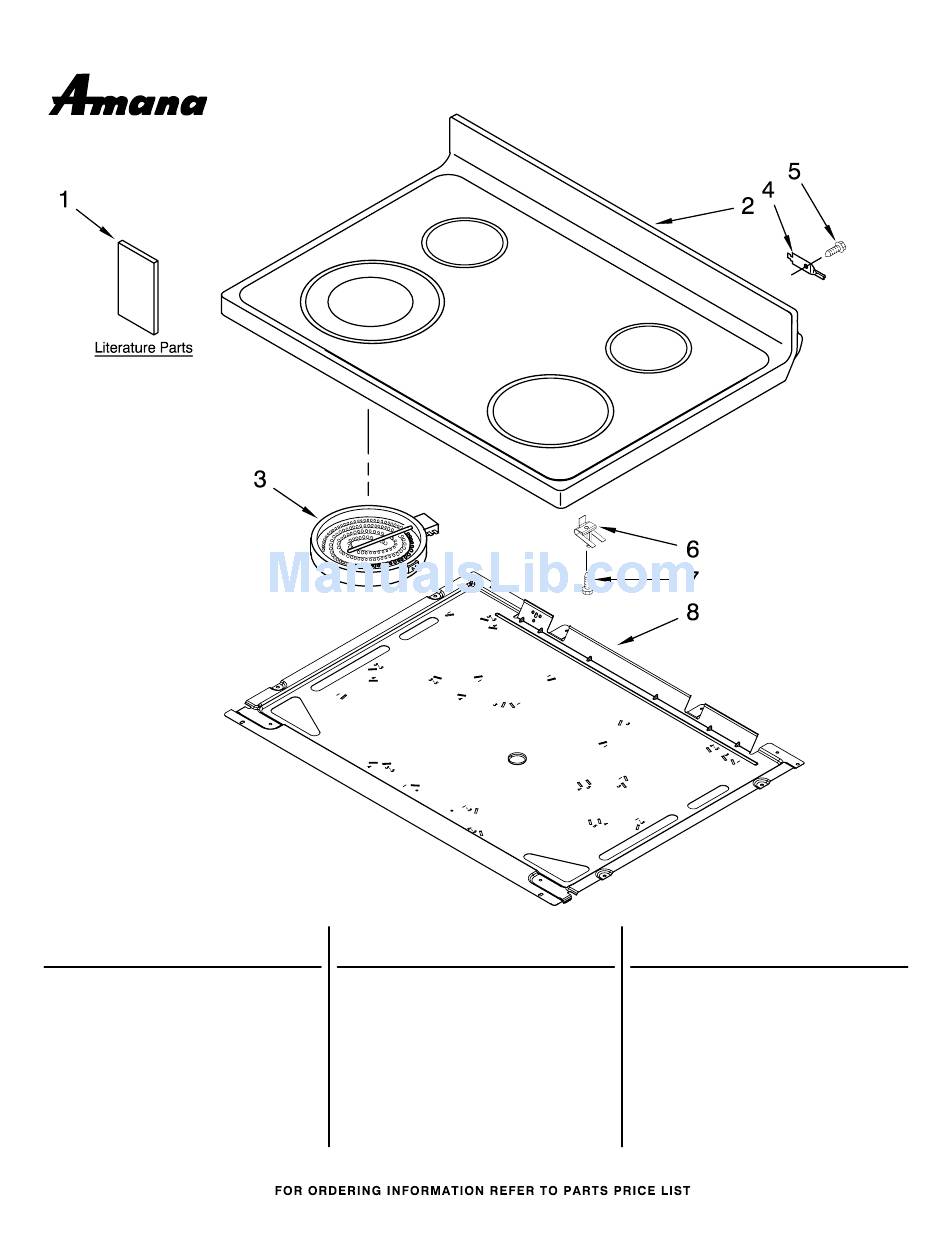

COOKTOP PARTS
(White)
(Black) (Universal Silver) (Stainless Steel)
Illus.
Part
No.
No.
DESCRIPTION
2
Cooktop
W10172293 White
W10172294 Black
3
Element, Surface
8273992 2500 W − RF & LF
8273994 1200 W − LR & RR
1
30" ELECTRIC CERAN
FREESTANDING RANGE
SELF CLEAN CONVECTION OVEN
Illus.
Part
No.
No.
DESCRIPTION
4
3195060 Hinge, Cooktop (2)
5
3196169 Screw
6 W10162042 Spring, Locator
7
3196170 Screw
8 W10170526 Pan, Radiant
Part No. W10255426 Rev. C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Amana AER5830VAW0
Summary of Contents for Amana AER5830VAW0
- Page 1 COOKTOP PARTS For Models: AER5830VAW0, AER5830VAB0, AER5830VAD0, AER5830VAS0 (White) (Black) (Universal Silver) (Stainless Steel) 30" ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN CONVECTION OVEN Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Cooktop 3195060 Hinge, Cooktop (2) W10196163 Owner’s Manual W10172293 White 3196169 Screw W10172294 Black...
-
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Models: AER5830VAW0, AER5830VAB0, AER5830VAD0, AER5830VAS0 (White) (Black) (Universal Silver) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Endcap Switch, Infinite 8272473 Cover, Rear W10184433 White Left Hand 3148951 Left Rear Control, Range W10184434 White Right Hand 3148954 Right Front W10173500 White W10184437 Black Left Hand... -
Page 3: Chassis Parts
CHASSIS PARTS For Models: AER5830VAW0, AER5830VAB0, AER5830VAD0, AER5830VAS0 (White) (Black) (Universal Silver) (Stainless Steel) W10255426... - Page 4 CHASSIS PARTS For Models: AER5830VAW0, AER5830VAB0, AER5830VAD0, AER5830VAS0 (White) (Black) (Universal Silver) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 16 W10058460 Foot, Rear (2) 3196174 Screw 1 W10134285 Vent Tube Asmbly 3195987 Guard, Wire 9758238 Retainer, Side (2) 9761512 Clip, Mounting 9757239 Rod −...
- Page 5 DRAWER & BROILER PARTS For Models: AER5830VAW0, AER5830VAB0, AER5830VAD0, AER5830VAS0 (White) (Black) (Universal Silver) (Stainless Steel) W10255426...
- Page 6 DRAWER & BROILER PARTS For Models: AER5830VAW0, AER5830VAB0, AER5830VAD0, AER5830VAS0 (White) (Black) (Universal Silver) (Stainless Steel) Illus. Part DESCRIPTION 1 W10179196 Rack, Oven (2) 9761031 Drawer, Storage 3 W10174396 Brkt−Mntg, Drawer Rivet, Push (2) 3196814 White 3196813 Black Panel, Drawer Frnt 8053339 White 8053341 Black 9761694 Universal Silver...
-
Page 7: Door Parts
DOOR PARTS For Models: AER5830VAW0, AER5830VAB0, AER5830VAD0, AER5830VAS0 (White) (Black) (Universal Silver) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Trim, Top Hinge, Door (2) 3196160 Screw W10144869 White 9761493 White, Black, Trim, Lower Universal Silver 8523175 White W10144870 Black 8523177 Black 3196164 Screw... -
Page 8: Optional Parts
OPTIONAL PARTS For Models: AER5830VAW0, AER5830VAB0, AER5830VAD0, AER5830VAS0 (White) (Black) (Universal Silver) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, TOUCH−UP (1/2oz.) ANTI−TIP KIT Following Parts Not Illustrated 72017 White W10017440 Anti−Tip Kit 72032 Black SPLICING WIRES−−25FT. 8212473 Universal Silver WIRING HARNESS PARTS 511873 White Porcelain...
