Amana AER5522VA Product Dimensions

30" (76 cm) Freestanding Electric Range
PRODUCT MODEL NUMBERS
AER5522VA AER5844VA
AER5822VA AER6011VA
Electrical: Range must be connected to the proper electrical
voltage and frequency as specified on the model/serial number
rating plate. The model/serial number rating plate is located
behind the control panel or on the oven frame behind the storage
drawer panel. Refer to the figures in the "Product Dimensions"
section.
This range is manufactured with the neutral terminal connected to
the cabinet. Use a 3-wire, UL listed, 40- or 50-amp power supply
cord (pigtail). If local codes do not permit ground through the
neutral, use a 4-wire power supply cord rated at 250 volts, 40 or
50 amps and investigated for use with ranges.
Range Rating*
120/240 Volts 120/208 Volts
8.8 - 16.5 KW 7.8 - 12.5 KW
16.6 - 22.5 KW 12.6 - 18.5 KW
* The NEC calculated load is less than the total connected load
listed on the model/serial rating plate.
** If connecting to a 50-amp circuit, use a 50-amp rated cord with
kit. For 50-amp rated cord kits, use kits that specify use with a
nominal 1-3/8" (34.9 mm) diameter connection opening.
A circuit breaker is recommended.
The range can be connected directly to the circuit breaker box (or
fused disconnect) through flexible or nonmetallic sheathed, copper
or aluminum cable.
Do not use an extension cord.
CABINET OPENING DIMENSIONS
Cabinet opening dimensions shown are for:
25" (63.5 cm) countertop depth
24" (61.0 cm) base cabinet depth
36" (91.4 cm) countertop height
Because Whirlpool Corporation policy includes a continuous commitment to improve our
products, we reserve the right to change materials and specifications without notice.
Specified Rating of
Power Supply Cord Kit
and Circuit Protection
Amps
40 or 50**
50
A
C
B
D
E
F

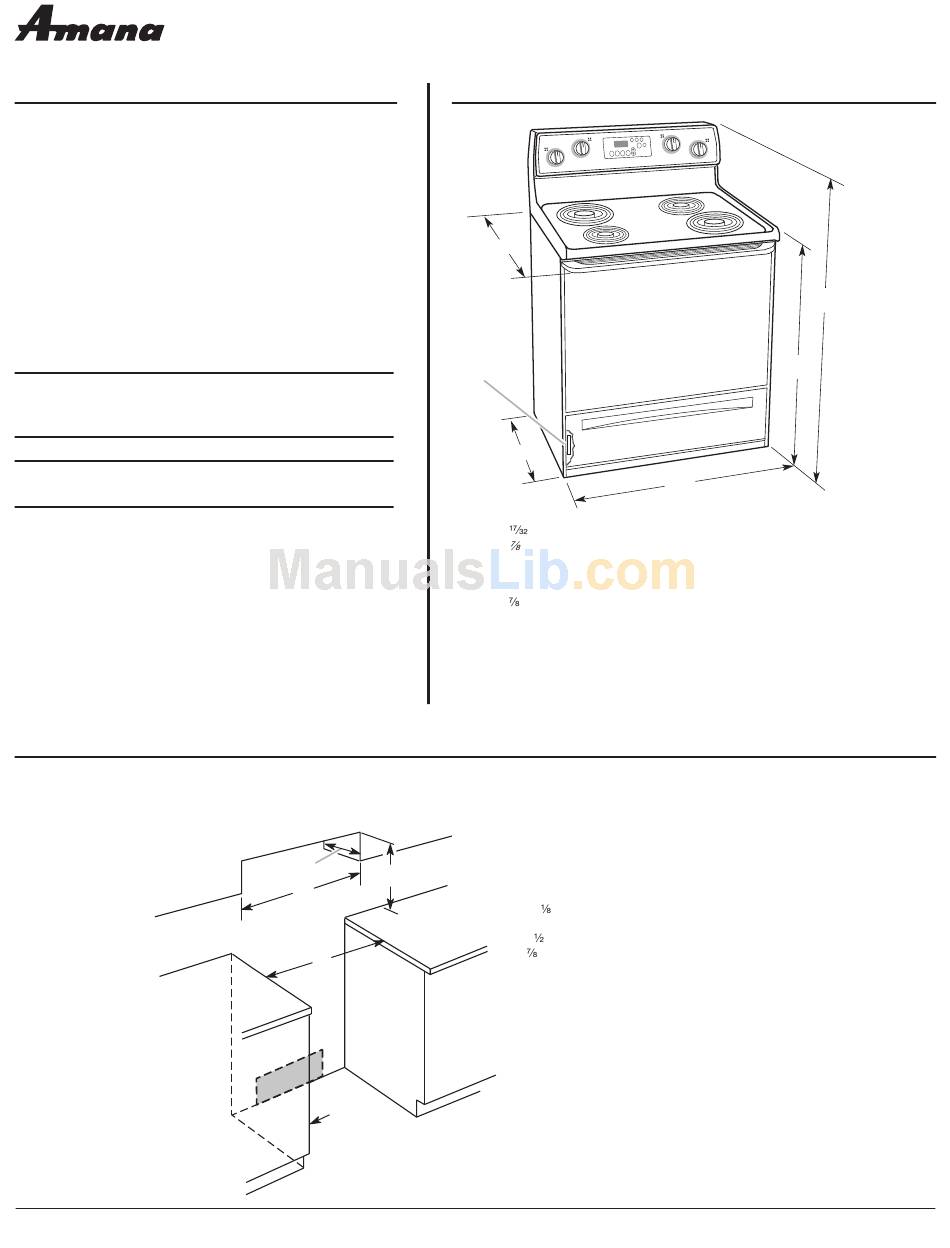

PRODUCT DIMENSIONS
A
F
E
A. 27 " (69.9 cm) max. depth with handle
B. 46 " (119.1 cm) overall height (max.) with leveling legs
screwed all the way in*
C. 36" (91.4 cm) cooktop height (max.) with leveling legs screwed
all the way in*
D. 29 " (75.9 cm) width
E. 25" (63.5 cm) depth
F. Model/serial rating plate (located on the left side frame behind
storage drawer panel)
A. 13" (33.0 cm) max. upper cabinet depth
B. 30" (76.2 cm) min. opening width
C. For minimum clearance to top of cooktop, see NOTE*.
D. 30 " (76.5 cm) min. opening width
E. Outlet - 8" (20.3 cm) to 22" (55.9 cm) from either cabinet,
5 " (14.0 cm) max. from floor
F. " (2.2 cm) min. required between cutout and cabinet door or
hinge.
*NOTE: 24" (61 cm) min. when bottom of wood
or metal cabinet is protected by not less than 1/4" (6.4 mm)
flame retardant millboard covered with not less than No. 28
MSG sheet steel, 0.015" (0.4 mm) stainless steel, 0.024" (0.6
mm) aluminum or 0.020" (0.5 mm) copper.
30" (76.2 cm) min. clearance between the top of the cooking
platform and the bottom of an unprotected wood or metal
cabinet.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
B
C
D
*Range can be raised approximately 1"
(2.5 cm) by adjusting the leveling legs.
Ref. W10196158
08-27-08
