Summary of Contents for Citronic CD-S6 Ultima
- Page 1 170.648 ™...

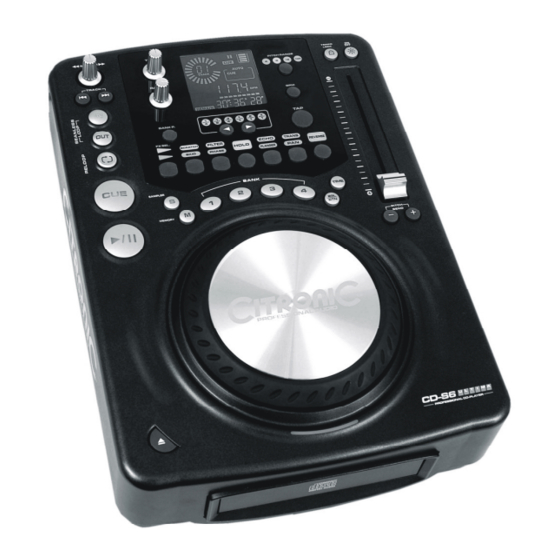

- Page 2 The CD-S6 Ultima Single CD-Player The new CD-S6 Ultima from Citronic is the latest freestanding single CD player for the creative DJ. It features digital turntable technology with the large ‘AQ Touch’ interactive jog wheel. This technology allows the DJ to use...
-
Page 3: Important Safety Information
Important Safety Information WARNING: NOTE: TO PREVENT FIRE OR SHOCK HAZARD, DO This CD player uses the semiconductor laser. To NOT EXPOSE THIS APPLIANCE TO RAIN OR allow MOISTURE. you to enjoy music at a stable operation, it is recommended to use this in a room of 5℃ 41℉ - CAUTION: 35℃... -
Page 4: Important Safety Instructions
Important Safety Instructions 1. Read Instructions – All the safety and operating 15. Servicing－The user should not attempt any service instructions should be read before this product is to the appliance beyond that described in the operating operated. instructions. All other servicing should be referred to 2. - Page 5 Setting up the CD-6 Ultima 1.Checking the Contents Check that the carton contains the following items: 1. Main unit 2. Operating instructions 3. An RCA pin cord. 4. An AC power cord. 2. Installing the Unit 1. Place your unit on a flat surface. 2.
- Page 6 Front Panel Illustration TIME S EARCH TEMP O LOCK PITCH RANGE TRACK RATIO BANK P. SCRATCH HOLD SKID PHASE BANK TIME PROFESSIONAL AUDIO Features & Functions Top Panel 1. Search Control This knob is used to skip through the track selected; it has a 4-speed search in forward or reverse allowing the user to quickly find a desired point in the track.
- Page 7 5. Reloop Button Once a seamless loop has been created and the play is back in normal play mode pressing the RELOOP button at any point during the same CD will send the player back in to LOOP mode. Pressing this button repeatedly will create a stutter effect from the beginning of the loop.
- Page 8 TIME PITCH RANGE RATIO BANK P. SCRATCH HOLD SKID PHASE 24 25 26 27 28 29 30 25. Scratch/Skid Effect Select This button will select the Scratch effect when (23) is green and the Skid effect when (23) is blue. Scratch Effect: When this effect is selected the ‘Jog Wheel’...
- Page 9 34. Pitch Range Select Button Pressing this button selects the pitch range for the pitch slider (16) the selection flashes briefly in the LCD display when selected. They pitch range selection is also indicated on the button as follows: • ±4% - The button glows red •...
- Page 10 50. Single This indicator will glow when the player is in ‘single’ play mode. The track will play once then return to its Cue point. If the ‘Single’ indicator is not glowing the player is in ‘Continuous’ mode each track will play in turn until the end of the last track when the player will return to its original Cue point.
- Page 11 How to use advanced features? 1) Setting a CUE Point There are a few different ways to set a Cue point, a Cue point can be made anywhere on the disc. Once set, pressing the Cue button (6) will return the CD to this point. A Cue point can also be assigned to each of the four memory bank buttons (15) allowing for three independent accessible Cue points set from anywhere on the disc.
- Page 12 6) Editing a Seamless Loop Once a Seamless loop has been created you can edit the ‘OUT’ point to make the loop longer or shorter. To edit the loops length, follow these instructions: Shortening the Loop – To shorten a loop you will need to exit loop mode first by pressing the ‘OUT’ button near the beginning of the loop (watching the time display on the LCD will give an indication of the start of the loop) you will then need to press the ‘OUT’...
- Page 13 9) Activating the ‘AQ-Touch’ Scratch/Stutter functions The CD-S6 Ultima uses a revolutionary development with the ‘AQ-Touch’ jog wheel (11). When activated the jog wheel (11) reacts like a turntable platter, touching the wheel will stop the CD playing and moving the wheel will scratch the music in real-time.
-
Page 14: Technical Specification
Technical Specification Performance Characteristics (test disc: TCD-782, Load=47Kohm) Quantization : 16 bit linear per channel Sampling Rate : 44.1 KHz at normal pitch Over Sampling Rate : 8 x Output level : 1Vrms ±0.5dB Load Impedance: : >47K ohm Channel Balance : 0.5dB Frequency Response : ±0.5dB (20Hz-20KHz, 0dB) - Page 15 SM-FX500 Ultima DJ Mixer The SM-FX500 Ultima mixer, a high quality DJ Mixer with 8 built in Digital effects. It also has 3 digital effects assignable to the crossfade, this opens up a whole new world of creative mixing capabilities. On top of the Digital Effect Processor this high quality unit has a host of great features like the user replacable high quality channel faders and crossfader, digital output, and Master and Cue selectable LED Monitor.
- Page 16 To see more products in the range visit…. www.citronic.com ™...
