I-Fly Wireless Access Point

Quick Start Guide

A02-WAP-54G/G2 (February 2004)V1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I-Fly A02-WAP-54G/G2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atlantis Land I-Fly A02-WAP-54G/G2

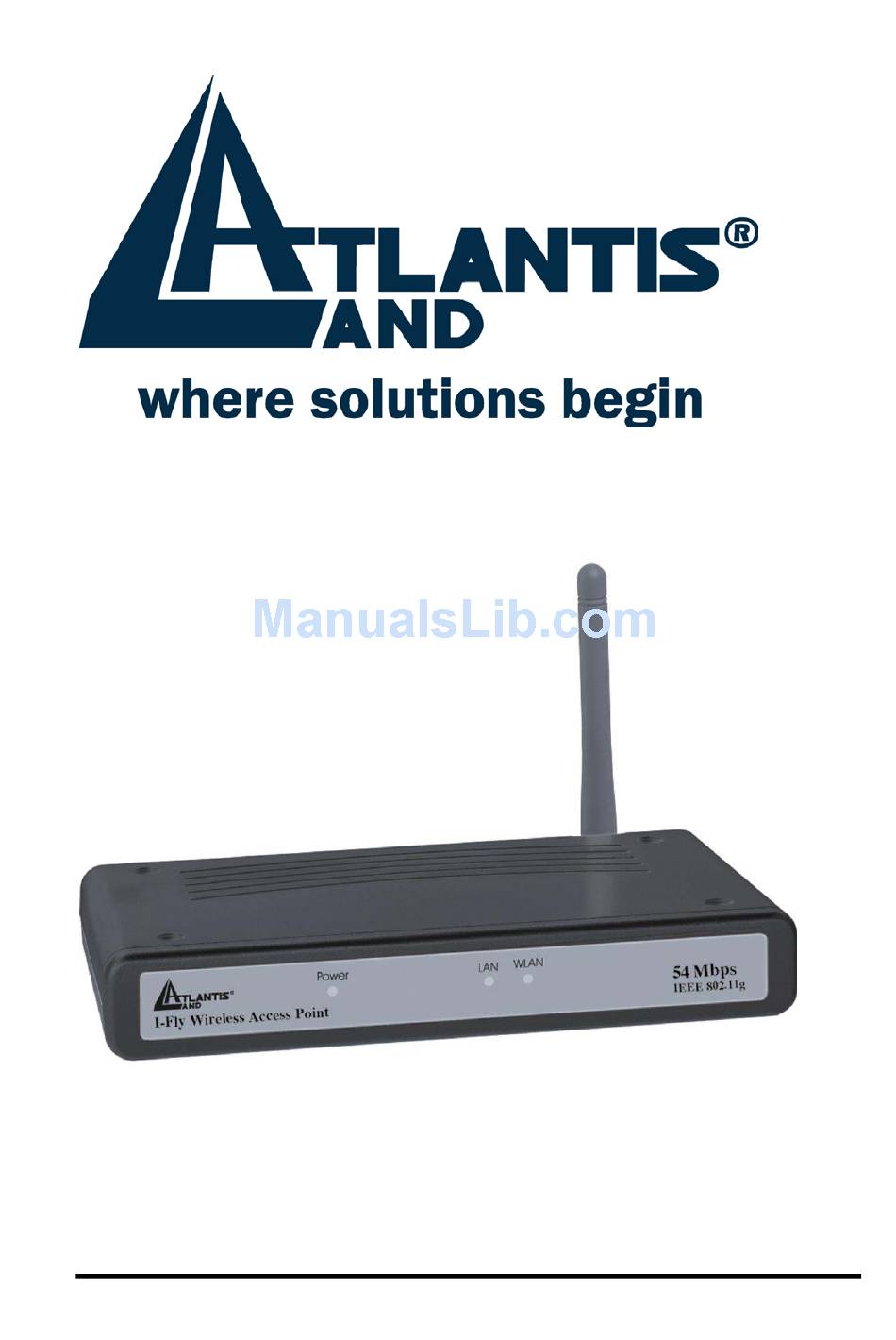

  • Page 1: Quick Start Guide

    I-Fly Wireless Access Point Quick Start Guide A02-WAP-54G/G2 (February 2004)V1.00...
  • Page 2: Package Contents

    I-Fly Wireless Access Point For more detailed instructions on configuring and using the I- Storm Lan Router ADSL, please refer to the online manual. 1.1 Package contents Make sure that you have the following items: • I-Fly Wireless Access Point •...
  • Page 3: The Front Panel Leds

    I-Fly Wireless Access Point 1.3 The Front Panel LEDs MEANING ON=Indicates proper connection to power supply. OFF= The unit is not receiving power POWER ON= Indicates connection is established. BLINKING= Data transmissions OFF= No LAN connections ON= Link is established BLINKING= Packet transmit or receive activity WLAN OFF= No Link activity...
  • Page 4: Default Settings

    I-Fly Wireless Access Point 1.4 The Rear Ports PORT MEANING Receptor for the Power Adapter POWER (Jack) Auto MDI/MDIX LAN ports automatically sense the cable type when connecting to Ethernet-enabled computers. After the device has turned on, press it (10s) to reset the RESET device or restore to factory default settings.
  • Page 5: Browser Configuration

    I-Fly Wireless Access Point • Never use remote connection • Use remote connection if another network connection isn’t available 1.7 Browser configuration Open the web browser, enter the local port IP address of this I- Fly Router, which default at 192.168.1.1, and click “Go” to get the login page.
  • Page 6: Quick Setup With Wizard

    I-Fly Wireless Access Point 1.8 Quick Setup with Wizard Setup wizard is provided as the part of the web configuration utility. You can simply follow the step-by-step process to get your wireless router configuration ready to run in 4 easy steps by clicking on the “Wizard”...
  • Page 7 I-Fly Wireless Access Point Step 2: Set SSID and channel Type the SSID in the text box and select a communications channel. The SSID and channel must be the same as wireless devices attempting communication to the router. You can select the channel range of 1 to 13 for European (ETSI) domain.
  • Page 8 I-Fly Wireless Access Point Step 4: Restart The Setup wizard is now completed. The new settings will be effective after the Wireless AP restarted. Please click “Restart” to reboot the router. If you do not want to make any changes, please click “exit” to quit without any changes.
  • Page 9 I-Fly Wireless Access Point Click “Close” to finish the AP Wizard.

This manual is also suitable for:

I-fly a02-wap-54gI-fly a02-wap-54g2
