DASHBOARD

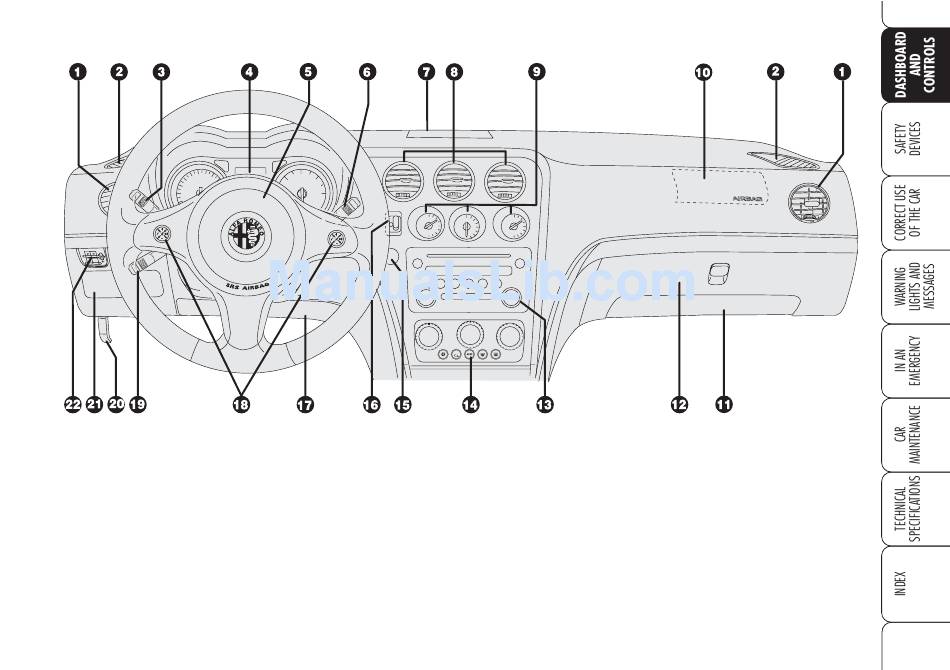

fig. 1
A0F0056m
1. Adjustable and swivel side air vents - 2. Front side window demisting/defrosting vents - 3. External lights control lever
- 4. Instrument panel - 5. Driver's air bag and horn - 6. Windscreen wiper control lever - 7. Upper central vent - 8. Ad-
justable and swivel central air vents - 9. Fuel level gauge/engine coolant temperature gauge/engine oil temperature gauge
(petrol versions) or turbocharger pressure gauge (diesel versions) - 10. Passenger's air bag - 11. Passenger's knees air
bag (for versions/markets, where provided) - 12. Glove box - 13. Sound system - 14. Heating/ventilation/climate con-
trols - 15. Engine START/STOP button - 16. Ignition device - 17. Driver's knees air bag - 18. Sound system controls
on the steering wheel
- 19. Cruise Control lever
-
(for versions/markets, where provided)
(for versions/markets, where provided)
20. Bonnet opening lever - 21. Dashboard fusebox lid - 22. Switches for external lights, trip meter reset and headlamp aim-
ing device.
7
