Checking Engine Oil - Alfa Romeo Brera Owner's Manual

fig. 5
fig. 5
ENGINE OIL

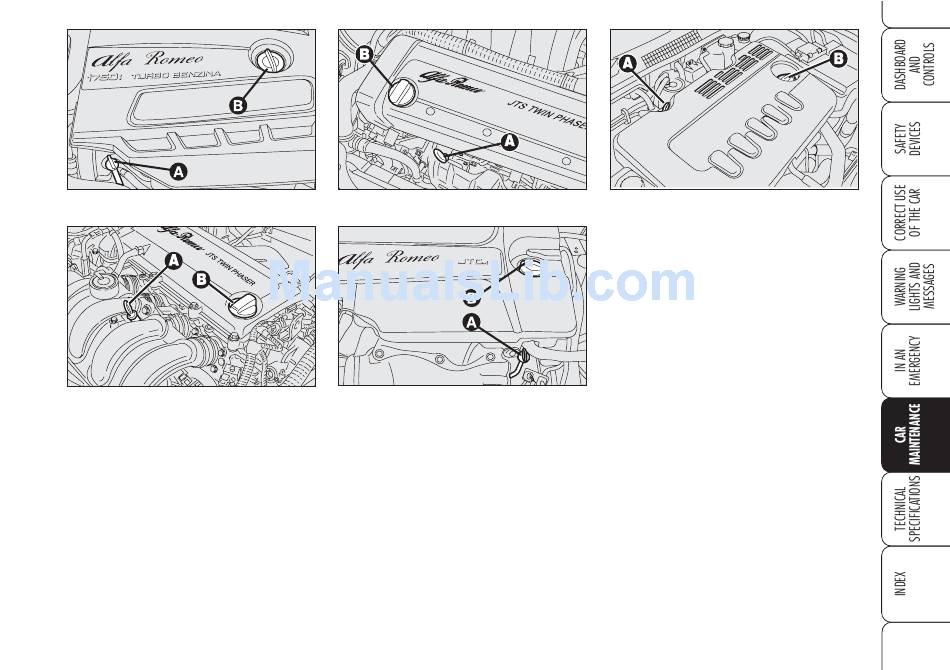

Fig. 5: 1750 TURBO BENZINA versions
Fig. 5/a: 2.2 JTS Selespeed versions
Fig. 6: 3.2 JTS versions
Fig. 7: 2.0 JTD versions
M
Fig. 8: 2.4 JTD versions
M
A0F0277m
fig. 6
A0F0018m
fig. 7

Checking engine oil

Check the oil level a few minutes (about
5) after the engine has stopped, with
the car parked on level ground.
A0F0069m
fig. 8
Remove the dipstick A and clean it, put
it back in completely, remove it and
check that the level is within the MIN
and MAX marks on the dipstick. The
gap between the MIN and MAX
marks corresponds to about one litre of
oil.
A0F0276m
A0F0202m
217
