Summary of Contents for Akura ADLTDVD3233

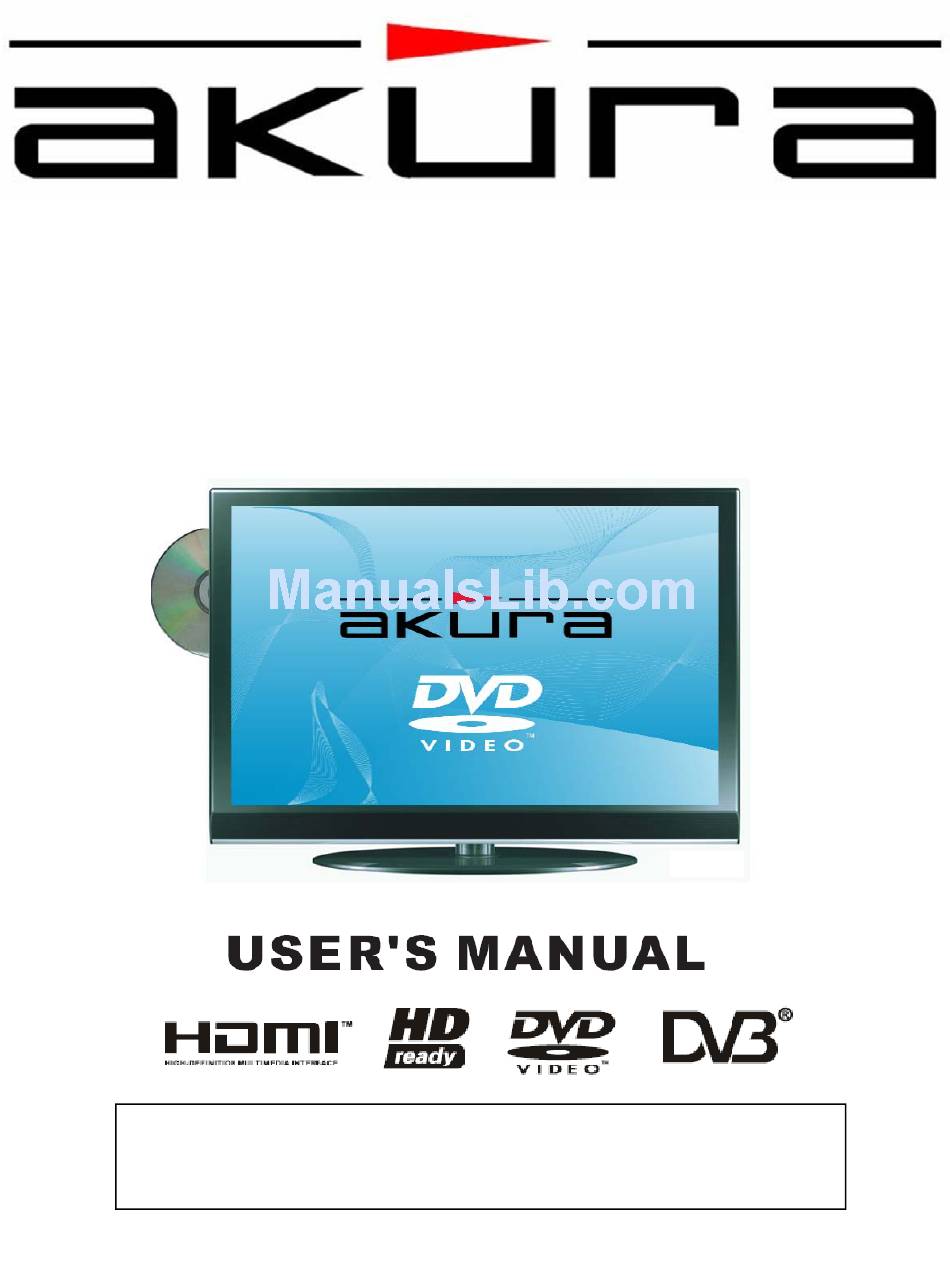

- Page 1 ADLTDVD3233 Digital LCD TV with DVD DVBt “Freeview” HDMI Customer Help Line : 0845 293 7698 Website : www.ekey.co.uk...
-
Page 2: Table Of Contents
Contents Safety Information Safety Instructions Accessories User Controls Remote Control Connections Menu Operation Teletext EPG (Electronic Programme Guide DVD Operation DVD Setup menu’s Trouble Shooting Guide Disc Care Wall mounting Specifications Mains Plug Wiring... -
Page 3: Safety Information
1. Safety Information The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Safety Instructions
2. Safety Instructions CAUTION. PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS USER MANUAL AND MARKED ON THE APPLIANCE. RETAIN THIS BOOKLET FOR FUTURE USE. This set has been designed and manufactured to assure your personal safety. Improper use can result in Electric shock or Fire hazard. -
Page 5: Accessories
3. Accessories Please check the contents of the TV before you continue. If any item is missing please Remote Control contact your point of purchase. User Manual Mains lead... -
Page 6: User Controls
4. User Controls. Front view Right side view Reduces channel selection by 1 with each press. In menu mode will shift the selection 1. CH - downwards 2. CH + Increases channel selection by 1 with each press. In menu mode will shift the selection upwards. -
Page 7: Remote Control
5. Remote Control. 1. STANDBY. Switches TV to Standby 2. MUTE. Press to mute sound, press and Operation. again to restore sound. 3. 0-9. Numeric buttons for direct 4. EJECT. Ejects DVD disc. channel selection or track/chapter 6. RECALL. Recalls previous channel numbers. -
Page 8: Connections
5. Remote Control. Battery Fitting and Disposal Open the battery cover Fit two “AAA” batteries. Ensure the battery polarities are correct i.e + to + and – to -. Replace the battery cover To prevent injury, do NOT break open or throw exhausted batteries in a fire. Do not mix batteries, old and new, Carbon or Alkaline. - Page 9 6. Connections. Typical connections Place Mains plug into Socket as shown HDMI Input Antenna or cable CVBS Input Disconnect TV from mains supply. Connect HDMI input. Re connect mains supply to both TV and source. Disconnect TV from mains supply. Use SOURCE button to select HDMI.
- Page 10 6. Connections. PC connections. Disconnect TV from mains supply. Connect VGA (15 pin) plug to TV and PC. Connect stereo audio lead. Re connect mains supply to TV and PC. Use SOURCE button to Headphones. select VGA. Disconnect TV from mains adaptor. Plug in headphones.
-
Page 11: Menu Operation
7. Menu Operation. Connect the TV/DVD to the Mains supply and suitable aerial. It is advisable not to connect other apparatus until you have established that the TV is working correctly. If using the TV for DVBt (Freeview) viewing, the existing aerial may not be suitable. - Page 12 7. Menu Operation. TV Menu. Press the TV MENU button to display the first menu, Fig 5 will be displayed. Fig 5 To select the other menu’s press the ► button and the menu’s will be displayed in the sequence :- Picture, Sound, Setup, Timer, Function. To enter each menu press the ▼...
- Page 13 7. Menu Operation. Setup Menu. (Fig 8). Fig 8 Country. Use the ▲/▼ to select Country and then use the ►/◄ buttons to select the correct country. “Default is UK”. Auto Tuning. Use the ▲/▼ to select Auto Tuning and then use the ► button to start Auto Tune.
- Page 14 7. Menu Operation. DIGITAL Manual Tuning. (Fig 12). Fig 12 It may be necessary to add more digital channels as they are provided by the programme providers or manually tune stations for reasons (above). Select Manual Tuning in DTV mode and press ENTER or ► . Use the ▲/▼...
- Page 15 7. Menu Operation. Fig 14 Programme Edit. (Digital) (Fig 14). Favourite “Green”. To add channels to your Favourite library, use the cursor buttons to select the channel you wish to add. Press the GREEN button. A Yellow Star will be displayed in the Flags Column adjacent to the station name.
- Page 16 7. Menu Operation. Key Lock. (Fig 17). Key Lock prevents un authorised use of the Manual TV buttons. When set to ON, if the TV is turned Off, then manual use of the buttons is locked. Only remote control can then be used. Select Key lock using the ▲/▼...
- Page 17 7. Menu Operation. Fig 22 Using a CAM (Conditional Access Module) (CI Slot). This feature allows the user to access digital terrestrial “pay per view” channels. To use this facility a conditional access module (CAM) and viewing card need to be obtained by subscribing to a pay channel company. To insert the module.
-
Page 18: Teletext
8. Teletext. (Analog) TV Teletext is an information system broadcast by certain programme providers. It can provide Subtitles for viewers hard of hearing. Weather, Travel information, games and many other services. Below is a description of the buttons associated with Teletext. TEXT. -
Page 19: Epg
9. EPG (Electronic Programme Guide) (DVBt only). Fig 27 An “Electronic Programme Guide” EPG is provided by the programme providers. To access this press the EPG button on the remote control. The EPG provides programme information for the next 7 days. (Fig 27) Press▲/▼to move up and down the list and ►/◄... -
Page 20: Dvd Setup Menu's
Fig 29 11. DVD Setup Menu’s To set the DVD section to your requirements a series of menu’s are provided. With no disc in the player, press the DVD SETUP button on the remote control, you will now see menu (Fig 29). The first item is System Setup Page. -
Page 21: Trouble Shooting Guide
12. Trouble shooting guide. Should you experience difficulties operating this product please consult the guide below before calling the Customer Help Line. SYMPTOM POSSIBLE CAUSE REMEDY Dead No led lit Power not connected to TV Check power lead connections and mains switch is turned on No Picture. -
Page 22: Disc Care
Mount the TV to the wall bracket using 4 x 5 mm x 10 mm set screws. (Do NOT use longer screws as the internal parts of the TV may be damaged). Akura Ltd accepts no responsibility for any damage, caused to or by, incorrect mounting of the wall bracket. -
Page 23: Specifications
15. Specifications. ITEM DESCRIPTION Power Requirements TV 100-240V AC 50/60 Hz (160W) Standby Power <2W Screen Size 31.5" (80cm) diagonal Case dimensions 800mm x 610mm x 220mm inc base Weight 26.34 Kg’s Screen resolution 1366 x 768 pixels Viewing angle V 178º... -
Page 24: Mains Plug Wiring
16. Mains Plug Wiring Diagram Fig 33 If it becomes necessary to replace the Mains Plug, it should be wired in accordance with the diagram as in Fig 33. The Brown wire (Live) should be connected to the terminal (L) The Blue wire (Neutral) should be connected to the terminal (N) The Green/Yellow wire (Earth) should be connected to the terminal (E).
