Summary of Contents for Akura ATLDVD3230W-HDID

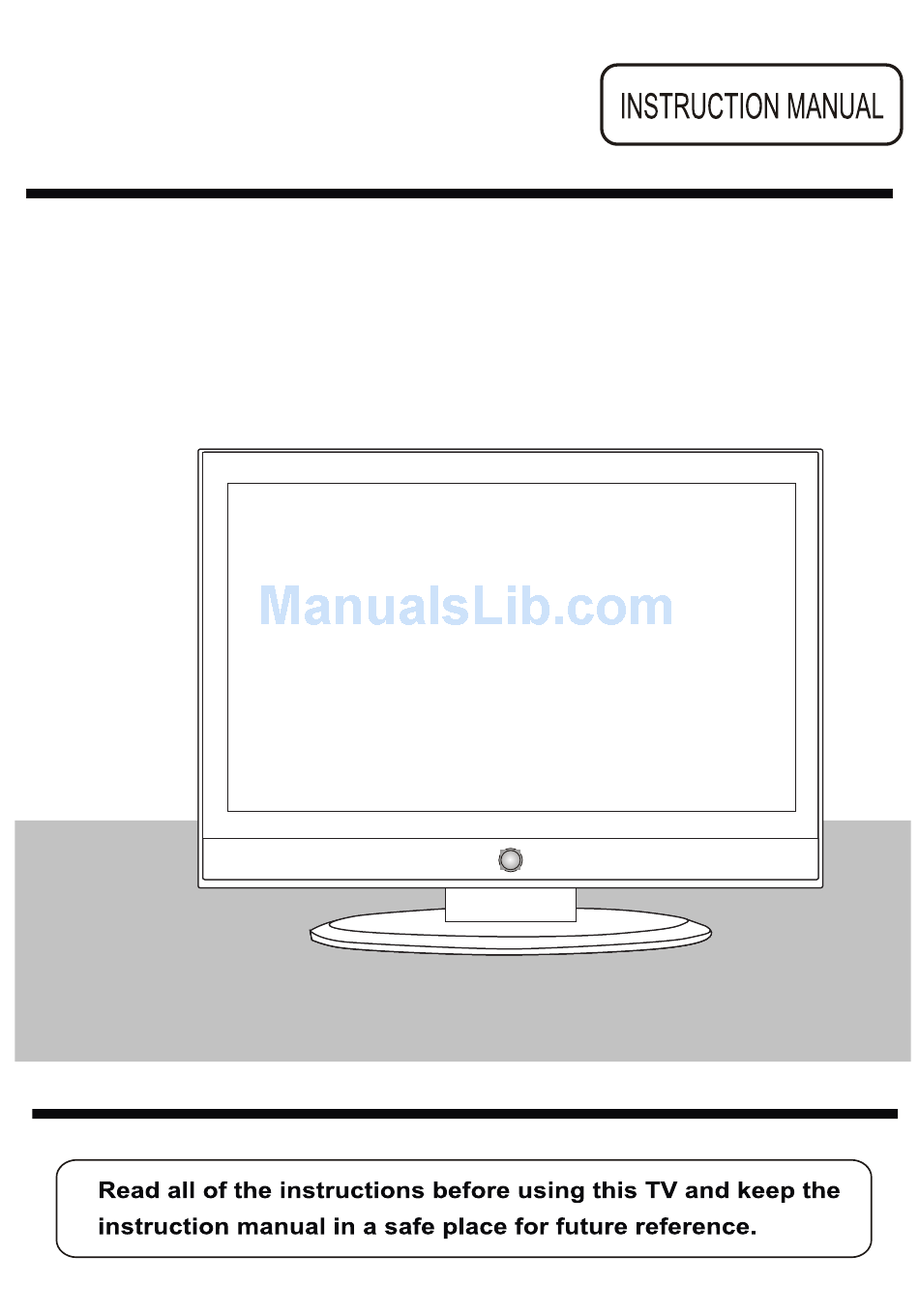

- Page 1 32”LCD TV COMBI WITH DVD & DVB FREEVIEW Model No.: ATLDVD3230W-HDID...
- Page 3 Environmental issues. When leaving the Tv for long periods or overnight, turn off the supply with the Mains switch, do not leave in standby. Do not leave in standby when leaving the house or the set un attended.
- Page 4 Do not place the TV on an unstable surface, it may tip over and cause injury or damage to the LCD screen. Do not place the TV in a cabinet where airflow is restricted, ensure the ventilation holes are not covered to prevent overheating. Do NOT cover the DC mains adap- tor, this will feel warm to the touch and must be allowed to radiate the heat.
- Page 5 DVD operation------------------------------------ System operation-------------------------------18 DVB operation------------------------------------...
- Page 6 TV-EXIT TV-AV 100-240V 50/60Hz...
- Page 7 Insert the disc with the mirror side facing towards you Power 1. (IR) Infrared Receiver, receives IR signals from the remote control. (Power on/standby) LED Indicator: press POWER to turn on and off. Blue The effective range of the Remote control is more than 4 metres, and 30º to the left or right and 20º...
- Page 8 1. AC POWER INPUT: 100-240V AC 50/60Hz. (Warning: This appliance must be earthed). 2. SWITCH: Turns on and off the AC supply. 3. HDMI 1 / 2: Connect to the HDMI sockets of DVD player or other equipment. 4. VGA: PC Display. Connect to the D-Sub 15 pin connector of PC. 5.
- Page 9 1. POWER: Turn the TV on or turn it standby 3. TV-MENU: TV system menu 4. CH+/-: Channel up/down 5. VOL+/-: Volume up/down 6. TV-EXIT: Exit from the OSD menu 7. TV/AV: Source select 8. DISPLAY: Display the current mode of DVD information. : Cursor buttons for OSD operation OK: Confirmation 10.
- Page 10 TV/AV TV-EXIT MENU TV/AV MP Input YPbPr (P+/-) button (V+/-) (you can also use “P+/- V+/-” buttons on the TV set to operation the OSD MENU)
- Page 11 Press TV-MENU AutoTuning, Search, Program Edit. Press TV-MENU sub menu’s. Auto Tuning button to enter. SYSTEM: United_Kingdom Country: Press OK to confirm and exit the menu. When the Tv is Auto searching, you can press the TV-MENU button to stop and return to the previous menu.
- Page 12 Press button to select “Program Edit”, press button, the screen will display the Programme edit menu.
- Page 13 Press button to select the menu press button to enter it. previous Press button to select the menu previous Press button to select the menu press button to enter it. previous sound Press button to select the menu previous...
- Page 14 current time Press button to select the “Clock”, Press button to select the “Off timer”, press button to enter it, Press button to select the “On timer”, press button to enter it, Language: Press button to select the “Language”, press button to select OSD language you like.
- Page 15 S-VIDEO sync mode Auto sync: Press button to select “Auto sync” sync press button to auto config.(in VGA source) Manual config.: Press button to select “Manual config.”, press button to enter, and press button to select Phase, Clock, H.Position, press Auto button to adjust.(in VGA source) VGA/XGA mode: Press...
-
Page 16: Dvd Operation
DVD Operation Press the Power button on the TV or the remote control, then press the TV/AV/DVD button to select DVD mode. If there is no disc in the DVD player the screen will show "NO DISC". Place a disc Insert a disc with the mirror side facing towards you. -
Page 17: Additional Operation
DVD Operation Additional operation Selecting Tracks 1. Compatible with DVD, SVCD, VCD, CD, HD-CD, WMA, Digital Audio disc /JPEG discs. 2. When playing a DVD disc, press Numeric buttons on the menu or title page to select tracks; During DVD playback, you can input desired title numbers directly. - Page 18 DVD Operation 3. Loading and playing SVCD discs (two pages) - Press Display button once to show the first page: - "Disc Type, Track * / * (the playing track / total tracks), Mute, PBC, Repeat Mode, Elapsed Time of the Playing Track".
-
Page 19: Disc Care
DVD Operation Zoom In the Video Image 1. Compatible with DVD, SVCD, VCD, JPEG discs. 2. The Zoom Function allows you to enlarge the video image. 3. Press Zoom repeatedly to activate the function and choose the required zoom factor: Zoom 1, Zoom 2, Zoom 3, Zoom 4, Zoom 1 /2, Zoom 1 /3, Zoom 1/4, Zoom Off. -
Page 20: System Operation
DVD Operation System operation System operation will define the setting of the set; these definitions will be stored until you change them again. General Steps of Setup Menu 1. Pause or Stop the player. Press DVD-SETUP on the remote control. The main menu will be shown, as below. 2. - Page 21 DVD Operation 2. LANGUAGE SETUP The language setup options are illustrated below: - OSD LANGUAGE: The OSD will display in the language you choose. - AUDIO LANG: If the disc you are playing has the language you choose, it will output audio in that language. - SUBTITLE LANG: If the disc you are playing has the language you require you may select this either in the Menu or using the "SUBTITLE"...
-
Page 22: Display The Dvb Menu
DVB operation Display the DVB menu Press DVB-MENU to display the main menu in DVB mode as below: Press button to select the option that you want to adjust and then use the OK button to confirm it. Press DVB-MENU again to exit the main menu. Channel List option DVB-MENU EXIT... -
Page 23: Channel Search Options
Favourite List options DVB-MENU EXIT In this menu, you can remove or add the channel you require to the favourite list Press button to select the one on the list. Press the red button to switch to the favourite list. Press the OK button to remove or add the channel and press DVB-MENU to exit. -
Page 24: System Setting Options
System setting options Press button to select the option that you want to adjust and then use the OK button to confirm it. First Time Installation System Information Change Pin Code DVB-MENU EXIT Use numeric buttons on the remote control to enter the pin code. Enter the new code, then enter again (twice). - Page 25 Software Upgrade There are two upgrade modes, Auto and Manual. Use CH+ to select one. “NOT Recommended unless directed by the supplier” Auto Mode. are posted on the website www.dtg.org.uk. Always keep the TV in standby when you think an upgrade is due, the upgrade will automatically take place.
- Page 26 t i l and the Mains adaptor is connected Dead. Led lit Red TV stuck in standby Press power button on TV or remote control g i l No picture. Led Green DVB or DVD Aerial not connected Connect a suitable aerial No picture.
- Page 27 1366(RGB)x768 1200:1 Support to 1024x768 60Hz Support to 720p, 1080i 100-240V 50/60Hz...
- Page 28 The TV is provided with mounting holes for a VESA approved wall mounting bracket (NOT SUP- PLIED). Remove the screws securing the base stand to the TV and slide the base stand out carefully. Using the removed screws mount the VESA bracket and tighten the screws securely. Fit the wall bracket securely following the manufacturers instruction..
