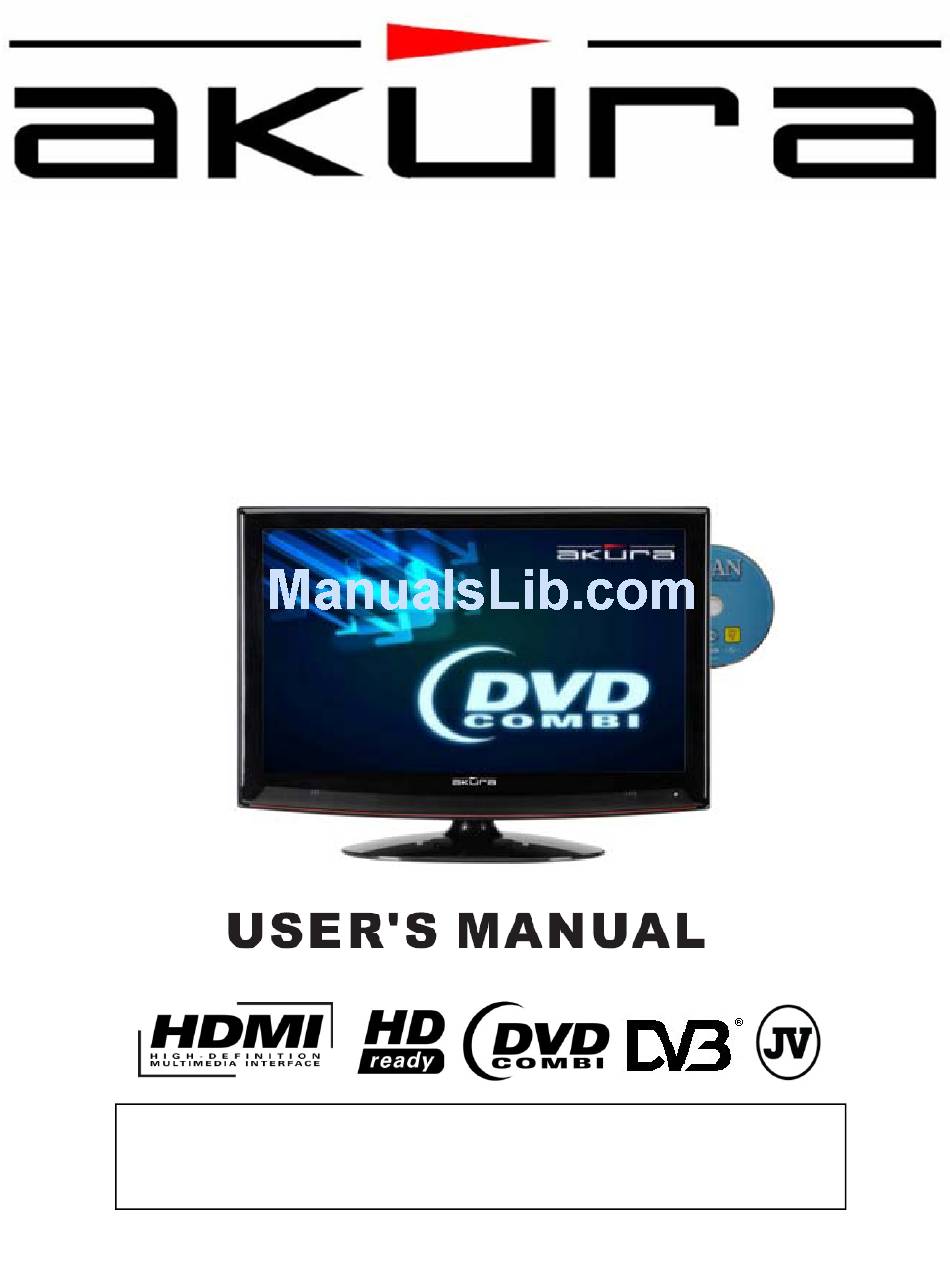

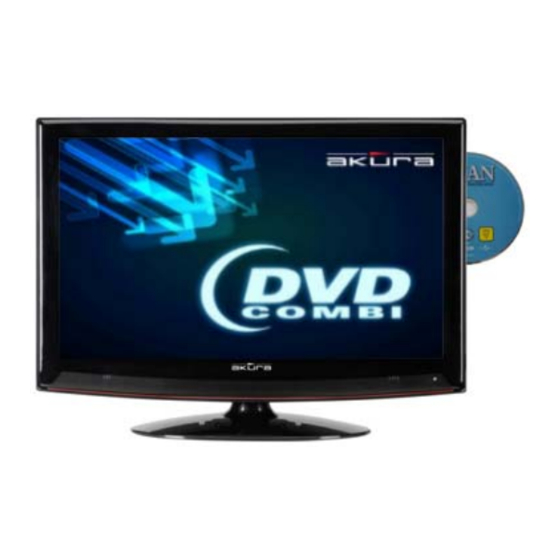

- Page 1 APLDVD2YR2268VH MSD306 Digital LCD TV With DVD,DVBt “Freeview”, HDMI & PVR Including Hotel Mode Record via USB Memory stick or Hard drive (not supplied). Customer Help Line : 0845 293 7698 Website : www.ekey.co.uk...
-
Page 2: Table Of Contents
Contents Safety Information Safety Instructions Digital Switch over Accessories User Controls Remote Control Connections Menu Operation First Time Installation Tuning Firmware upgrade. Cam Module Recording Picture menu Sound Menu Time Menu Option Menu Lock Menu EPG (Electronic Programme Guide ). Digital Radio Teletext (Analog) Teletext (Digital) -
Page 3: Safety Information
1. Safety Information The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Digital Switchover
2. Safety Instructions Unpacking and Handling. Open the carton carefully and remove the polyfoam packing. Carefully lift the TV and place onto a firm stable surface. Lift off the Poly bag and retain all packaging for future use. Keep all packaging away from small children and animals. Placing TV. -
Page 5: Accessories
4. Accessories Please check the contents of the box before you continue. If any item is missing please contact your point of purchase. Remote Control User Manual Mains lead 4 x M4 x15mm wall mounting spacers Base stand and 4 x M4 x10mm mounting screws... -
Page 6: User Controls
5. User Controls. Top view POWER INPUT : Turns TV On from standby. Also returns TV to standby. 1. Power. : Reduces Volume level. 2. Vol – : Increases Volume level. 3. Vol + : Reduces channel selection by “1” with each press. 4. -
Page 7: Remote Control
6. Remote Control. 1. POWER. Switches TV to Standby 2. INFO. Displays TV settings and and Operation. channel being viewed. 3. P MODE. Selects picture modes. 4. MUTE. Press to mute sound, press again to restore sound. 5. S MODE. Selects sound modes. 6. - Page 8 6. Remote Control. Battery Fitting and Disposal Open the battery cover Fit two “AAA” batteries “not supplied”. Ensure the battery polarities are correct i.e + to + and – to -. Replace the battery cover To prevent injury, do NOT break open or throw exhausted batteries in a fire. Do not mix batteries, old and new, Carbon or Alkaline.
-
Page 9: Connections
7. Connections. IMPORTANT. When making connections ensure the TV is disconnected from the MAINS supply input, and that the appliance being connected is also disconnected from the mains supply. HEAD PHONES : Stereo output to headphones only. : RF input from TV aerial or cable source.( 1 m/V @ 75 Ω) typical. TUNER. - Page 10 7. Connections. PC connections. Connect VGA (15 pin) plug to TV and PC. Connect stereo audio lead. Antenna Use SOURCE button to or cable select VGA. SCART 1 or 2. Connect scart lead to TV and appliance. Use SOURCE/INPUT button to select SCART1 or 2.
-
Page 11: Menu Operation
7. Connections. Source/ Input Menu. To access the Source menu, press the SOURCE button on the Remote Control or the INPUT button on the TV. Using the ▲/▼ buttons select the Source / Input required and press OK to select. 8. -
Page 12: First Time Installation
8. Menu Operation. First Time Installation The first time the TV is connected and turned on you will see Fig 1. Fig 1 Using the ▲/▼ buttons select OSD Language, this is defaulted to English. If you require a different language, use the ►/◄ buttons to select a language of your choice. -
Page 13: Tuning
8. Menu Operation. Menu. To enter the Menu functions press the “MENU” button on either Fig 4 the TV or the R/C. Fig 4 will be the first menu to be displayed. At the top of the Menu are a number of symbols, these symbols display the type of menu function, these are “in order”... -
Page 14: Firmware Upgrade
8. Menu Operation. Program Edit. DTV. Fig 8 Fig 8 In this menu you may perform four functions. Skip, Lock, Favourite and Delete. Skip. Use the ▲/▼ buttons to select which stations you wish to skip. Press the “Blue” button. An indicator will be placed in the Skip column. To remove, select again and press the Blue button. -
Page 15: Cam Module
8. Menu Operation. CI Information (DTV). Fig 11 Using a CAM (Conditional Access Module) (CI Slot). This feature allows the user to access digital terrestrial “pay per view” channels. To use this facility a conditional access module (CAM) and viewing card need to be obtained by subscribing to a pay channel company. -
Page 16: Recording
8. Menu Operation. Record Start (DTV). Fig 15. PVR recording may be started from this menu. Select using the ▲/▼ Fig 15 buttons and press “OK”. Recorded List (DTV). Select this to see the list of programmes already stored on your memory system. Recorder Mode (DTV). -
Page 17: Picture Menu
8. Menu Operation. Fig 18 Picture Menu . (Fig 18). Picture Mode. There are four settings. Standard, Mild, User and Dynamic. “Standard is set as default” Standard. Select for viewing in normal room lighting. Mild. Select when viewing in subdued room lighting, this will help prevent eye strain. -
Page 18: Sound Menu
8. Menu Operation. Fig 20 Sound Menu. (Fig 20). Sound Mode. Select from :- Standard, Music, Movie, Sports and User. Standard. Used for general viewing. Music. Selected for enhanced music appreciation. Movie. Selected for Action movies and large productions. Sports. Suitable for sport programmes. User. -
Page 19: Option Menu
8. Menu Operation. Option Menu Fig 24 (Fig 24). OSD Language. Default is set to English. To change the language use the ►/◄ buttons. Audio Language 1. If the programme providers transmit another language this may be selected. The default is set to English. Audio Language 2. -
Page 20: Epg (Electronic Programme Guide)
9. EPG (Electronic Programme Guide) (DVBt only). An “Electronic Programme Guide” EPG is provided by Fig 28 the programme providers. To access this press the EPG button on the remote control. Fig 28 will be shown. This displays all the channels in “numerical” order. -
Page 21: Teletext (Analog)
11. Teletext. (Analog) TV Teletext is an information system broadcast by certain programme providers. It can provide Subtitles for viewers hard of hearing (888). Weather, Travel information, games and many other services. Below is a description of the buttons associated with Teletext. : Press to select Teletext, press again to exit. -
Page 22: Hotel Mode
13. Hotel Mode Hotel Mode is for users that require limited access to services and levels, such as “Volume” where the full volume level can cause a problem. Fig 33 The “default “setting is “Off”. To activate Hotel mode, press the Main Menu button and select “Lock”... -
Page 23: Media
ALL previous data on the device will be LOST. Do NOT use a HDD or Memory stick with valuable data stored. Akura accepts NO responsiblity for any data lost from any media device plugged into this TV under ANY circumstances. -
Page 24: Instant Recording
14. Media Recording. You may “Instant” record, use the EPG as a “Record Timer” or set the “Record Timer” from the menu and “Time Shifting”. Instant Recording. Select the programme you wish to record (Freeview only). Press the “Record” button once, Fig 39 will be displayed, to remove this press the “Record”... -
Page 25: Pvr Playback
13. Media Fig 41 Media Playback “Digital TV”. Index Press the “INDEX” button on the Remote control. A list of programmes stored on your HDD or Memory stick will be displayed. “Fig 41”. Move up and down the list using the ▲/▼ buttons. To see the details of the item listed, press the INFO button. - Page 26 13. Media Media Playback “Music”. Press the “SOURCE” button and select “MEDIA” a display as in Fig 40 will be shown. To select Music use the ► button. Press “OK” and Fig 46 will be displayed. Press “OK” again and Fig 47 will be displayed. Use the ►/◄ buttons to select the correct file, “Memory”.
-
Page 27: Dvd And Sd Card
14. Media Fig 52 Media Playback “Movie” cont... Select one of the files using the ►/◄ buttons and press OK. This will “Tick” that file and start playing in the box on the right. If you wish to select more files, tick these also. -
Page 28: Dvd Setup
15. DVD and SD card Operation Fig 56 SD Card Operation. To select the SD Card option, DVD must be selected first. Place a SD card into the slot “See page 9”. Press the button “Card/Disc/T Shift” on the Remote Control. Fig 56 will be displayed. Use the ▲/▼ buttons to select “MCR”... -
Page 29: Disc Care
16. DVD Setup Menus Audio Setup Page. (Fig 59) Fig 59 Downmix is defaulted to Stereo Preference page. (Fig 60). TV System. Select TV SYSTEM using the ▲/▼ buttons. The systems available will be shown in the right column. Select the required system using the ►... -
Page 30: Trouble Shooting Guide
18. Trouble shooting guide. Should you experience difficulties operating this product please consult the guide below before calling the Customer Help Line. SYMPTOM POSSIBLE CAUSE REMEDY Dead . No led lit Power not connected to TV Check power lead and mains supply connections and supply to the TV is turned No Picture. -
Page 31: Wall Mounting
Mount the TV to the wall bracket using 4 x 4mm x 10mm set screws. (Do NOT use longer screws as the internal parts of the TV may be damaged). Akura Ltd accepts no responsibility for damage, caused to or by, incorrect mounting of the wall bracket. Fig 61... -
Page 32: Specifications
These can be black or bright dots (red, green or blue) and may appear constantly on the Flat screen. This is a structural property of the Flat panel and is not a malfunction. Contact details :- Akura Limited. Spectra House. Spring Villa Park Spring Villa Road.
