Summary of Contents for Antec EarthWatts 350 Green

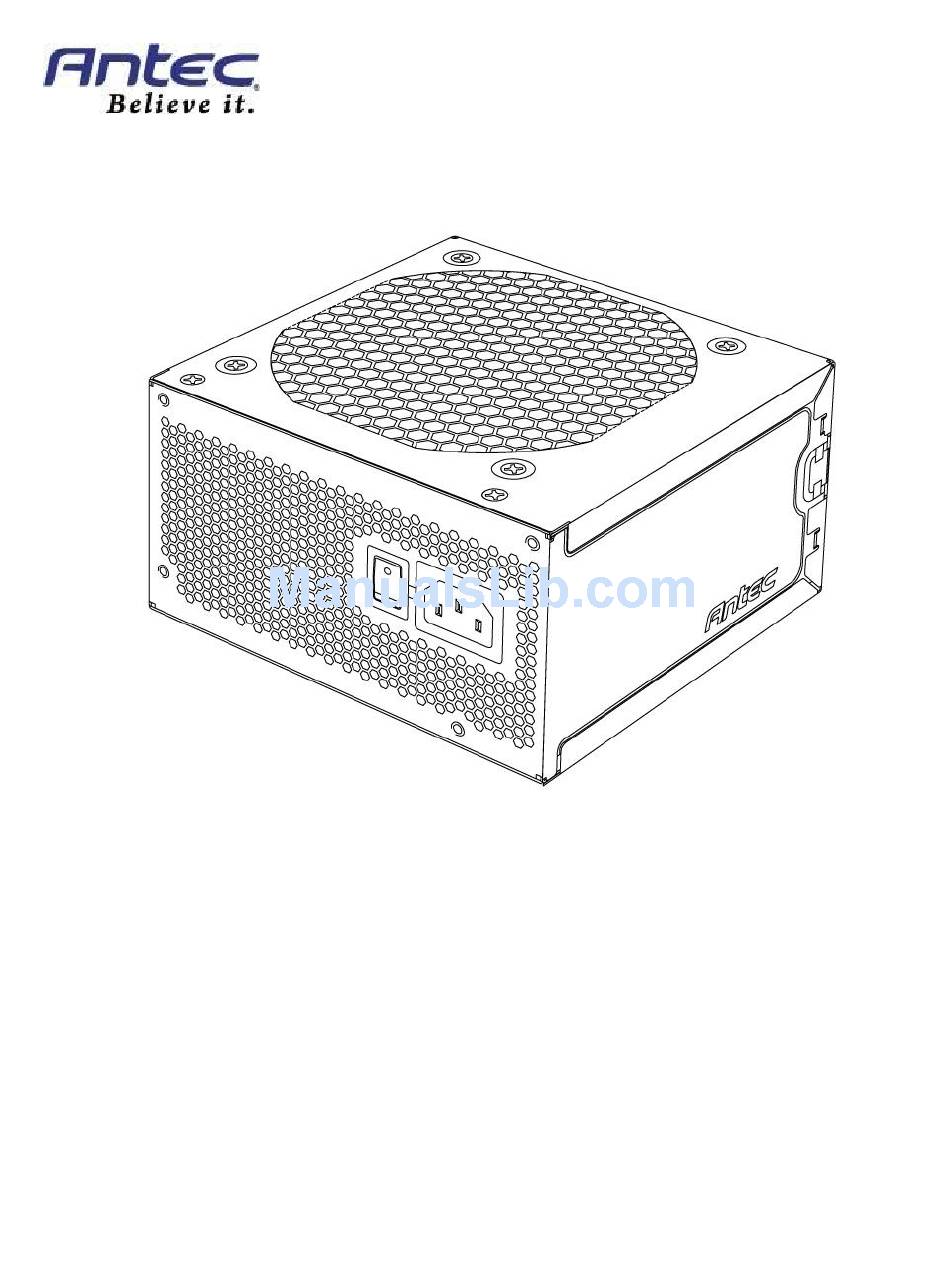

- Page 1 350 G ARTH ATTS REEN OWER UPPLY ’ ANUAL V1.0...
- Page 2 NERGY FFICIENT Get the power you need and the low electric bill you want with Antec’s EarthWatts 350 Green! One of the most environmentally friendly power supplies on the planet, the EA-350 Green delivers 350 watts of reliable, continuous power while meeting the Bronze level of performance from 80 PLUS®, the most widely recognized independent standard in power supply efficiency.
- Page 3 +12 V ISTRIBUTION The EA-350 Green PSU uses dual +12 volt power rails. Different connectors are hooked up to separate circuits to aid in the balanced distribution of power between devices in your computer. The +12V rails have been assigned to different connectors, as shown in Table 2, to prevent voltage sags in one device due to sudden demands for power by another device.
- Page 4 3: O ABLE UTPUT APACITY AND EGULATION Output Load Max. Regulation Ripple & Noise Voltage +3.3V ±5% 40mV ±5% 40mV +12V ±5% 80mV +12V ±5% 80mV –12V 0.3A ±10% 120mV +5Vsb 2.5A ±5% 40mV The continuous maximum total output power shall not exceed 350W. +12V and +12V DC maximum output power shall not exceed 330W.
- Page 5 3. Connect the 8-pin or 4-pin ATX12V connector for the CPU to the appropriate connector on your motherboard. If your motherboard has an 8-pin socket with a cover on some of the openings, we recommend that you remove the cover and use the 8-pin connector. Note: Please also refer to your motherboard user’s manual for any special instructions.
- Page 6 Europe +49-40-226-139-2 europe.techsupport@antec.com www.antec.com © 2011 Antec Inc. All rights reserved. Specifications are subject to change without prior notice. Actual product and accessories may differ from illustrations. Omissions and printing errors excepted. Content of delivery might differ in different countries or areas.
