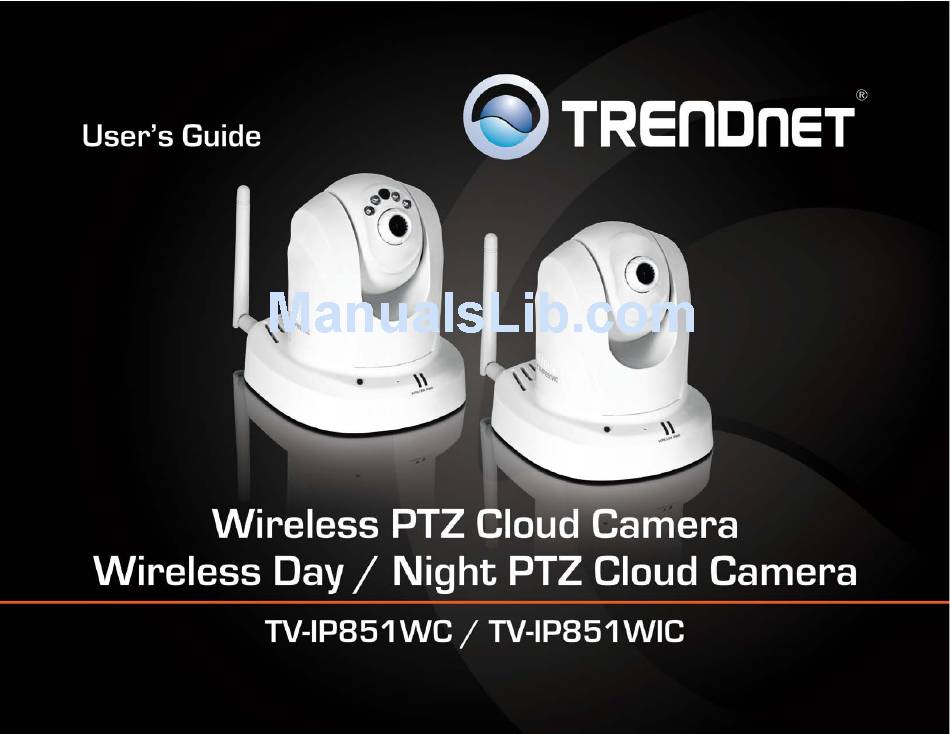

  • Page 1 Cover Page TRENDnet User’s Guide...

  • Page 2: Table Of Contents

    Mobile Apps, QR code Download Option ..............19 Firmware Upgrade ....................37 Configuration ..................22 Backup and Restore ....................37 Viewing Video ......................23 How to setup/access the camera remotely .......... 38 Viewing Camera Settings ..................... 24 © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 3 Table of Contents TRENDnet User’s Guide Technical Specifications............... 41 Troubleshooting .................. 44 © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 4: Product Overview

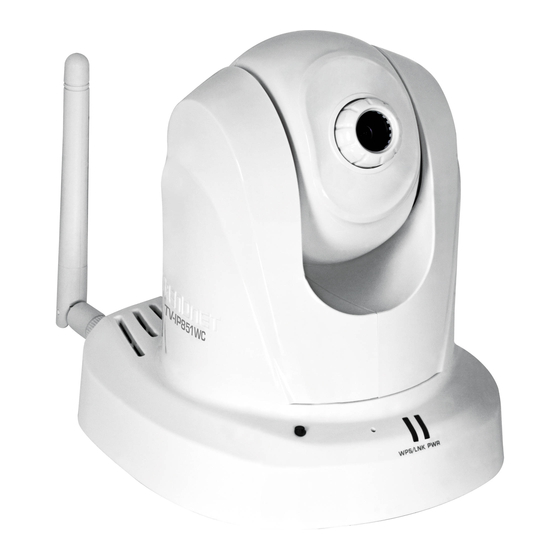

    Product Overview Features TV-IP851WC The Wireless PTZ Internet Camera, model TV-IP851WC, provides security over a large area. Pan the camera side-to-side a remarkable 340 degrees and tilt up-and-down 115 degrees from any Internet connection. Wireless n technology provides unsurpassed wireless coverage and improved streaming video quality.

  • Page 5: Product Hardware Features

    Otherwise if this LED indicator is off, there is no power to your camera. • Antenna – 2dBi detachable antenna • Link – This LED indicator is blinking orange when there is connection/data to your camera. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 6: Application Diagram

    TV-IP851WC / TV-IP851WIC TRENDnet User’s Guide Application Diagram © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 7: Installation Option Description

    LED will light up under the lens indicating that the camera has power. The Install wizard CD inside the package box will guide you step-by-step of wired or wireless options with the TRENDnet Cloud Service of installation; please refer to the page 8.

  • Page 8: Wall Mount Installation

    Secure the metal plate to the base of the Camera with the two screws provided. • The camera can now be mounted to the ceiling or a wall. See the diagram below for more information. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 9: Trendnet Cloud Service

    There are two methods to connect to the Internet, wired and wireless. For wireless, follow the instructions from Image A below. For wired, follow the instructions from There are three modes when connecting your TV-IP851WC/TV-IP851WIC to the Image B below.

  • Page 10: Green Mode

    Green Mode The Green Mode indicates the camera is connecting to media in a peer-to-peer fashion to the Internet or local network. This mode doesn’t offer configuration and management options – only live streaming. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 11: Install The Camera

    (WPS) button (Verify your router has a WPS button. If not, select the next option). b. Connect camera to your wireless network manually Connect camera to your network using a network cable. 1. This is TRENDnet’s Terms of Use. Click Agree to continue. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 12 5. Follow the instructions in the next screen to Power up the Camera. Click Next 7. The wizard searches the network for your camera. to continue, Back to go to the previous screen or Home to return to the Main Menu. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 13 Tick the Change Password checkbox to enter the new password details. The password should be between 8 and 16 characters. Click Next to continue, Back to go to the previous screen or Home to return to the Main Menu. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 14 Please refer to the page 19 for mobile apps download through the QR code option. 12. The mobile option allows the user to download the TRENDnet CloudView App in either Apple™ or Google™ android format. To use this feature, the user must have a QR Scanner App on their mobile device.

  • Page 15: Configure Wireless Settings

    3. The camera now searches for the settings you chose. 1. Follow the instructions in the screen to Power up the Camera. Click Next to continue, Back to go to the previous screen or Home to return to the Main Menu. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 16 Retry to scan for the camera again. Click Next to continue, Back to 6. The wizard configures your parameters. go to the previous screen or Home to return to the Main Menu. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 17 Please refer to the page 19 for mobile apps download through the QR code option. 8. The mobile option allows the user to download the TRENDnet CloudView App in either Apple™ or Google™ android format. To use this feature, the user must have a QR Scanner App on their mobile device.

  • Page 18: Connecting Wireless Network Manually

    Connect one end of the network cable to your camera and the other end to your router. Click Next to continue, Back to go to the previous screen or Home to return to the Main Menu. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 19 The password should be between 8 and 16 characters. Click Next to continue, Rescan link to scan the network again. Back to go to the previous screen or Home to return to the Main Menu. 6. The wizard configures your parameters. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 20 Under these circumstances, click Retry later again. If there is no warning, click Next. 10. The camera is connecting to the wireless network. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 21 TV-IP851WC / TV-IP851WIC TRENDnet User’s Guide 12. The mobile option allows the user to download the TRENDnet CloudView App in either Apple™ or Google™ android format. To use this feature, the user must have a QR Scanner App on their mobile device. This is also available from the Apple™...

  • Page 22: Mobile Apps

    QR Scanner App on their mobile device. This is also available from the The app copies the QR link and provides a HTML link to the TRENDnet app. Click on the Apple App Store or Google’s Play store. The QR codes of Apple and Android link.
  • Page 23 TV-IP851WC / TV-IP851WIC TRENDnet User’s Guide The TRENDnet icon will appear on your android device screen. Touch the icon to activate it. Download the app, install it and use the app on your mobile device to view the TRENDnet camera.
  • Page 24 Scan the QR Code using one of iOS’s QR Code apps. The app automatically creates an HTML link to the iTunes App Store. Link the link. You are immediately directed to the iTunes App Store. Click the link to download. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 25: Configuration

    If you did not use the AutoRun Wizard to set up your camera, the following page appears when you first login. When log in at the first time, the TRENDnet Cloud Terms of Use appears. Tick the Accept check box and click Next.

  • Page 26: Viewing Video

    Internet Explorer will prompt you to install ActiveX when you click on the VIEW VIDEO | ACTIVEX link. Mac users must use the Java mode to view video. The home page for the TV-IP851WC or TV-IP851WIC appears. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 27: Viewing Camera Settings

    Sun’s website free of charge (http://www.java.com) 1. Login to the camera 2. Click ADMINISTRATION. The system status screen appears. From the menu on the left side of the screen, select an option under the STATUS heading. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 28: System

    This screen shows the connection mode, link status, SSID name, channel and encryption status. Video This screen shows the details of the video capture settings including Video Resolution, Compression Rate, Frame Rate, Frame Size and Light Frequency. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 29: Network

    This screen shows whether there are any active users logged on to the camera viewing Address, Subnet Mask and Default Gateway. live video. Cloud Link This screen shows the Cloud server URL and its status. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 30: Configuring Camera Settings

    Camera Name: This is the name used to identify your camera on your network. • Location: You can enter a description of the place where the camera is. The TV-IP851WC/TV-IP851WIC allows you to make configuration changes from • Admin: In this field you can change the administrator user name and password.

  • Page 31: Audio

    • Light Frequency: Select the correct frequency (50Hz/60Hz) to reduce the amount of flicker. • Mirror: Choose whether to mirror the image horizontally or vertically. • Anti-Flicker: Check the box to enable anti-flicker. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 32: Wireless

    Connection Mode: Infrastructure is a wireless connection using an access point as a transmission point of all wireless devices. Ad-Hoc is a wireless connection used without an access point, where your TV-IP851WC or TV-IP851WIC is directly connected to your PC. This is done using the on-board wireless adapter on the TV-IP851WC or TV-IP851WIC connected to a wireless adapter on the PC.

  • Page 33: Network

    For example, if the port is changed to 1010, users must type “http://192.168.0.100:1010” instead of only “http://192.168.0.100”. • UPnP & UPnP Port Forwarding: Enable these to set your camera as a universal plug n play device on your network. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 34: Cloud Link

    • Delete User: Select a user from the drop down menu and click the Delete button to remove a user account from the camera. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 35: Date/Time

    Detection Areas: From the live image shown on this screen, you can left-click on blocks of the grid shown to indicate which parts of the screen you would like to monitor for motion. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 36: Upload

    Suffix and the pictures will be named with a date and time also. Select a Sequence Number Suffix up to 1024 and all the pictures will be numbered from 1-1024. Up to 1024 pictures can be configured. Picture number 1025 will reset to number 1. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 37 Motion Detection: Selecting this option sets the camera to e-mail images upon detection of motion. Manual Operation: Selecting this option means the user is responsible for taking a snapshot from the camera to e-mail. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 38: Day/Night Mode (For Tv-Ip851Wic)

    This section lets you configure the Day/Night vision modes on the IP camera. • Auto: The camera automatically detects the level of light and selects night The TV-IP851WC/TV-IP851WIC provides useful .tools to detect the connection, restart vision or normal mode. the camera, upgrade firmware, and backup and restore files.

  • Page 39: Ftp Server Test

    If you do not receive the test e-mail, you should check that you have entered the e-mail details correctly in the configuration section. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 40: Factory Reset

    Note: Upgrading the firmware is a sensitive process. Be sure that you have the correct firmware for your model of camera and do not disconnect the power during the upgrade process. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 41: How To Setup/Access The Camera Remotely

    HTTP Port on the camera is 80. The example shows above is using port number 9000. 4. Open another web browser and go to your Router’s Web Configuration page. (In the example, TRENDnet’s TEW-651BR Wireless N router is used) © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 42 The setup steps should be very similar. 2. Login to your router’s web configuration page. 3. Find the Dynamic DNS configuration section. 6. Open another web browser and enter your DDNS domain and camera’s port number. http://yourDomainName:PortNumber © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 43 Click Add to add the application. * Please refer to your router’s user’s manual for detail Virtual Server setting. Some router might use Port Forwarding or Special applications for this function. The setup steps should be very similar. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 44: Technical Specifications

    Reset to factory default 802.11g: up to 54 Mbps Privacy Button Privacy mode on/off 802.11n: up to 150 Mbps Power Consumption Max 6.1 watts Security 64/128-bit WEP, WPA/WPA2-PSK Power Input: 100~240V, 50/60 Hz, 0.5A © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 45 Synchronize with NTP server or PC, or set time / date manually Power, Link/Act WPS Button Push to enable WPS Reset Button Reset to factory default Privacy Button Privacy mode on/off Power Consumption Max 7.2 watts © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 46 Synchronize with NTP server or PC, or set time / date manually Antenna 1 x detachable 2 dBi dipole antenna (Reverse-SMA connector) Date Rate 802.11b: up to 11 Mbps 802.11g: up to 54 Mbps 802.11n: up to 150 Mbps © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 47: Troubleshooting

    © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 48 This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 49 Directive 1999/5/EC. Português TRENDnet declara que este TV-IP851WC / TV-IP851WIC está Español Por medio de la presente TRENDnet declara que el TV-IP851WC / [Portuguese] conforme com os requisitos essenciais e outras disposições da [Spanish] TV-IP851WIC cumple con los requisitos esenciales y cualesquiera Directiva 1999/5/CE.
  • Page 50 Download section limited to, duty, tax, and other fees. and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS the developers.
