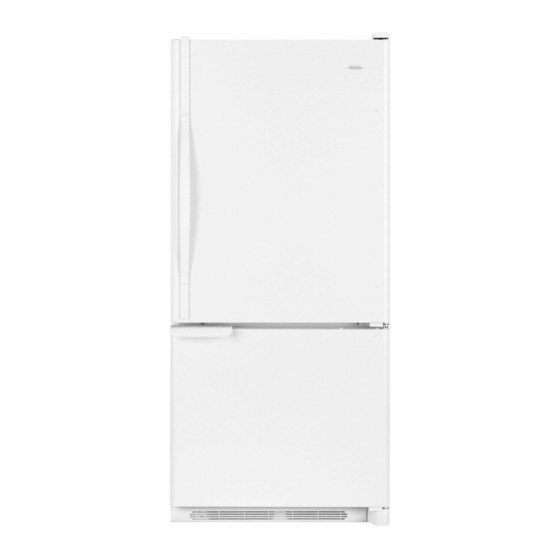

Related Manuals for Maytag PBF1951KEW - 30" Bottom Freezer Refrigerator
Summary of Contents for Maytag PBF1951KEW - 30" Bottom Freezer Refrigerator
- Page 1 CABINET PARTS REFRIGERATOR For Models: PBF1951KEW11 (White) 10−08 Litho In U.S.A. (mat)(bay) Part No. W10237823 Rev.A...
-
Page 2: Cabinet Parts
CABINET PARTS For Models: PBF1951KEW11 (White) Illus. Part DESCRIPTION Literature Parts W10175450 Use & Care Guide W10183305 Energy Guide W10169671 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) M0310729 White B5759649 Gasket 12580304 Roller Assy. (2) 67006744 Foot, Brake 67006642 Pin, Center Hinge 67006611 Bolt, Adjusting (Front Roller) -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Models: PBF1951KEW11 (White) W10237823... - Page 4 FREEZER LINER PARTS For Models: PBF1951KEW11 (White) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam 67005874 Guide, Fill Tube 67001285 Cover, Light 5 W10128551 Motor, Evaporator Y12570701 Socket, Light 12002355 Thermistor 67003568 Bulb, Light 67001035 Housing, Light 67005868 Cover, Evaporator 67006425 Screw 13 W10121318 Grommet...
-
Page 5: Freezer Door Parts
FREEZER DOOR PARTS For Models: PBF1951KEW11 (White) W10237823... - Page 6 FREEZER DOOR PARTS For Models: PBF1951KEW11 (White) Illus. Part DESCRIPTION Door, Freezer W10176974 White Handle, Door 67005140 White Gasket, Door W10164032 White 67006831 Screw, Handle Plug, Button (2) 10712401 White Plug, Handle Hole 12246601 White 67004977 Bushing (4) Stop, Door 67003779 White 67006287 Screw 67003397 Retainer,...
-
Page 7: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: PBF1951KEW11 (White) W10237823... - Page 8 REFRIGERATOR LINER PARTS For Models: PBF1951KEW11 (White) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 67002083 Module, Light 67001040 Belt, Damper 67001034 Tensioner, Belt 67001036 Timer, Defrost C3680310 Switch, Light 67002512 Knob, Front 67001035 Housing, Light A0282812 Bulb, Light (2) Y12570701 Socket, Light (2) 67002301 Cover, Light 12990514 Screw...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: PBF1951KEW11 (White) W10237823... - Page 10 REFRIGERATOR DOOR PARTS For Models: PBF1951KEW11 (White) Illus. Part DESCRIPTION Door, Refrigerator 67001138 White 67006682 Screw, Handle (2) 67003637 Door, Dairy 67001279 Tray, Dairy Bucket, Door 67001141 Small (2) 67001021 Medium (2) Plug, Handle Hole 12246601 White Plug, Button (2) 10712401 White Gasket, Door W10164030 White...
-
Page 11: Unit Parts
UNIT PARTS For Models: PBF1951KEW11 (White) W10237823... - Page 12 UNIT PARTS For Models: PBF1951KEW11 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 12002051 Evaporator Kit 67006433 Screw Following Parts Not Illustrated (Incl. Evap., Heat 2 W10156818 Blade, Fan Shield, & Instr. 12601104 Basepan and Optional Parts Not Included Sheet) 67006425 Screw 67005491 Block, Condenser...
-
Page 13: Shelf Parts
SHELF PARTS For Models: PBF1951KEW11 (White) W10237823... - Page 14 SHELF PARTS For Models: PBF1951KEW11 (White) Illus. Part DESCRIPTION 67001057 Rail, Center Crisper 67003879 Trim, Crisper 67006608 Screw 67006231 Shelf, Freezer 5 W10143565 Basket, Freezer (Lower) 10480441 Shelf (2) 67006360 Screw 67005864 Slide, Humidity Control 67004127 Divider, Basket (Upper) 67006400 Screw 67002569 Pan, Crisper 67001155 Brace, Crisper 67006937 Frame, Crisper...
-
Page 15: Icemaker Parts
ICEMAKER PARTS For Models: PBF1951KEW11 (White) W10237823... - Page 16 ICEMAKER PARTS For Models: PBF1951KEW11 (White) Illus. Part DESCRIPTION 2256086 Bracket, Ice Maker 67003729 Tube, Plastic 67003932 Clamp 489276 Screw 67003753 Valve−Inlet 67004028 Arm−Shut Off 67004710 Cover, Front A3223101 Insert, Tube 9 W10122527 Mold & Heater Assembly (Also Order 542638) 628515 Cup Water fill 627843 Ejector 2182124 Ice Stripper...
-
Page 17: Optional Parts
OPTIONAL PARTS For Models: PBF1951KEW11 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, TOUCH−UP (1/2oz.) PAINT, BULK (1 qt.) TORX SCREW WRENCH 72017 White 1117510 Torx Key 72032 Black 799344 White (Uncut) 4392901 Biscuit 799344 Black (Uncut) ACCESSORIES 4392900 Biscuit (Uncut) PAINT, PRESSURIZED SPRAY...
