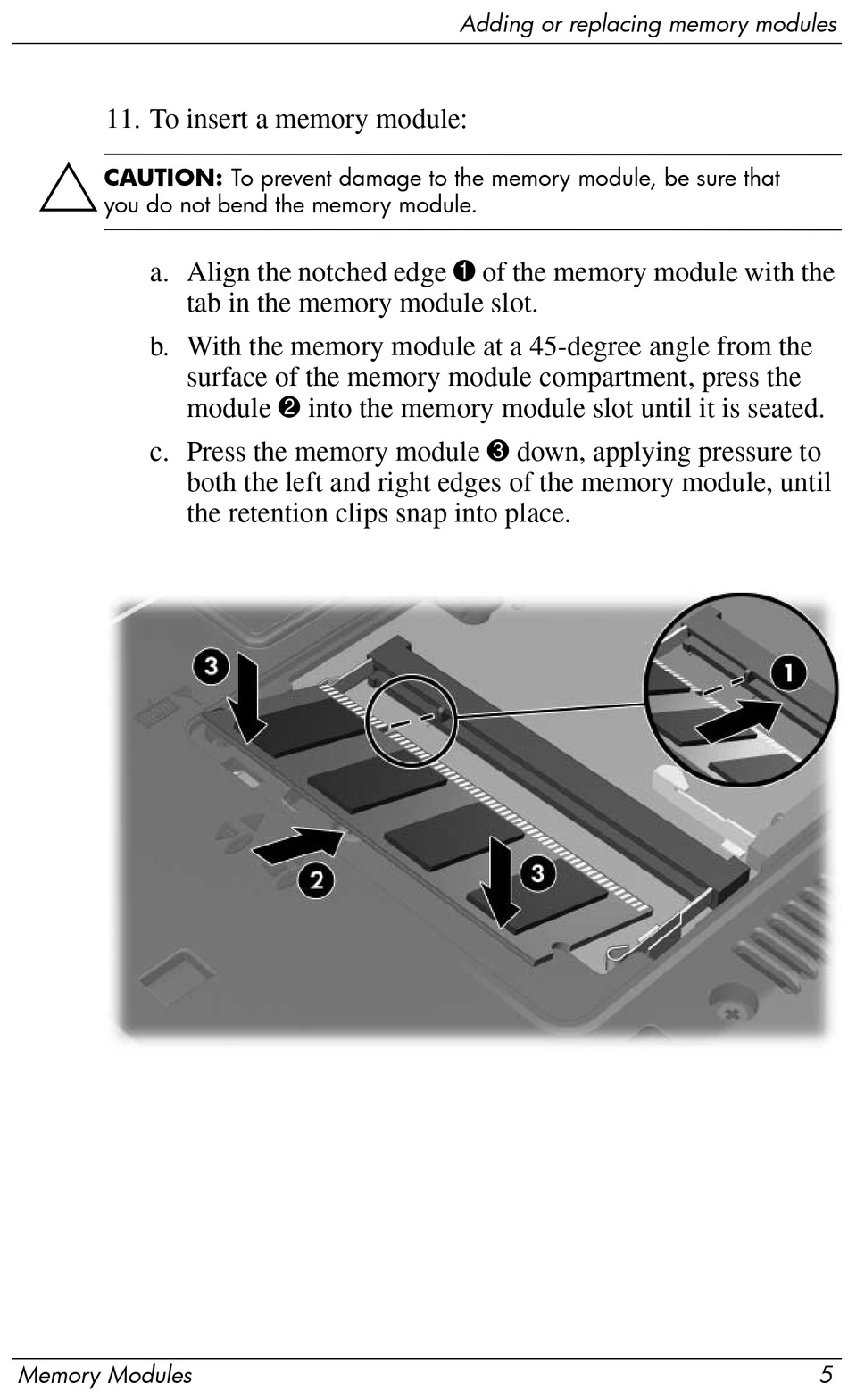

11. To insert a memory module:
Ä
CAUTION: To prevent damage to the memory module, be sure that
you do not bend the memory module.
a. Align the notched edge 1 of the memory module with the
b. With the memory module at a 45-degree angle from the
c. Press the memory module 3 down, applying pressure to
Memory Modules
tab in the memory module slot.
surface of the memory module compartment, press the
module 2 into the memory module slot until it is seated.
both the left and right edges of the memory module, until
the retention clips snap into place.
Adding or replacing memory modules
5
