QuickSpecs

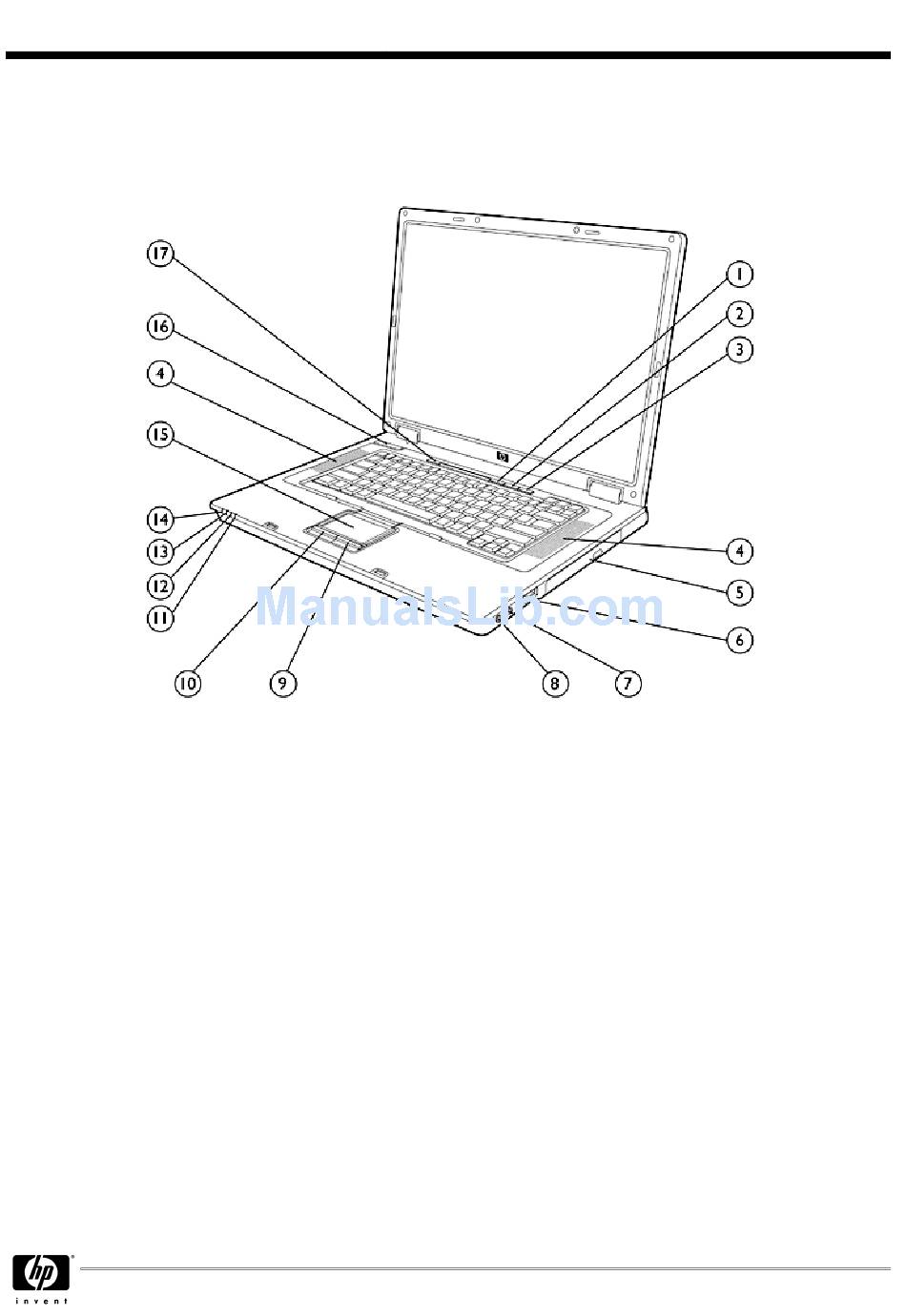

Overview
1. Volume Mute Button with LED
2. Volume Down Button
3. Volume Up Button
4. Stereo Speakers (2)
5. Integrated Optical Drive
6. 2 USB 2.0 Ports
7. Microphone Jack
8. Headphone Jack
9. Right Touchpad Button
DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007
HP Compaq nx7300 Notebook PC
HP recommends
Windows Vista™ Business
10. Left Touchpad Button
11. Hard Drive Activity LED
12. Battery Charging LED
13. Power/Standby LED
14. Wireless On/Off LED
15. Touchpad with scroll zone
16. Power Button with LED
17. Wireless On/Off Button with LED
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the nx7300 and is the answer not in the manual?

Questions and answers

Related Manuals for Compaq nx7300

Summary of Contents for Compaq nx7300

  • Page 1 6. 2 USB 2.0 Ports 7. Microphone Jack 8. Headphone Jack 9. Right Touchpad Button DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC HP recommends Windows Vista™ Business 10. Left Touchpad Button 11. Hard Drive Activity LED 12.
  • Page 2 667-MHz memory is supported at a maximum speed of 533 MHz by the 940GML Express Chipset. DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC 6. PC Card Slot 7. PC Card Eject Button 8.

  • Page 3: Standard Features

    Mobile Intel 945GM Express Chipset with 667-MHz front side bus Mobile Intel 940GML Express Chipset with 533-MHz front side bus DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC Genuine Windows Vista Business 32* Genuine Windows Vista Home Basic 32*...
  • Page 4 3945BG Network Connection DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC 15.4-inch WXGA display with 1280 x 800 resolution and 16M colors 15.4-inch WXGA BrightView display with 1280 x 800 resolution and 16M colors 15.4-inch WSXGA+ wide viewing angle display with 1680 x 1050...
  • Page 5 HP Mobile Data Protection System Fixed Optical Drives DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC Integrated support for 802.11a, b and g Up to 54-mbps data rate Integrated support for 802.11 b and g Up to 54-mbps data rate Bluetooth Specification v2.0 compliant...
  • Page 6 Up to 8 GB is reserved for the system recovery software. HP Backup and Recovery Manager can also create software recovery CDs or DVDs (requires optional hardware). DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC One - Type I/II One – VGA...
  • Page 7 Primary Battery Optional 8-Cell Extended Life Battery Optional HP 12-Cell Ultra-Capacity Battery DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC HP ProtectTools Security Manager Configuration Control Hardware Memory Change Alert Ownership Tag Setup Password...
  • Page 8 NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details. http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp. DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC 8-cell (69Wh) Primary Up to 5 hours and 45 minutes Up to 9 hours and 45 minutes...
  • Page 9 HP 12-cell Ultra-Capacity Battery Carrying Cases HP Entry Value Case HP Top Load Nylon Case HP Executive Leather Case HP Sport Backpack DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC EX150AA#xxx PA509A#xxx DT533A#xxx DT534A#ABA ED494AA#xxx ED495AA#xxx...
  • Page 10 HP PCMCIA Smart Card Reader HP/Kensington Cable Lock Input/Output Devices USB/PS2 Keyboard USB/PS2 Optical Mouse HP USB Optical Travel Mouse DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC DC852A#xxx DC350B PC766A DC369A F2100A Page 10...
  • Page 11 ** 667-MHz memory is supported at a maximum speed of 533 MHz by the Mobile Intel 940GML Express Chipset. DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC Slot 1 512 MB...
  • Page 12 Fixed optical drive bay Fixed optical drive bay Quantity Supported Drive Bay Dedicated hard drive bay Dedicated hard drive bay Dedicated hard drive bay Dedicated hard drive bay Dedicated hard drive bay Dedicated hard drive bay HP Compaq nx7300 Notebook PC Page 12...

  • Page 13: Technical Specifications

    Industry Standard Certifications DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC 1.2 in (at front) x 14.1 in x 10.2 in 30 mm (at front) x 357 mm x 260 mm 5.6 lb (2.54 kg)
  • Page 14 Battery Re-Charge Time Fuel Gauge DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC 4.17 x 1.85 x 1.1 in (10.6 x 4.7 x 2.8 cm) 0.62 lb (280 g) 100 to 240 VAC...
  • Page 15 Dimensions (H x W x L) 0.8 x 1.9 x 10.6 in (2.0 x 4.8 x 27.0 cm) Battery Weight Cells/Type Energy Temperature Battery Re-Charge Time DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC 1.00 lb (0.455 kg) 8-cell Lithium-Ion Voltage 14.4V Watt-hour Capacity 52Wh Amp-hour Capacity 3.6Ah Operating (Charging) 32°...
  • Page 16 Number of Colors Contrast Ratio Refresh Rate Brightness Pixel Resolution Backlight Viewing Angle DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC 0.74 lb (0.336 kg) 6-cell Lithium-Ion Voltage 10.8V Watt-hour Capacity 43Wh Amp-hour Capacity 4.0Ah...
  • Page 17 Operating Temperature41° to 140° F (5° to 60° C) [case temp] Features DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC 13.0 x 8.1 in (33.1 x 20.7 cm) 15.4 in (39.1 cm) BrightView...
  • Page 18 Logical Blocks Operating Temperature41° to 140° F (5° to 60° C) [case temp] Features DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC 0.22 lb (101 g) 100 GB 0.37 in (9.5 mm) 2.75 in (70 mm) ATA-7 / SATA 1.0a...
  • Page 19 Supported Media (write)None Max Media Capacity (read) Transport DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC 0.22 lb (101 g) 40 GB 0.37 in (9.5 mm) 2.75 in (70 mm) ATA-7 / SATA 1.0a...
  • Page 20 Supported Media (write)CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, LightScribe Max Media Capacity (read) Max Media Capacity (write) Transport DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC Random <110 ms CD <130 ms DVD 3,600 KB/s 8X DVD 10,800 KB/s...
  • Page 21 Signal to Noise Ratio Total Harmonic Distortion Noise Floor Play/Record Sampling Rate(s) DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC Random <175 ms CD <230 ms DVD 3,600 KB/s 8X DVD 10,800 KB/s...
  • Page 22 Approvals/ Certifications Data Mode Capabilities V.92 data DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC 2 Watts 4 Ohms 10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13- 100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses...
  • Page 23 Idle mode : 390 mW (nominal) Sleep mode: 20 mW (max) ACPI compliant power management 802.11 compliant power saving mode 54 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm HP Compaq nx7300 Notebook PC Page 23...
  • Page 24 Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4). Multinational support with frequency bands and channels compliant to local regulations. HP Compaq nx7300 Notebook PC 1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment 1200 feet – Outdoor Open Area 300 feet –...
  • Page 25 LED Off – Radio OFF; Solid LED On – Radio ON IEEE 802.11a IEEE 802.11b IEEE 802.11g HP Compaq nx7300 Notebook PC 600 feet – Outdoor Open Area 150 feet – Indoor, Office environment 1200 feet – Outdoor Open Area 300 feet –...
  • Page 26 Non-operating Operating Non-operating Operating Non-operating HP Compaq nx7300 Notebook PC 600 feet – Outdoor Open Area 150 feet – Indoor, Office environment 1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment 1200 feet – Outdoor Open Area 300 feet –...
  • Page 27 54 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm High efficiency dual band antenna with spatial diversity, mounted in the display enclosure 802.11 b – Typical (@1 Mbps) HP Compaq nx7300 Notebook PC 1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment Page 27...
  • Page 28 OS Support Bluetooth Software Supported Link Topology DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC 802.11 g – Typical 1200 feet – Outdoor Open Area (@1 Mbps) 300 feet – Indoor, Office environment PCI-Express MiniCard 0.013 lb (6 g)
  • Page 29 System Configuration The configuration used for the Energy Consumption and Declared Noise DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC Full support of Bluetooth Security Provisions Microsoft Windows ACPI, and USB Bus Support...
  • Page 30 Fixed Disk (random writes) Batteries Additional Information This product is in compliance with the Restrictions of Hazardous DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC 115 VAC 230 VAC 23 W 23.5 W 1.72 W...
  • Page 31 Packaging Material Usage DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC ISO/IEC 15412 Input devices of this product comply with ISO 9241, part 9. Plastics parts weighing over 0.055 pounds (25 grams) used in the product are marked per ISO 11469 and ISO1043.
  • Page 32 HP shall not be liable for technical or editorial errors or omissions contained herein. DA - 12614 Worldwide QuickSpecs — Version 3 — 1.30.2007 HP Compaq nx7300 Notebook PC Ozone Depleting Substances Polybrominated Biphenyls (PBBs)
