R10
mm
R5
mm
7
mm
12
mm
490
+1 mm
514
+1 mm
If you use a protection box (the additional acces-
1)
sory
), the front airflow space of 5 mm and pro-
tective floor directly below the appliance are not
necessary.
You can not use the protection box if you install
the appliance above an oven.
1) The protection box accessory may not be available in some countries. Please contact your local supplier.
min. 600
mm
750
+1 mm
774
+1 mm
min.
38 mm
min.
5 mm

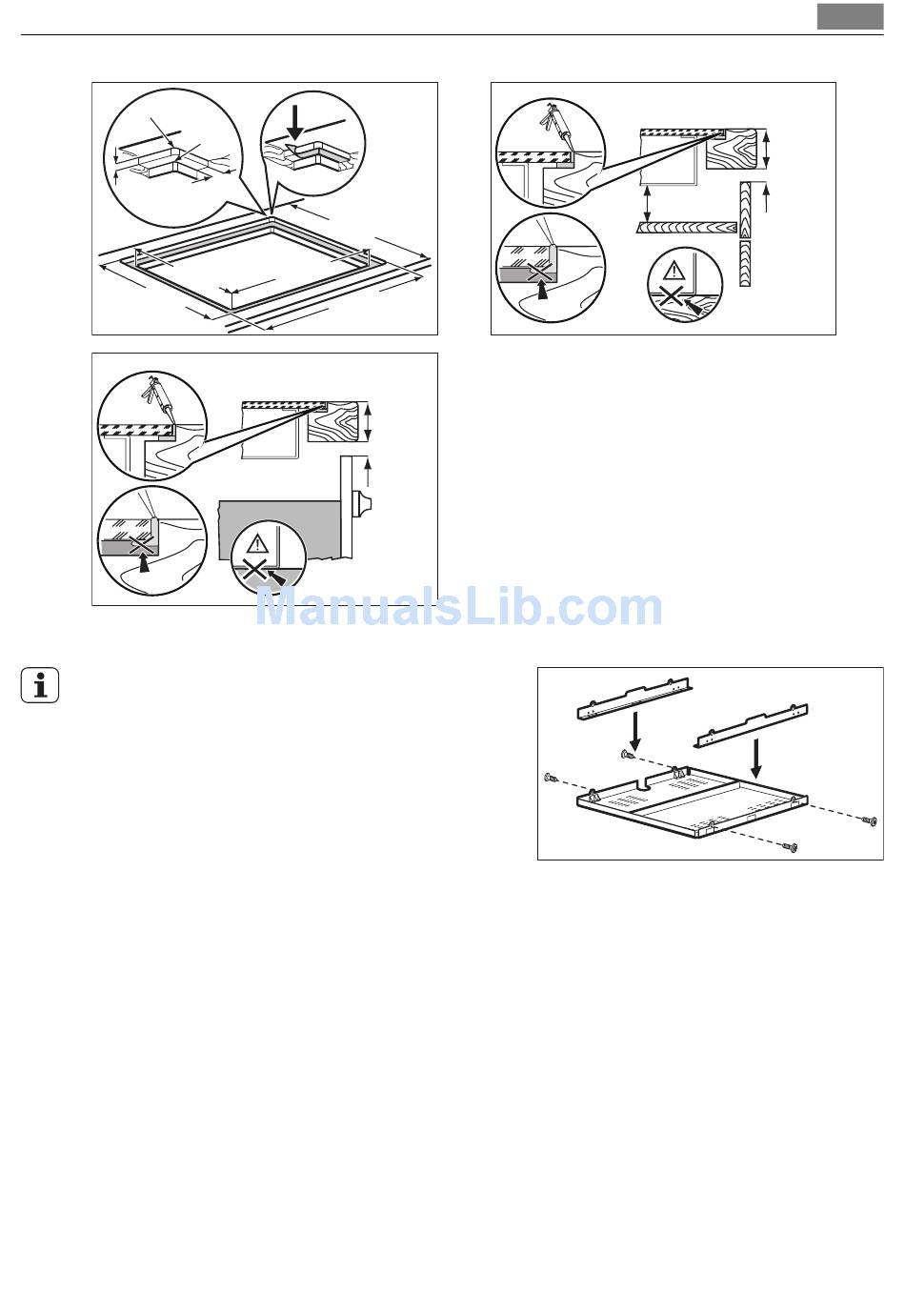

Installation instructions
min.
20 mm
7
min.
25 mm
min.
5 mm
