GE GTDL740GDWW Dimensions And Installation Information

7.8 cu. ft. capacity long-venting gas dryer

Hide thumbs Also See for GTDL740GDWW:

Download this manual See also: Technical & Service Manual, Use and Care Manual

Enlarged version

GTDL740GD

7.8 cu. ft. capacity long-venting gas dryer

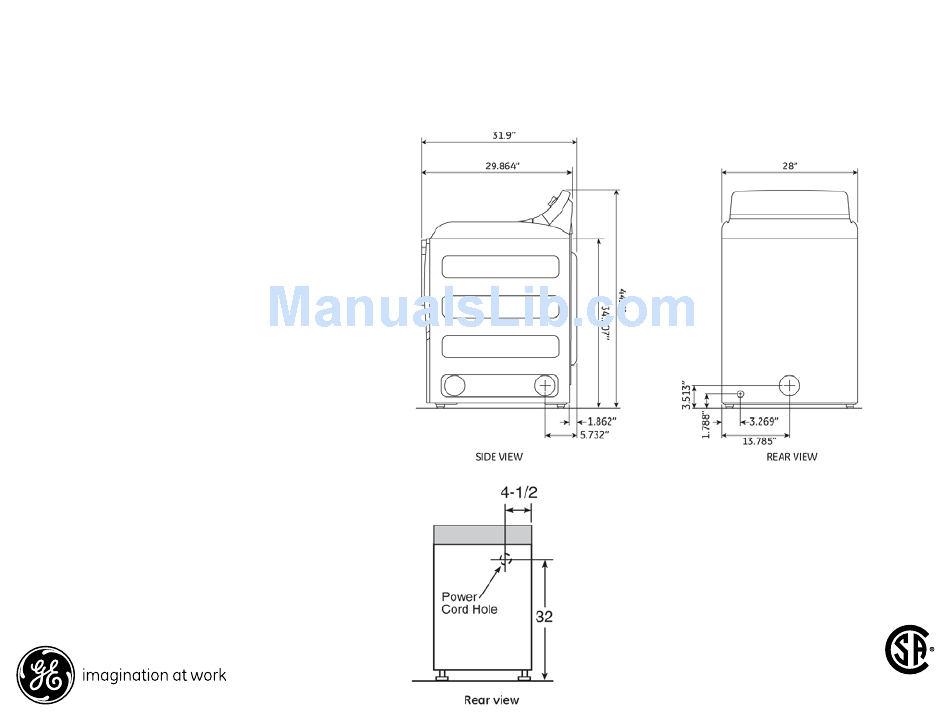

Dimensions and Installation Information (in inches)

Exhaust Options:

2-way via rear and bottom. Dryer is shipped exhausted to the rear.

Alternate exhausting knockouts are supplied.

Gas: An individual properly-grounded branch circuit, with a three-

prong grounding-type receptacle, protected by a 15 or 20 amp

circuit breaker or a time-delay fuse is required.

Gas Dryer Electric Rating: 120V, 60Hz, 9A

Gas (BTU/HR): 16,000. Factory-equipped for natural gas. Tested for

LP gas. LP gas supply requires a conversion kit. Check installation

instructions for correct kit and have a qualified gas technician install a

conversion kit. See dryer ducting information for proper installation.

Note: Dryer wall outlet must be located within 36" of service cord

entry and accessible when dryer is mounted in position.

Installation Information: For complete information, see installation

instructions packed with your dryer.

For answers to your Monogram,

GE Profile

appliance questions, visit our website at

geappliances.com or call GE Answer Center

service, 800.626.2000.

™

Power Cord Locations 7.8 cu. ft. dryers

Specification Created 7/12

370170

Page 1 Installation Information: For complete information, see installation instructions packed with your dryer. For answers to your Monogram, GE Profile ® ™ appliance questions, visit our website at ® geappliances.com or call GE Answer Center ® service, 800.626.2000. Specification Created 7/12 370170...
Page 2 120 sq. in. of open area equally distributed. For more information on venting kits and accessories, please call 1-800-GE CARES. • No other fuel-burning appliance shall be installed in the same closet with a gas dryer.
Page 3 - Save up to 10% on energy costs without sacrificing drying ™ performance, thanks to this option that reduces temperatures on select cycles • 150 ft. long-venting capability provides flexible installation • Model GTDL740GDWW – White on white For answers to your Monogram, GE Profile ® ™...
