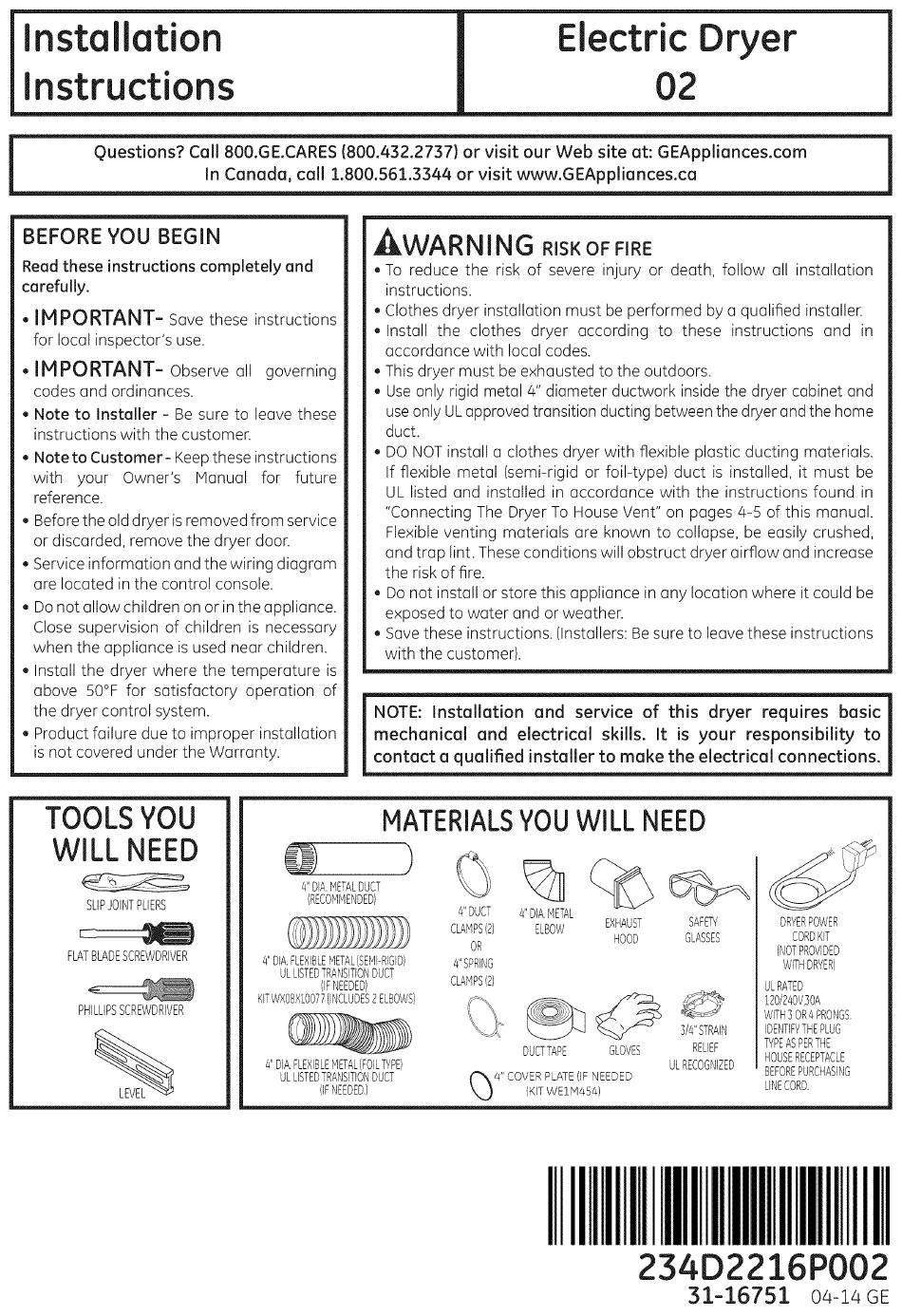

GE 02 Installation Instructions Manual

Installation
Instructions
Electric Dryer
02
I
Call 800.GE.CARES 1800.432.2737) visit Web site at:
Questions?
or our
GEAppliances.com
In Canada, call 1.800.561.3344 or visit www.GEAppliances.ca
m
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
. IMPORTANT- sove
these instructions
for Iocol inspector's use.
, IMPORTANT = Observe oll governing
codes ond ordinonces.
, Note to Installer- Be sure to leove these
instructions with the customer.
, Note to Customer- Keep these instructions
with your Owner's Manual for future
reference.
, Before the old dryer is removed from service
or discorded, remove the dryer doon
, Service informotion ond the wiring diogrom
are Iocoted in the control console.
, Do not ollow children on or in the opplionce.
Close supervision of children is necessory
when the opplionce is used neor children.
,Instoll the dryer where the temperoture is
above 50°F for satisfactory operation of
the dryer control system.
, Product foilure due to improper instollotion
is not covered under the Vorronty.
WARNING
RISK OF FIRE
, To reduce the risk of severe injury or deoth, follow oll instollotion
instructions.
, Clothes dryer instollotion must be performed by o quolified instollen
,Instoll the clothes dryer occording to these instructions ond in
occordonce with Iocol codes.
, This dryer must be exhousted to the outdoors.
, Use only rigid metol 4" diometer ductwork inside the dryer cobinet ond
use only UL opproved tronsition ducting between the dryer ond the home
duct.
, DO NOT instoll o clothes dryer with flexible plostic ducting moteriols.
If flexible metol (semi-rigid or foil-type) duct is installed, it must be
UL listed ond instolled in occordonce with the instructions found in
"Connecting The Dryer To House Vent" on pages 4-5 of this monuol.
Flexible venting moteriols ere known to collopse, be eosily crushed,
and trop lint. These conditions will obstruct dryer airflow and increose
the risk of fire.
, Do not instoll or store this opplionce in ony Iocotion where it could be
exposed to woter ond or weothen
,Sove these instructions. (Instollers: Be sure to leave these instructions
with the customer).
NOTE: Installation and service of this dryer requires basic
mechanical and electrical skills. It is your responsibility to
contact a qualified installer to make the electrical connections.
TOOLS YOU
WILL NEED
SLIP JOINT PLIERS
FLAT B LADE SCREWDRIVER
PHILLIPS SCREWDRIVER
MATERIALS YOUWILL NEED
4"DIA, M ETAL DUCT
(RECOMMENDED)
}
4"DIA, F LEXIBLE METAL (SEMI-RIGID)
ULLISTED TRANSITION DUCT
(IF NEEDED)
KITWXOBX!OO77 (INCLUDES 2ELBOWS)
4"DIA, FLEXIBLE METAL (FOIL TYPE)
ULLISTED TRANSITION DUCT
(IF NEEDED,)
#'DUCT
%
4"DIA, METAL
ELBOW
CLAMPS (2) EXHAUST
HOOD
OR
4"SPRING
CLAMPS (2)
DUCT TAPE
GLOVES
SAFETY
GLASSES
3/4" S TRAIN
RELIEF
ULRECOGNIZED
DRYER POWER
CORD K IT
(NOT P ROVIDED
WITH DRYER)
UL RATED
!20/240V,30A
WITH 3 OR4PRONGS,
IDENTIFY THE PLUG
TYPE A SPER T HE
HOUSE RECEPTACLE
BEFORE PURCHASING
LINE C ORD,
I, II IIIIIIIIIIIIIII
234D2216P002
31-16751 0a-la GE
