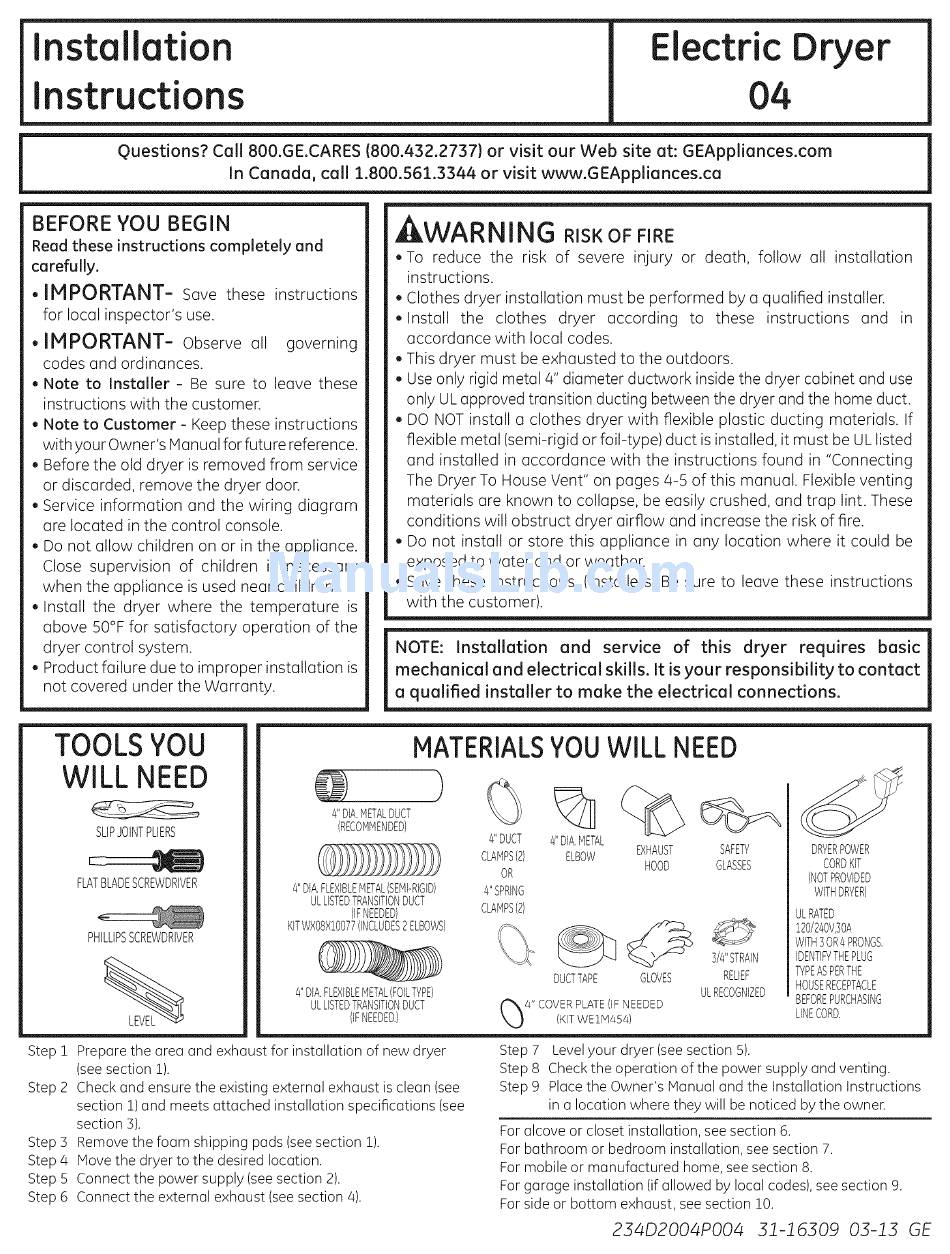

GE GTDL210ED2WW Installation Instructions Manual

Installation
Instructions
Electric Dryer
O4
In Canada, call 1.800.561.3344 or visit www.GEAppliances.ca
BEFORE YOU BEGIN
Read these instructions completely and
corefully.
,
IMPORTANT-
Save these instructions
for local inspector's use.
, IMPORTANT- Observe oil governing
codes and ordinances.
, Note to Installer - Be sure to leave these
instructions with the customer.
, Note to Customer - Keep these instructions
with your Owner's Manual for future reference.
, Before the old dryer is removed from service
or discarded, remove the dryer door.
, Service information and the wiring diagram
are located in the control console.
, Do not allow children on or in the appliance.
Close supervision of children is necessary
when the appliance is used near children.
, Install the dryer where the temperature is
above 50°F for satisfactory operation of the
dryer control system.
, Product failure due to improper installation is
not covered under the Warranty.
WARNING
RiSK OF FIRE
,To reduce the risk of severe injury or death, follow all installation
instructions.
, Clothes dryer installation must be performed by u qualified installer.
Install the clothes dryer according to these instructions and in
accordance with local codes.
This dryer must be exhausted to the outdoors.
Use only rigid metal 4" diameter ductwork inside the dryer cabinet and use
only ULapproved transition ducting between the dryer and the home duct.
DO NOT install u clothes dryer with flexible plastic ducting materials. If
flexible metal (semi-rigid or foil-type) duct is installed, it must be UL listed
and installed in accordance with the instructions found in "Connecting
The Dryer To House Vent" on pages 4-5 of this manual. Flexible venting
materials are known to collapse, be easily crushed, and trap lint. These
conditions will obstruct dryer airflow and increase the risk of fire.
Do not install or store this appliance in any locution where it could be
exposed to water and or weather.
Save these instructions. (Installers: Be sure to leave these instructions
with the customer).
NOTE: Installation and service of this dryer requires basic
mechanical and electrical skills. It is your responsibility to contact
a qualified installer to make the electrical connections.
TOOLS YOU
WILL NEED
SLIP JOINT PLIERS
FLAT BLADE SCREWDRIVER
PHILLIPS SCREWDRIVER
MATERIALS YOUWILL NEED
4"DA METAL D UCT
(RECOMMENDED}
)
4"DIA, F LEXIBLE METAL (SEMI-RIGID)
UL LISTED TRANSITION DUCT
(IF NEEDED}
KIT WXOBX!O077 (INCLUDES 2ELBOWS}
4"DIA. FLEXIBLE METAL (FOIL TYPE)
UL LISTED TRANSITION DUCT
(FNEEDED,)
#'DUCT
%
4"DA METAL
ELBOW
CLAMPS (2) EXHAUST
HOOD
OR
#'SPRING
CLAMPS (2)
DUCT TAPE
GLOVES
%
SAFETY
GLASSES
3/4" S TRAIN
RELIEF
ULRECOGNIZED
DRYER POWER
CORD K IT
(NOT P ROVIDED
WITH DRYER)
UL RATED
!20/240V,30A
WFH] OR 4PRONGS,
IDENTIFY THE P LUG
TYPE A SPER T HE
HOUSE RECEPTACLE
BEFORE PURCHASING
LINE C ORD,
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Prepare the area and exhaust for installation of new dryer
(see section 1).
Check and ensure the existing external exhaust is clean (see
section 1) and meets attached installation specifications (see
section 3).
Remove the foam shipping pads (see section 1).
Move the dryer to the desired location.
Connect the power supply (see section 2).
Connect the external exhaust (see section/4).
Step 7 Level your dryer (see section 5).
Step 8 Check the operation of the power supply and venting.
Step 9 Place the Owner's Manual and the Installation Instructions
in a location where they will be noticed by the owner.
For alcove or closet installation, see section 6.
For bathroom or bedroom installation, see section 7.
For mobile or manufactured home, see section 8.
For garage installation (if allowed by local codes), see section 9.
For side or bottom exhaust, see section 10.
