Installation and Operating
Instructions
EHP6602K
g
822 924 207-A-020603-03

Advertisement

loading

  Also See for Electrolux U24254 EHP6602K

  Summary of Contents for Electrolux U24254 EHP6602K

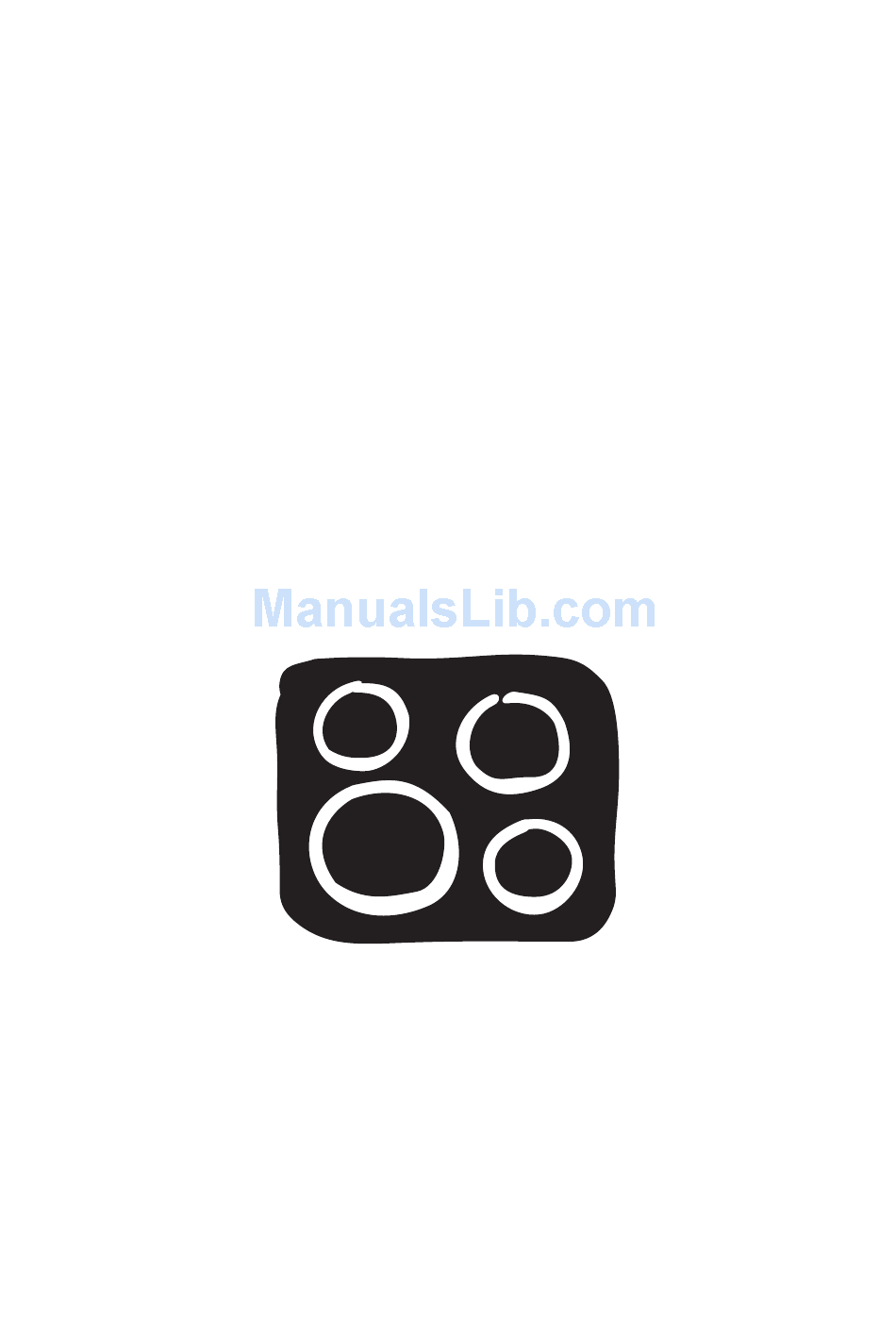

  • Page 1 C e r a m i c g l a s s h o b Installation and Operating Instructions EHP6602K 822 924 207-A-020603-03...
  • Page 2: Dear Customer

    Dear Customer, Please read these operating instructions carefully. Above all, please observe the “safety” section on the first few pages. Please retain these operating instructions for later reference. Pass them on to any subsequent owners of the appliance. The following symbols are used in the text: Safety Instructions Warning: Information concerning your personal safety.
  • Page 3: Table Of Contents

    Contents Operating Instructions Safety ............Disposal .
  • Page 4: Operating Instructions

    Operating Instructions Safety The safety aspects of this appliance comply with accepted technical stand- ards and the German Appliance Safety Law. However, as manufacturers we also believe it is our responsibility to familiarise you with the following safety instructions. Electrical Safety •...
  • Page 5: Safety When Cleaning

    Safety When Cleaning • For safety reasons do not clean the appliance with a steam jet or high pressure cleaner. • Clean the hob in accordance with the maintenance and cleaning instruc- tions in this manual. To Avoid damaging your appliance •...
  • Page 6: Disposal

    Disposal Disposing of the packaging material All materials used can be fully recycled. Plastics are marked as follows: • >PE< for polyethylene, as used for the outer wrapping and the bags in- side. • >PS< for polystyrene foam, e.g., as used for the padding materials. They are completely free of CFCs.
  • Page 7: Description Of The Appliance

    Description of the Appliance Cooking zones and control panel Single Cooking Zone 1200W Single Cooking Zone 1700W Four Residual Heat Indicators (separate for each zone) Single Cooking Zone 1700W Control Knobs Single Cooking Zone 1200W Control Knobs for Rear Right Cooking Zone for Rear Left Cooking Zone for Front Right Cooking Zone for Front Left Cooking Zone...
  • Page 8: Before Using For The First Time

    Before using for the first time Initial Cleaning Wipe the ceramic glass surface with a damp cloth. Important: Do not use any caustic, abrasive cleaners! The surface could be damaged. Operating the hob When a cooking zone is switched on, it may hum briefly. This is a character- istic of all glass ceramic cooking zones and does not impair either the func- tion or the life of the appliance.
  • Page 9: Cooking On The Zones

    Cooking on the Zones 1.Select a high setting for heating up / browning. 2.As soon a steam starts to form or the oil is hot, turn back to the heat setting necessary for further cooking. 3.To stop cooking, turn back to the zero position.
  • Page 10: Residual Heat Indicator

    Residual heat indicator The ceramic cooking zone is equipped with a residual heat indicator, a con- trol lamp is allocated to each cooking zone. This lights up as soon the corre- sponding cooking zone is hot and warns against inadvertant contact. The residual heat indicator only goes out when the cooking zone has cooled down even when the cooking zone is switched Off.
  • Page 11: Uses, Tables And Tips

    Uses, tables and tips Pans The better the pan, the better the results. • You can recognise good pans by their bases. The base should be as thick and flat as possible. • Pay particular attention when buying new pans to the diameter of the base.
  • Page 12: Chart For Setting The Cooking Zones

    Chart for Setting the Cooking Zones The setting position required for cooking processes is dependent on the quality of the pots and on the type and amount of the food. Heat Setting 11-12 10-11 Quick frying Frying without Simmering simmering When heating up or frying, we recommend heat setting “12", and then con- tinue cooking foods at an appropriate lower heat setting.
  • Page 13: Cleaning And Care

    Cleaning and care Important: Cleaning agents must not come into contact with the hot ce- ramic glass surface! All cleaning agents must be removed with plenty of clean water after cleaning because they can have a caustic effect when the rings are next heated! Do not use any aggressive cleaners such as grill or oven sprays, coarse scourers or abrasive pan cleaners.
  • Page 14: Hob Frame

    Problem Dirt 1.Remove burnt-on sugar, melted plastic, aluminium foil or other meltable materi- als with a glass scraper immediately and while still hot. Important: There is a risk of burning yourself when the glass scraper is used on a hot cooking zone! 2.Then clean the hob normally when it has cooled down.
  • Page 15: What To Do If

    What to do if … Rectifying faults It is possible that faults have been caused by a minor error, which you can correct yourself with the help of the following instructions. Do not attempt any further repairs if the following instructions do not help in each specific case.
  • Page 16: Installation Instructions

    Installation Instructions Important! The new appliance may only be installed and connected by a registered specialist. Please observe this instruction, otherwise the warranty will not cover any damage that may occur. Technical Data Appliance dimensions Width Depth Height Worktop cut-out dimensions Width Depth Corner radius...
  • Page 17: Regulations, Standards, Directives

    Regulations, Standards, Directives This appliance meets the following standards: • EN 60 335-1 and EN 60 335-2-6 relating to the safety of electrical appliances for household use and similar purposes and • EN 60350, or DIN 44546 / 44547 / 44548 relating to the operating features of electric cookers, hobs, ovens, and grills for household use.
  • Page 18: Safety Instructions For The Installer

    Safety Instructions for the Installer • A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors.
  • Page 19: Electrical Connection

    Electrical Connection Before connecting, check that the nominal voltage of the appliance, that is the voltage stated on the rating plate, corresponds to the available supply voltage. The rating plate is located on the lower casing of the hob. The heating element voltage is AC230V~. The appliance also works per- fectly on older networks with AC220V~.
  • Page 21: Assembly

    Assembly...
  • Page 23: Guarantee Conditions

    Guarantee Conditions Standard guarantee conditions We, Electrolux, undertake that if within 12 months of the date of the pur- chase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option re-...
  • Page 24 • Your new home is within the European Community (EC) or European Free Trade Area. • The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household. • The product is installed taking into account regulations in your new coun- try.
  • Page 25: Service And Spare Parts

    Customer Care For general enquiries concerning your Electrolux appliance or for further in- formation on Electrolux products please contact our Customer Care Depart- ment by letter or telephone at the address below or visit our website at www.electrolux.co.uk.
  • Page 26: Rating Plates

    Rating Plates...
