Frigidaire FAD504DWD Use And Care Manual

Use and care guide.
Hide thumbs

All about the
Use &Care
of your
Important Safety Instructions ............................... 2
..............................................................
.......................................................
Operating Instructions ..........................................
www.frigidaire.com USA 1-800-944-9044
Dehumidifier
TA B L E O F C O N T E N T S
3
3
4-8
www.frigidaire.ca Canada 1-800-265-8352
Care And Cleaning .............................................. 8
Storage .............................................................
Before You Call ................................................... 9
Major Appliance Limited Warranty ........................ 10
8

   Related Manuals for Frigidaire FAD504DWD

   Summary of Contents for Frigidaire FAD504DWD

  • Page 1

    TA B L E O F C O N T E N T S Important Safety Instructions ....... 2 Care And Cleaning ..........8 Location .............. Storage ............. Before You Call ........... 9 How It Works ............Major Appliance Limited Warranty ......10 Operating Instructions .......... www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352...

  • Page 2: Important Safety Instructions

    Important Safety Instructions NOTE: This USE & CARE MANUAL provides specific operating instructions for your model. Use the dehumidifier only as instructed in this USE & CARE MANUAL. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating, and maintaining any appliance.

  • Page 3: Location, How It Works

    Location & How It Works Selecting a Location Location IMPORTANT: 1. Dehumidifier must be operated in an enclosed area to be most effective. Close all doors, windows, and other outside openings to the room. The effectiveness of the dehumidifier depends on the rate at which new moisture-laden air enters the room. 2.

  • Page 4: Operating Instructions

    Operating Instructions Operating Instructions Allow the unit to reach room temperature before operating. To begin operating the dehumidifier, follow these steps: NOTE: Unit must be upright for one hour prior to operating. 1. Plug the power cord into a properly grounded 115 volt AC outlet. NOTE: If the "BUCKET FULL"...

  • Page 5

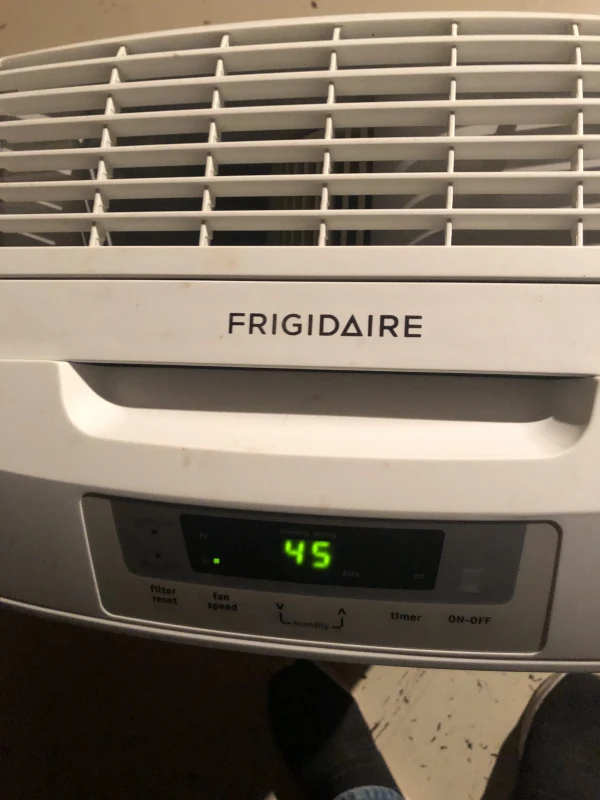

    Operating Instructions Operating Instructions (continued) 3. After a few days when the Relative Humidity has declined, press the HUMIDITY buttons to choose a value between 35% to 85%, so the room is kept at a comfortable humidity. Pressing the buttons will change the humidity selection in 5% increments.

  • Page 6: Fault Codes

    7. To shut the unit down, press the ON/OFF button. Fault Codes 1. If the display reads "AS" or "ES" , a sensor has failed. Contact your Authorized Frigidaire Service Center. 2009 Electrolux Home Products, Inc. All rights reserved.

  • Page 7: Removing Collected Water

    Operating Instructions Removing Collected Water 1. Emptying the Bucket: a. When the bucket is full, the unit will shut down and the BUCKET FULL indicator will illuminate. b. Do not move the unit at this time otherwise water may spill on the floor. c.

  • Page 8: Care And Cleaning, Operating Instructions, Storage

    Operating Instructions, Care and Cleaning & Storage Removing Collected Water (continued) 2. Continuous Drainage: a. For continuous drainage operation, you will need a garden hose and a drain nearby to discharge the water into. b. Unscrew the drain cap on the back side of the unit. (fig.1) c.

  • Page 9: Before You Call, Troubleshooting

    Room Temperature is too low. All models will operate satisfactorily at temperatures greater than 41 °F (5 °C). FAN NOISE. Air is moving through the dehumidifier. This is a normal sound. If These Solutions Fail, Call 1-800-944-9044 For Frigidaire Service. 2009 Electrolux Home Products, Inc. All rights reserved.

  • Page 10: Major Appliance Limited Warranty

    Major Appliance Limited Warranty Your appliance is covered by a limited one-year warranty and a limited 2-5 year warranty on the sealed system (the compressor, condenser, evaporator and tubing). For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.
