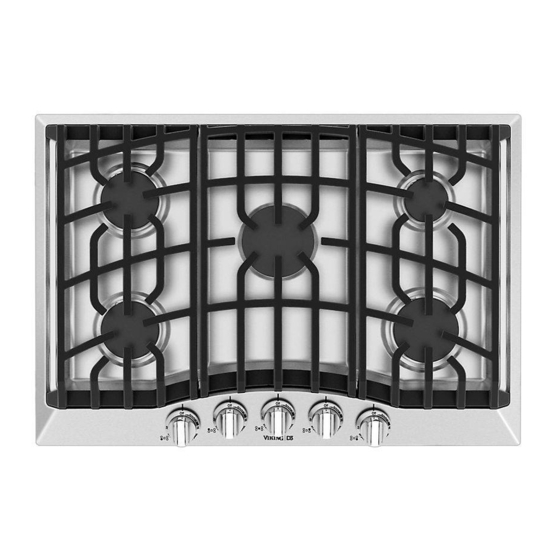

Viking RDGSU2005B Installation Manual
D3 series built-in gas cooktops
Hide thumbs
Also See for RDGSU2005B:
- Manual (36 pages) ,
- Installation instructions (2 pages) ,
- Specifications (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Viking RDGSU2005B
Summary of Contents for Viking RDGSU2005B

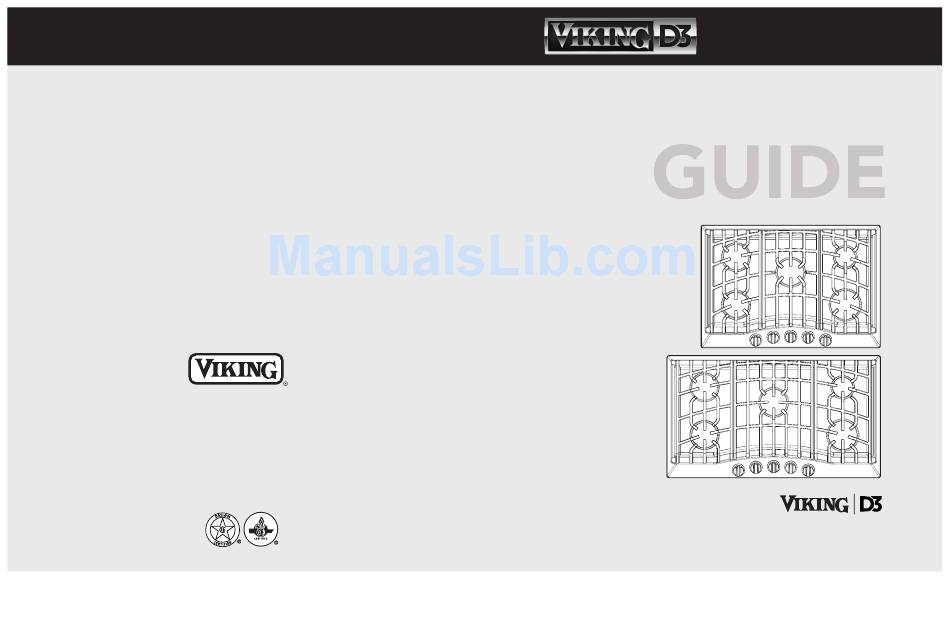

- Page 1 Installation Viking Range Corporation 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-VIKING1 (845-4641) or visit the Viking Website at vikingrange.com Built-In Gas Cooktops (121012) F20964B EN...
-
Page 2: Table Of Contents
Table of Contents IMPORTANT – Please Read and Follow Warnings & Important Safety Instructions _______________________________________________3 Your safety and the safety of others is • Before beginning, please read these Dimensions _________________________________________________________________________6 very important. instructions completely and carefully. Specifications _______________________________________________________________________7 Cutout Dimensions __________________________________________________________________8 We have provided many important safety •... - Page 3 IMPORTANT – IMPORTANT – Please Read and Follow Please Read and Follow DANGER WARNING WARNING FIRE/EXPLOSION CHEMICAL HAZARD ELECTRICAL GROUNDING HAZARD INSTRUCTIONS If not installed, operated and maintained in accordance IF THE INFORMATION IN The cooktop must be electrically grounded with the manufacturer’s THIS MANUAL IS NOT in accordance with local codes or, in the...
-
Page 4: Dimensions
Dimensions Specifications 30” Gas Cooktop D3 Gas Cooktops Description RDGSU200 RDGSU260 Overall width 30-3/4” (78.1 cm) 36-3/4” (93.3 cm) - 3 / ( 7 8 4 ” Overall height from bottom 4-3/8” (11.1 cm) to top of grate Overall depth from rear 21”... -
Page 5: Cutout Dimensions
Cutout Dimensions Cutout Dimensions (RDGSU Cooktop over Single Electric Oven) ” m ( 9 1 i n . - 1 / ( 7 1 8 ” RDGSU200 - 1 / 4 ” 29-1/4” (74.3 cm) min. to ( 3 6 . -
Page 6: Clearance Dimensions (Proximity To Cabinets)
Clearance Dimensions Clearance Dimensions (Proximity to Cabinets) (Wood/Composite Overlay) The bottom of a standard hood should be Proximity to Side Cabinet Installation Minimum Clearances from Adjacent 30” (76.2 cm) min. to 36” (91.4 cm) max. Combustible Construction / C o •... -
Page 7: Electrical & Gas Requirements
Electrical & Gas Requirements Electrical & Gas Requirements Electrical Requirements Manual shut-off valve: Rigid Connections: Initial Ignition of Burners There is no connection necessary beyond • The installer-supplied valve must be • Incoming gas is brought from an intake All cooktops are tested before leaving the plugging the unit into a polarized, installed in the gas service line ahead of pipe (not supplied) at the rear of the unit... -
Page 8: General Information
Installation General Information Electrical Requirement CAUTION Normal grounded household current, 120 volts, 60 Hz, 15 amps, single phase. BURN HAZARD Electrical installation should comply with The use of cabinets for storage above the national and local codes. appliance may result in a potential burn Air Supply and Ventilation hazard. -
Page 9: Bracket Installation
Bracket Installation Final Preparation • New units are cleaned at the factory • All stainless steel parts should be wiped to remove any visible signs of dirt, oil, regularly with hot, soapy water grease, etc. remaining from the and with a liquid cleanser designed for manufacturing process. -
Page 10: Service & Registration
Only authorized replacement parts may be used in performing service on the appliance. All servicing should be referred to a qualified technician. Contact Viking Range Corporation, 1-888-VIKING1 (845-4641), for the nearest service parts distributor in your area or write to:...
