11. Turn the deskside unit on end with the opening for the
disk drives facing up.

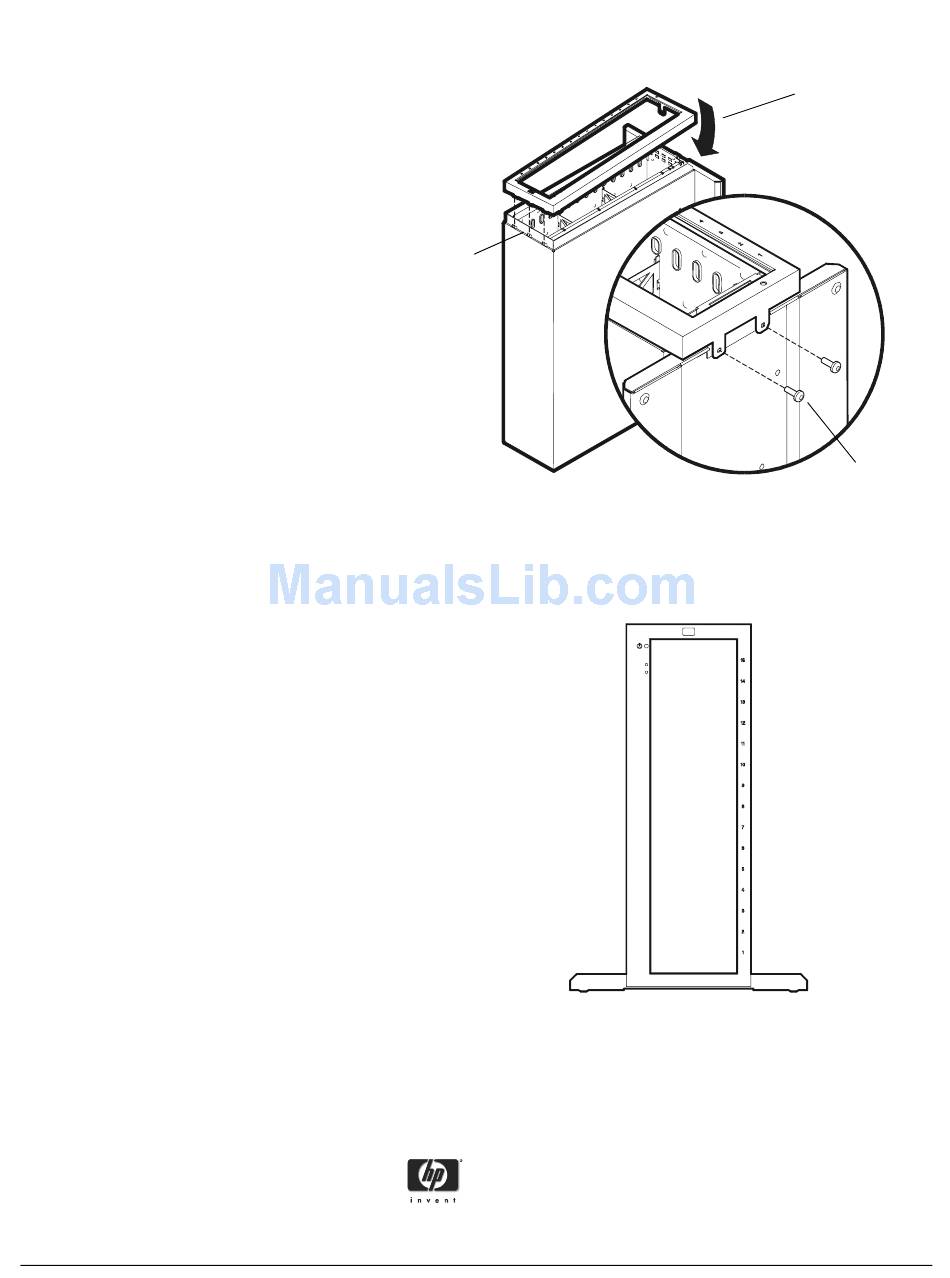

12. Install the end cap (Figure 6).
a. Insert the end cap into the tabs located at the top
front of the cover.
b. Rotate the end cap down over the base.
c. Using the T25 driver, install the remaining two M5
screws into the end cap and tighten the screws.
13. Rotate the cabinet to an upright position with the
front facing outward (Figure 7).
14. Position the unit on the floor in preparation for
installing the disk drives and power modules.
15. Using the Quick Start Guide, complete the array
installation.
a. Install the disk drives and power modules.
b. Cable up the array.
c. Turn it on.
d. Change the FC loop IDs.
e. Observe the power-on status.
