HP StorageWorks 7110 - Virtual Array Instructions page 3

NOTE: Before proceeding, notice that there are two
locating pins inside the bottom of the cover. See
locating pins in Figure 4.

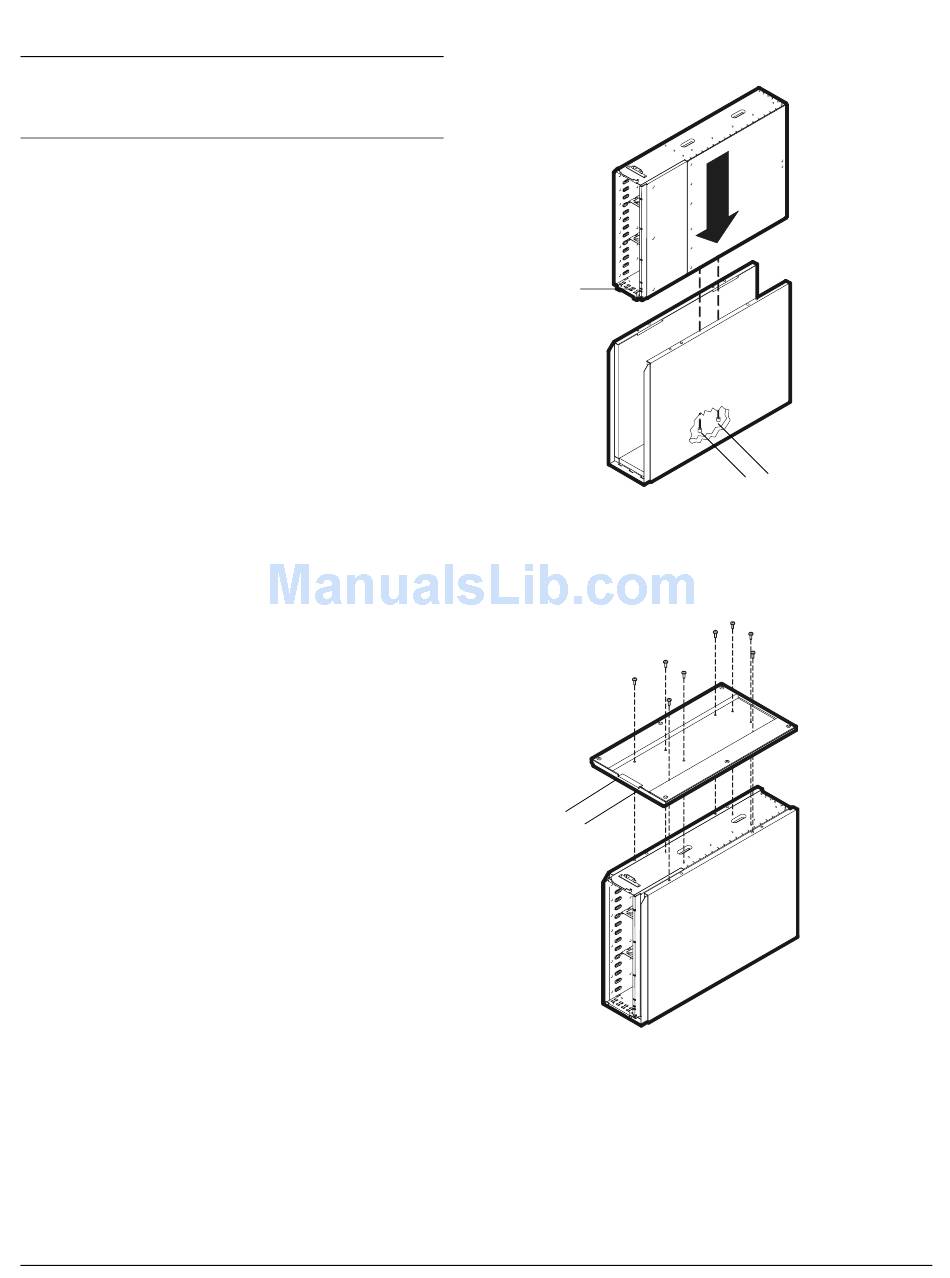

7. With the power button down, lower the array chassis
into the cover.
8. Be sure that the rear of the array chassis is flush with
the rear side of the cover, then slide it down and over
the two locating pins (Figure 4).
9. With the cutout on the base facing the front, lower the
base onto the array chassis. Then slide the four locator
pins on the base into the four holes on the outside of
the array chassis (Figure 5).
10. Using the Torx T25 driver, install and tighten the eight
M5 screws on the base (Figure 5).
a. Secure the base to the
screws.
b. Secure the base to the
M5 screws.
with four of the M5
cover
with four of the
array chassis
Power Button
Figure 4
Front slots
on base
Figure 5
Locating pins
3
