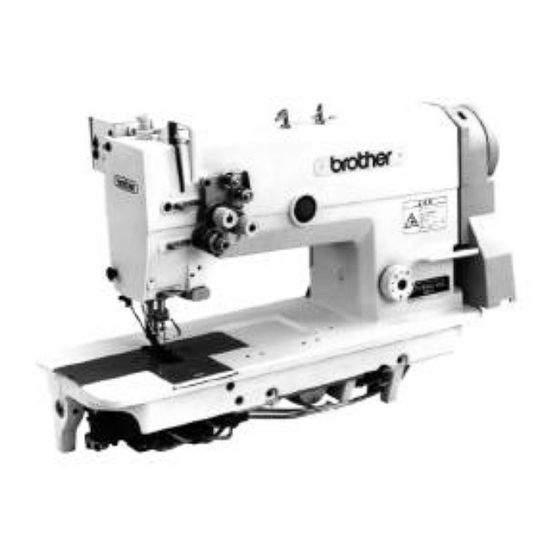

Brother LT2-B872 MKII Specifications

Twin needle needle feed lock stitcher with large hook (and threadtrimmer).
Hide thumbs


Advertisement

LT2 B872Mark II
Twin Needle Needle Feed Lock
Stitcher with Large Hook
(and Thread Trimmer)

Specifications

Application
Max. speed
Max. .stitch length
Needle bar stroke
Thread take-up stroke
Height of
Presser foot
Auto-presser bar lifter
Height of feed dog
Needle
Hook
Needle feed mechanism
Thread trimmer
Thread wiper
Quick reverse
Automatic presser bar lifter
For medium materials
Manual
Knee
3
3,000 rpm
7 mm
33.4 mm
62.4 mm
7 mm
13 mm (With thread wiper : 10 mm)
8 mm
1 mm
DP 5 #11 #22
Horizontal large rotary hook (vertical axis)
Standard
400
Scissors type (Solenoid)
Solenoid type
Solenoid type
2000.7
5
For heavy materials
900
Solenoid type
LT2 B872 Mark II 1/6

Advertisement

Table of Contents

   Related Manuals for Brother LT2-B872 MKII

   Summary of Contents for Brother LT2-B872 MKII

  • Page 1: Specifications

    LT2 B872Mark II Twin Needle Needle Feed Lock Stitcher with Large Hook (and Thread Trimmer) Specifications Application For medium materials For heavy materials Max. speed 3,000 rpm Max. .stitch length 7 mm Needle bar stroke 33.4 mm Thread take-up stroke 62.4 mm Manual 7 mm...
  • Page 2 B872 Mark II (For Standard) For normal *In case of using over 1 1 / 2" (38.1 mm) gauge parts, it is necessary to make special machining on the arm-bed. The specification with a maximum stitch width of 68mm is available. Please consult your Brother representative concerning delivery date and price.
  • Page 3 B872 Mark II (For Standard) ( 6) : For heavy materials *-6 (for heavy materials) is a specification between –5 (for heavy materials) and –7 (for extra heavy materials). *The feed dog is different from normal parts. *The ¡ symbol is a presser foot assembly with finger guard. Needle Gauge Needle clamp assy Feed dog...
  • Page 4: Option Parts

    Option parts *The presser foot assembly is different from normal parts. *The presser foot assembly with guide should be used with a maximum feed pitch of 4 mm or less. Name of parts Needle gauge Presser foot assy (inch) (mm) 1 / 8 (3.2) 149311 001...
  • Page 5 B872 Mark II (For Thread trimmer) For normal *The thread trimming fixed knife ( part No. S07527 001) and the installation screw (part No. 148539 101) are not provided with the needle plate, so they must be ordered separately if required. *In case of using over 1 1 / 2"...
  • Page 6 B872 Mark II (For Thread trimmer) ( 6) : For heavy materials *-6 (for heavy materials) is a specification between –5 (for heavy materials) and –7 (for extra heavy materials). *The feed dog is different from normal parts. Needle gauge Needle clamp assy Needle plate Feed dog...
