Instruction Manual
LS2-B891
LT2-B892

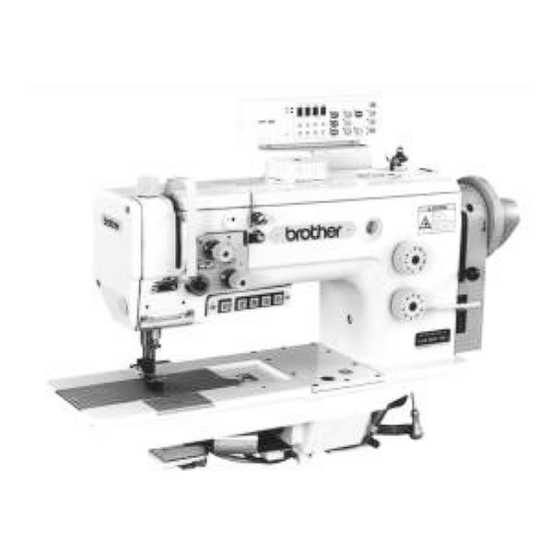

Single Needle Unison Feed Lock Stitcher
Single Needle Unison Feed Lock Stitcher
with Thread Trimmer
Twin Needle Unison Feed Lock Stitcher
Twin Needle Unison Feed Lock Stitcher
with Thread Trimmer
Specifications
No. of needles
LS2-B891
1
LT2-B892
2
LS2-B891- 05, LT2-B892- 05
Thread trimmer
Quick reverse switch
Alternating presser foot
movement change switch
Auto backtack select switch
Needle up switch
Stitch length change switch
Automatic presser foot lifter
F-40 operation panel
Needle gauge
Height of presser foot
(mm)
-
Manual 9
Knee 16
Auto 16 (-705)
3, 4, 6, 8, 10, 12
Sewing speed range (-705)
0
7
¡
Alternating presser
Foot movement amount
1.0 – 2.4 mm
¡
2.5 – 3.9 mm
4.0 – 4.7 mm
4.8 – 7.0 mm
¡
¡
¡
¡
¡
¡
2000.7
Max. stitch length
(mm)
(mm)
9
(Both forward and
reverse)
Stitch length
Max. sewing speed
(rpm)
3,500
6 mm and
6 – 9 mm
less
3,500 rpm
2,000 rpm
3,000 rpm
2,000 rpm
2,500 rpm
2,000 rpm
2,000 rpm
2,000 rpm
LS2-B891, LT2-B892 1/11
