Palm Rest Installation
Connect the touchpad FFC with the colored side up to the touchpad board connector. Flip the
1.
connector clip to secure the cable in place.
Secure the adhesive tape covering the touchpad cable connector.
2.
Service and Maintenance

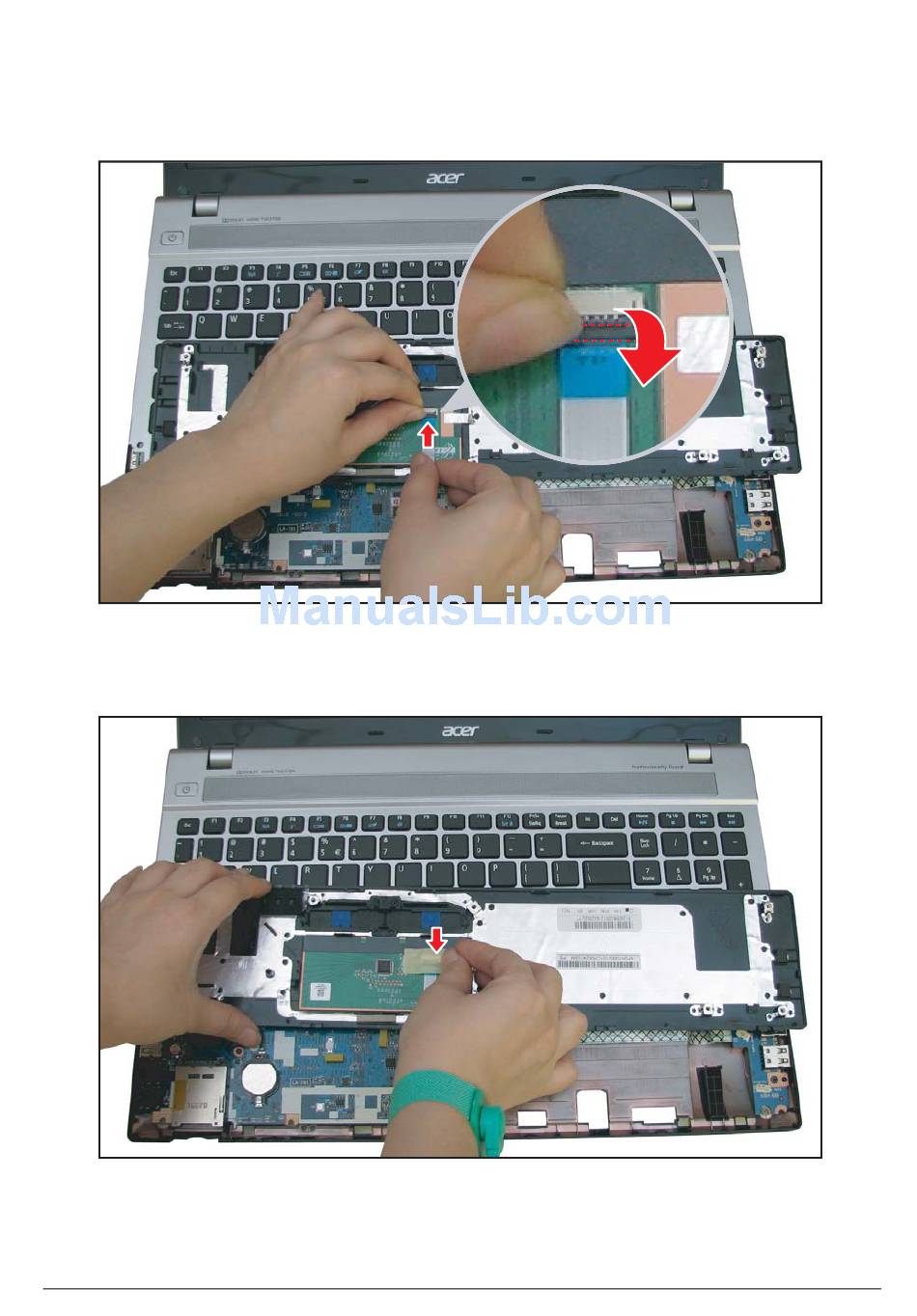

Figure 3:43. Connecting the Touchpad FFC
Figure 3:44. Attaching the Adhesive Tape
3-33
